980 DP Video Generator - User Guide
The 980 DP Video Analyzer enables you to run a test on a DP cable using a pseudo-random noise (PRN) test
pattern. The PRN test pattern was designed to maximize the change in pixel values between adjacent pixels.

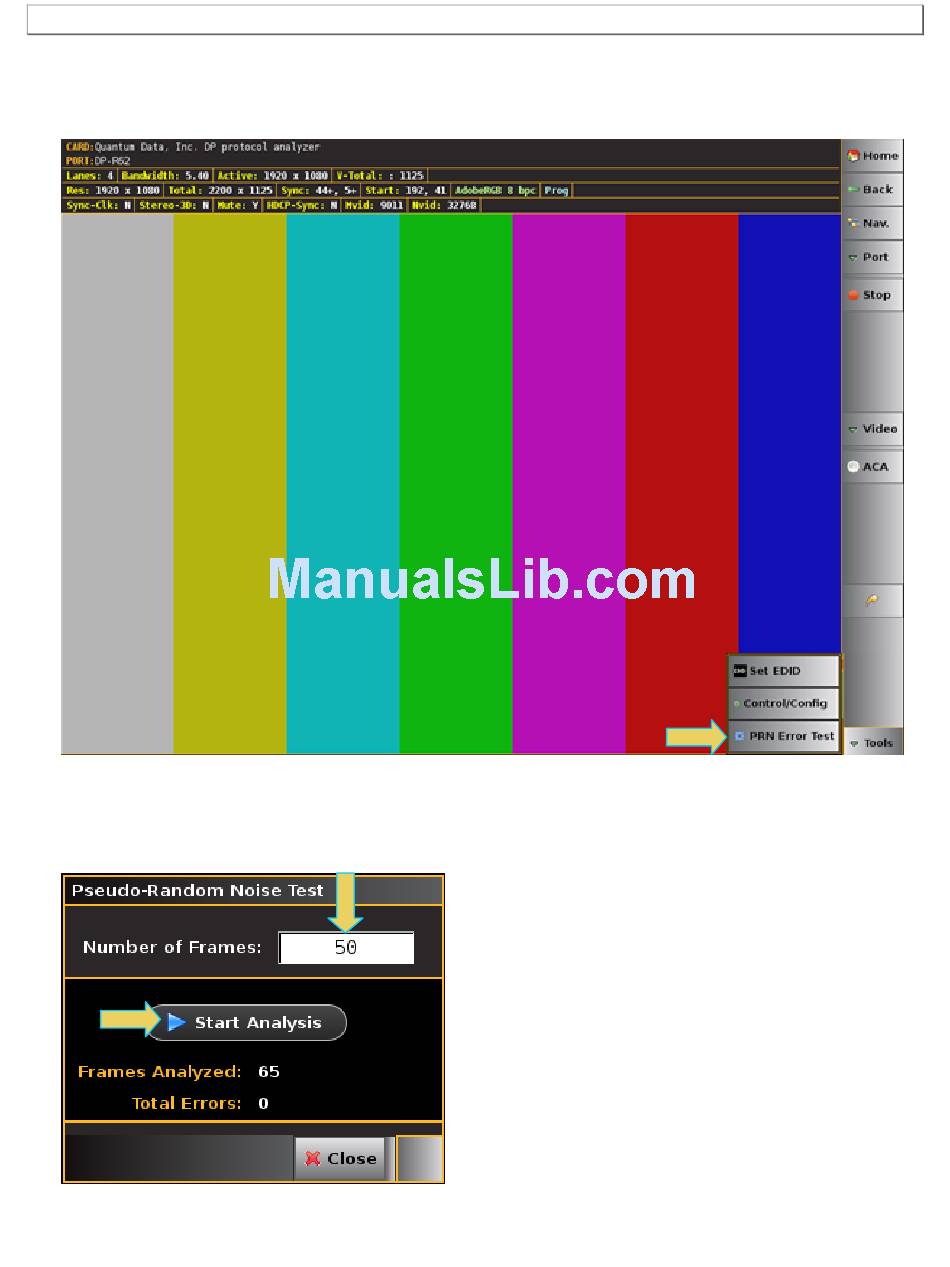

1. Select PRN Error Test from the Tools fly-out menu as indicated below.
The PRN dialog box appears as shown below.
2. Select the number of frames and click on the Start Analysis activation button to initiate the test.
Note: The number of frames specified may not match the number of frames tested.
