1. About the 980 DP Video Generator Module

This chapter provides an overview of features of the 980 DP Video Generator module and the 980 GUI Manager.

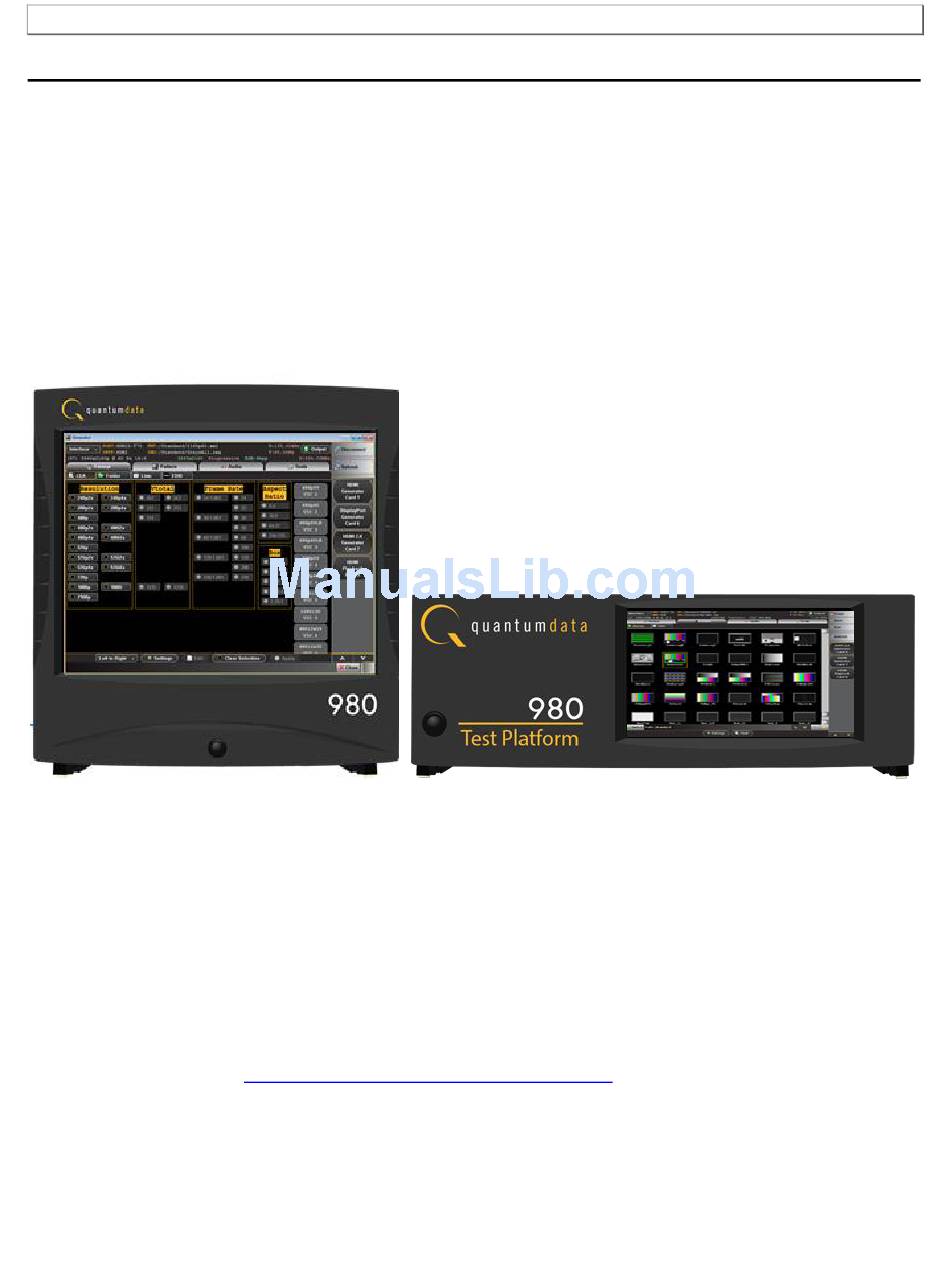

The module can be equipped in either of the following 980 Advanced Test Platforms:
1) The 980B Advanced Test Platform – 5-slot chassis with a 15 inch touch display
2) The 980R Advanced Test Platform - 5-slot rack mountable chassis with a 7 inch touch display
The 980 DP Video Generator module supports video pattern testing and audio testing of DP 1.2 capable displays
at 5.4Gb/s link rates per 4 lanes. It is equipped with two (2) Tx ports and an Rx port. The two DP Tx ports are both
active simultaneously which enables you to test multiple sinks and displays at the same time. The Rx port is for the
optional DP analyzer for testing DisplayPort source devices up to 5.4Gb/s link rates per 4 lanes.
The 980 GUI Manager is a PC application to manage and use the 980 DP Video Generator module.
1.1

Scope of this User Guide

This User Guide provides descriptive and procedural information on the 980 DP Video Generator module for
testing DP display devices.
Although you can operate the 980 DP Video Generator module through the "embedded GUI," most of the
examples used in the procedures in this User Guide are taken from the external standalone PC 980 GUI Manager.
The procedures are nearly identical between the embedded GUI running through the 980B/980R front panel
display and the external standalone PC application but the look and feel is slightly different.
There are separate User Guides for the other 980B/980R modules. The following is a list of the User Guides
available with the 980B/980R and its modules. These are available from the downloads and product web pages of
the Quantum Data website http://www.quantumdata.com/products/980.asp:
The following is a list of the User Guides available for the 980 systems:
