980 DP Video Generator - User Guide

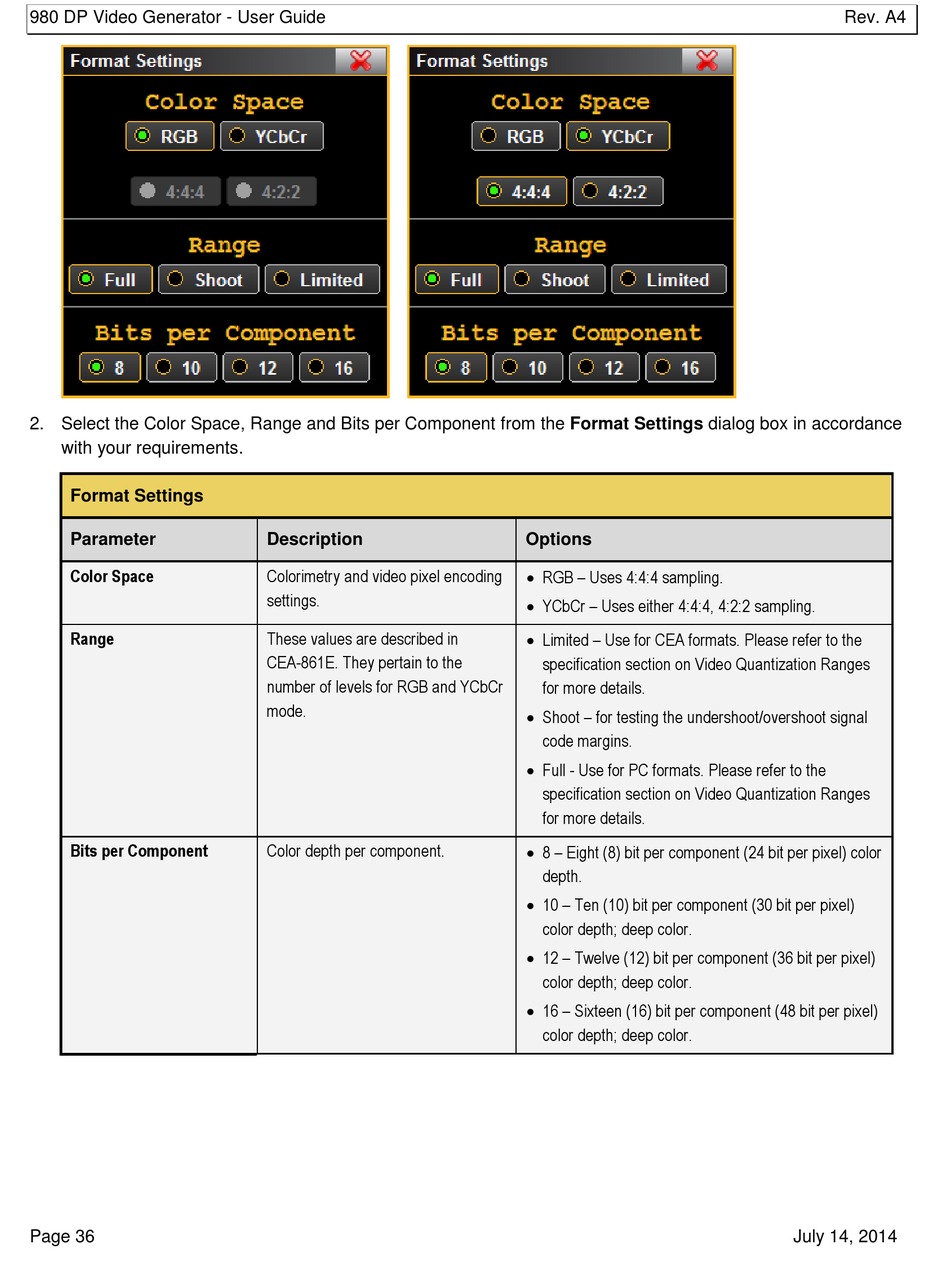

2. Select the Color Space, Range and Bits per Component from the Format Settings dialog box in accordance
with your requirements.
Format Settings
Parameter
Color Space
Range
Bits per Component
Page 36
Description
Colorimetry and video pixel encoding
settings.
These values are described in
CEA-861E. They pertain to the
number of levels for RGB and YCbCr
mode.
Color depth per component.
Options
 RGB – Uses 4:4:4 sampling.
 YCbCr – Uses either 4:4:4, 4:2:2 sampling.
 Limited – Use for CEA formats. Please refer to the
specification section on Video Quantization Ranges
for more details.
 Shoot – for testing the undershoot/overshoot signal
code margins.
 Full - Use for PC formats. Please refer to the
specification section on Video Quantization Ranges
for more details.
 8 – Eight (8) bit per component (24 bit per pixel) color
depth.
 10 – Ten (10) bit per component (30 bit per pixel)
color depth; deep color.
 12 – Twelve (12) bit per component (36 bit per pixel)
color depth; deep color.
 16 – Sixteen (16) bit per component (48 bit per pixel)
color depth; deep color.
