980 DP Video Generator - User Guide
11.108

MnslCLR

11.108.1
Description

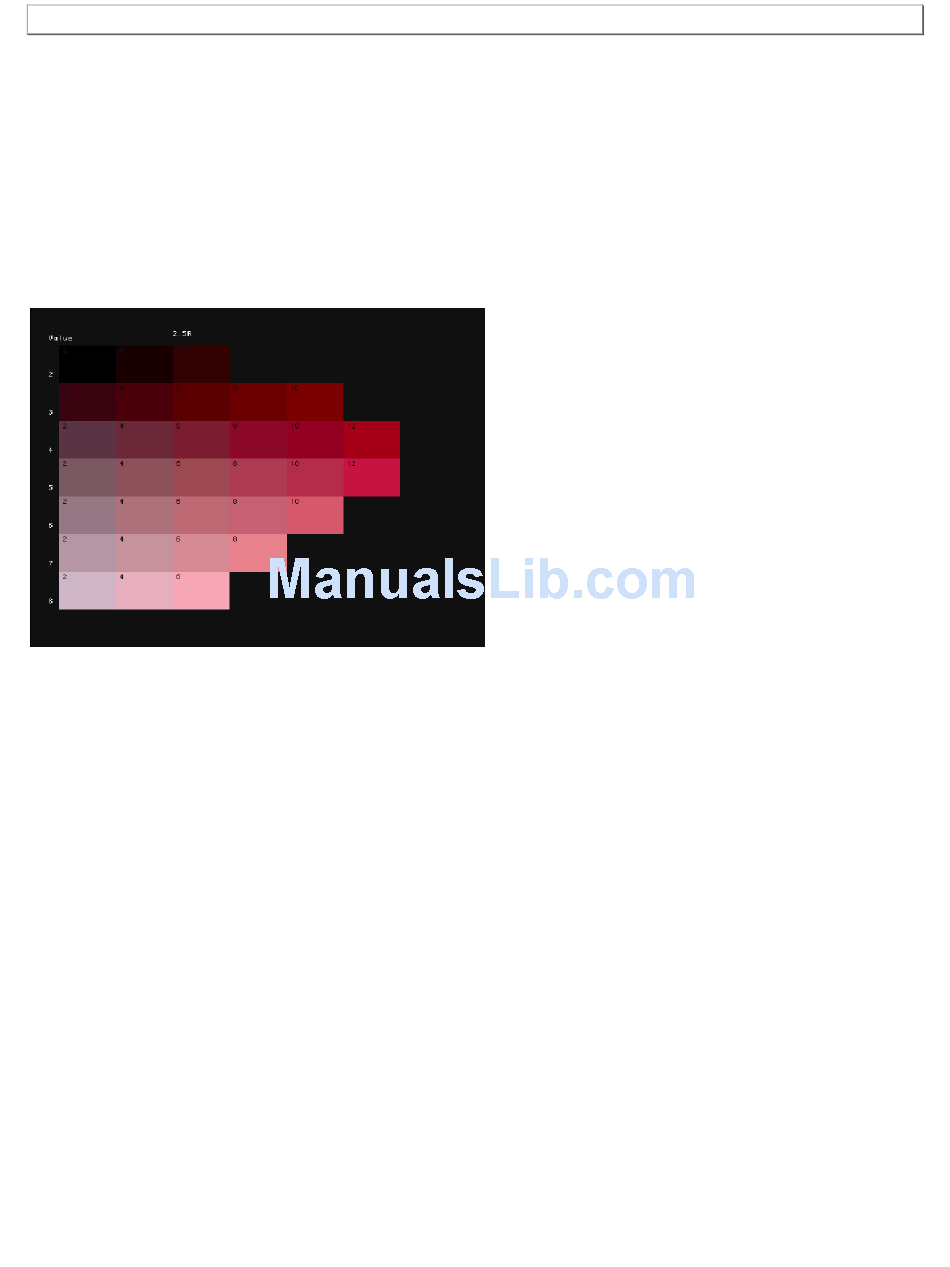

There are a series of these images (40 in total) that are accessible as sub images through the 882E front panel.
Each hue in the MnslCLR image set has 4 sub hues, labeled 2.5, 5, 7.5 and 10, that represent a hue as it traverses
around the perimeter of the diagram above and transitions into the adjacent hues. Each such sub image depicts
the chroma and value variances of one of these sub hues. Each sub image provides a color block for each chroma
and value level for that sub hue. The value varies along the vertical axis and the chroma varies along the horizontal
axis.
Page 303
Rev. A4
July 14, 2014
