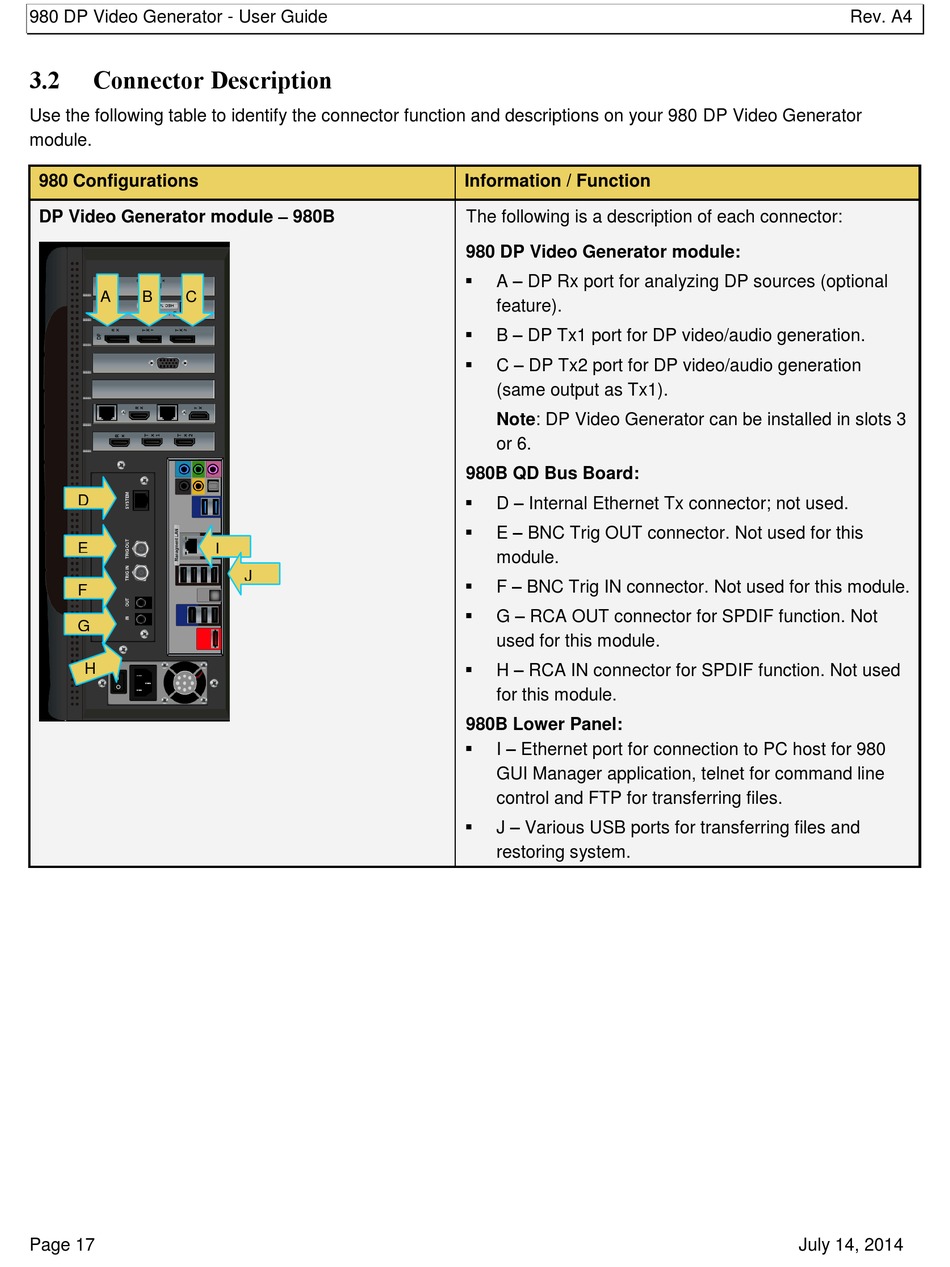

Connector Description

Use the following table to identify the connector function and descriptions on your 980 DP Video Generator
module.
980 Configurations
DP Video Generator module – 980B
A B C
D
E
F
G
H
Page 17
I
J
Information / Function
The following is a description of each connector:
980 DP Video Generator module:
 A – DP Rx port for analyzing DP sources (optional
feature).
 B – DP Tx1 port for DP video/audio generation.
 C – DP Tx2 port for DP video/audio generation
(same output as Tx1).
Note: DP Video Generator can be installed in slots 3
or 6.
980B QD Bus Board:
 D – Internal Ethernet Tx connector; not used.
 E – BNC Trig OUT connector. Not used for this
module.
 F – BNC Trig IN connector. Not used for this module.
 G – RCA OUT connector for SPDIF function. Not
used for this module.
 H – RCA IN connector for SPDIF function. Not used
for this module.
980B Lower Panel:
 I – Ethernet port for connection to PC host for 980
GUI Manager application, telnet for command line
control and FTP for transferring files.
 J – Various USB ports for transferring files and
restoring system.
