980 DP Video Generator - User Guide
11.146

Ramp_B, Ramp_G, and Ramp_R

11.146.1 Description

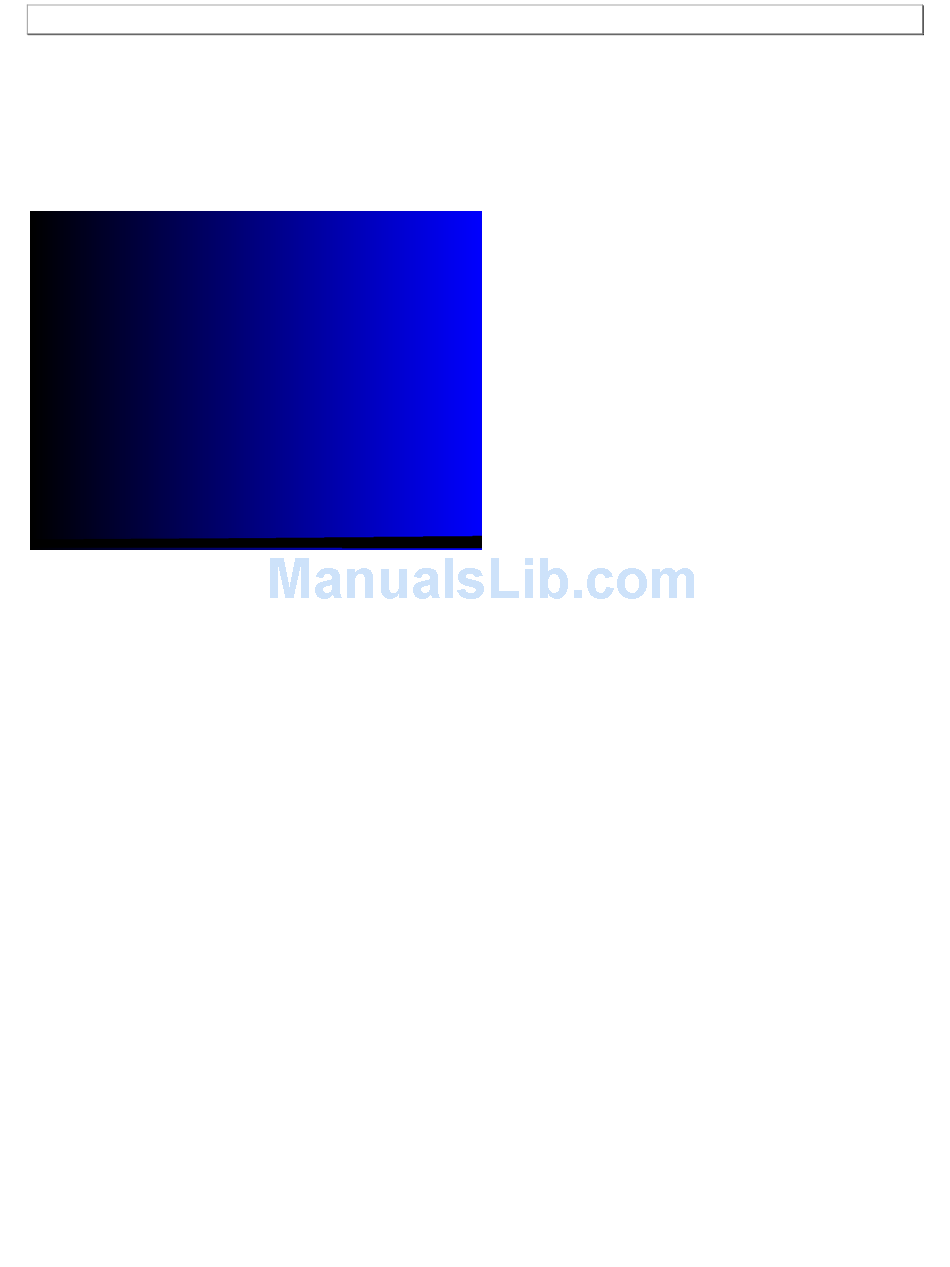

The active video area goes from full black (+7.5 IRE) at the left edge of the screen to full blue (_B), green (_G), or
red (_R) at the right edge. The Ramp_B image is shown below.
11.146.2 Test
Video gain linearity.
11.146.3 Method
When viewed on a TV screen, the full range of grays should be visible. There should be no color shifts visible.
Page 346
Rev. A4
July 14, 2014
