980 DP Video Generator - User Guide

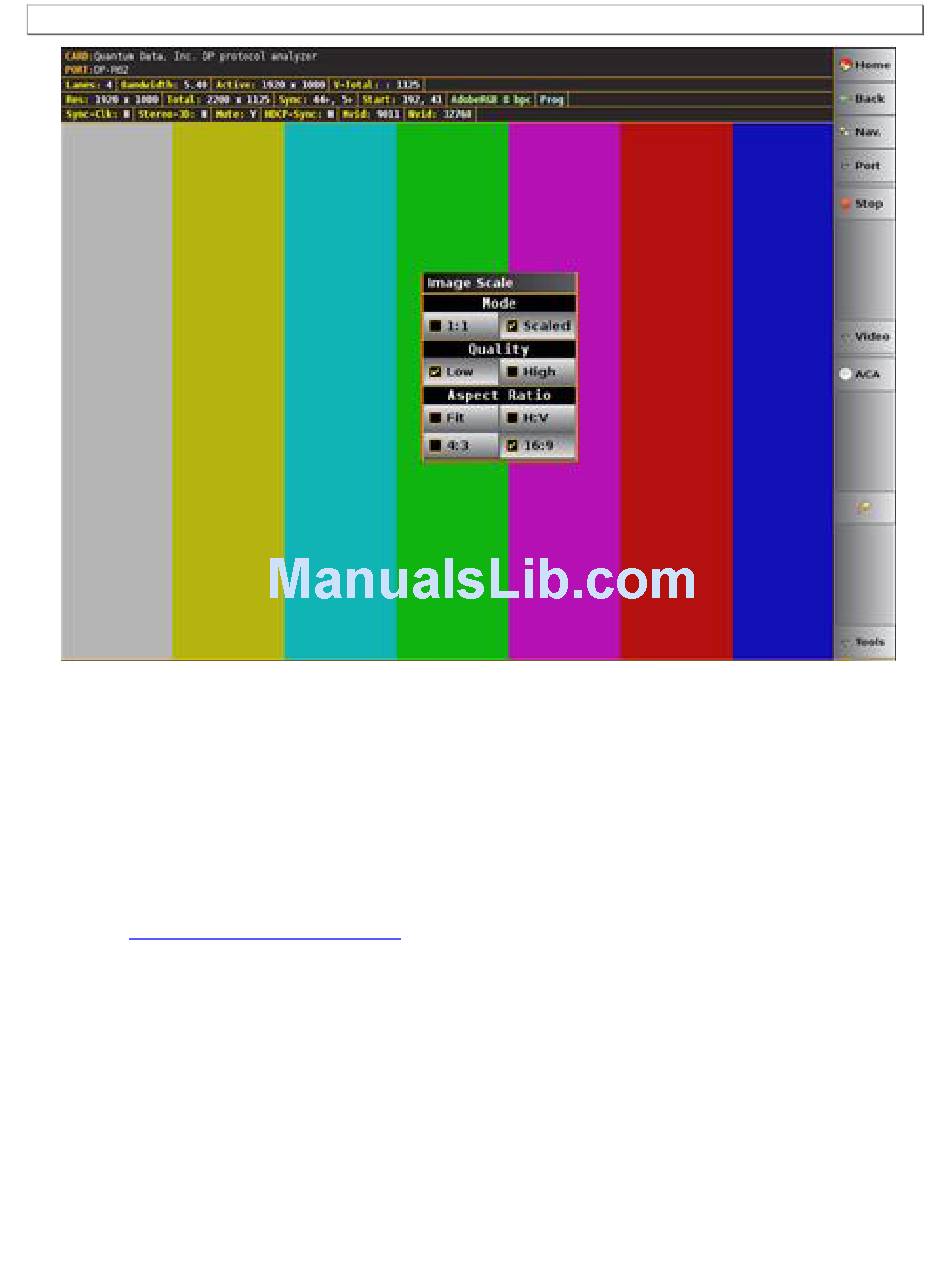

2. Set the size to either 1:1 or Scaled. The 1:1 setting means that the image appears in its true size. In this mode
the image can be moved by dragging to view all areas of the image. The Scaled setting means that the image
appears scaled to fit within the viewing area of the 980's embedded display.
Note: In order to set the Quality and the Aspect Ratio you have to set the size to 1:1.
8.5.4 Setting the EDID for the Rx port
The 980 DP Video Analyzer enables you to set Rx ports EDID for emulation. The 980 GUI provides an EDID Editor
enabling you to create your own custom EDIDs. You can also capture EDIDs from the 980 DP Video Generator's
Tx ports and save them for testing on the Rx port. Also note that Quantum Data provides a free EDID Library
available at: http://www.quantumdata.com/edid/.
1. Access the Set EDID dialog box from the Tools fly-out menu.
