Ramp - Quantum Data 980 DP User Manual

980 DP Video Generator - User Guide
11.142

Ramp

11.142.1 Description

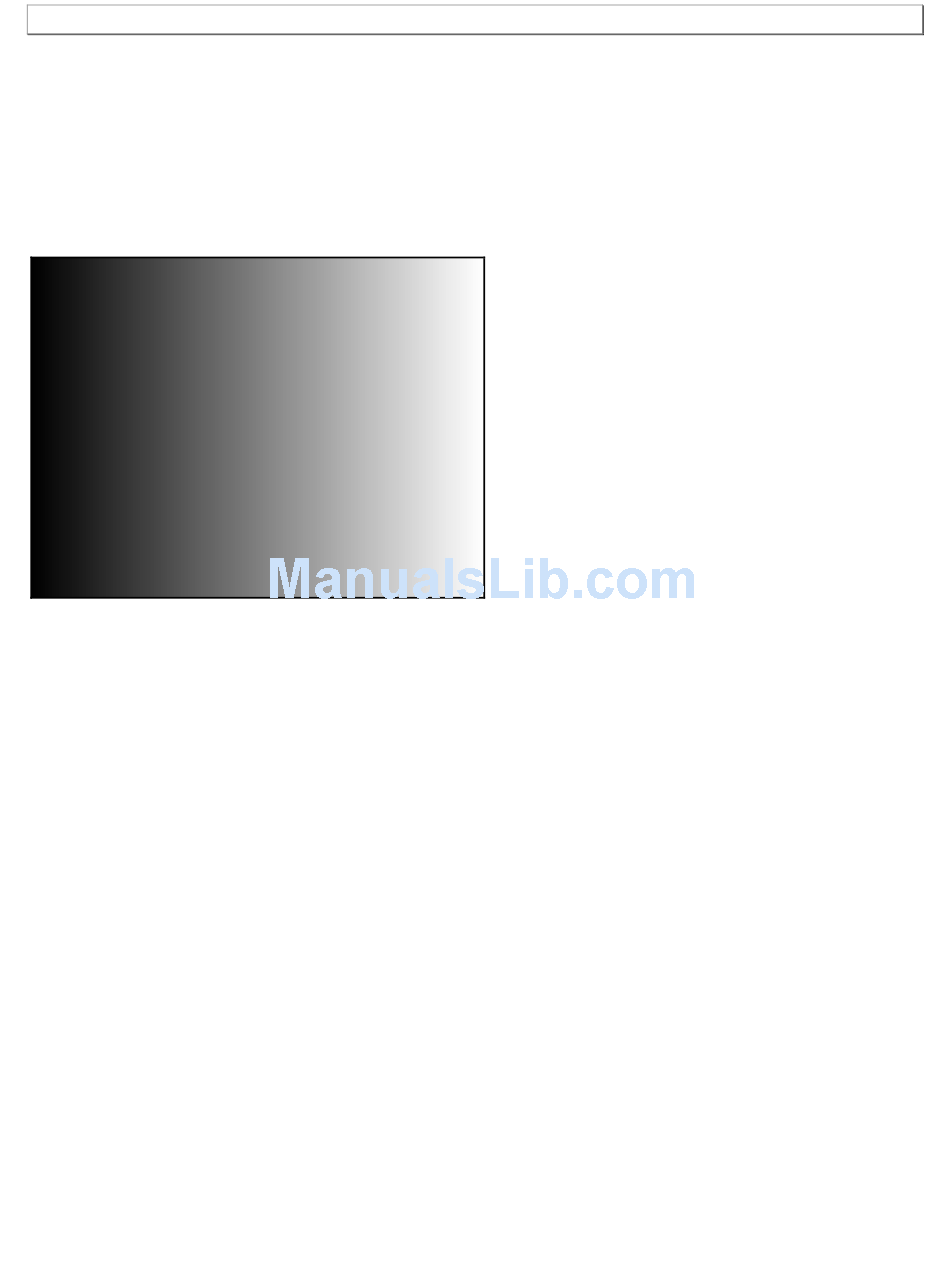

This image provides an active video area starting from full black (+7.5 IRE) at one edge of the screen to full white
(+100 IRE) at opposite end of the screen.
There are 4 versions of this image—one for each edge of the display. When selected, this image is displayed.
You can access additional versions of this image through the Settings/Rendition dialog box.
