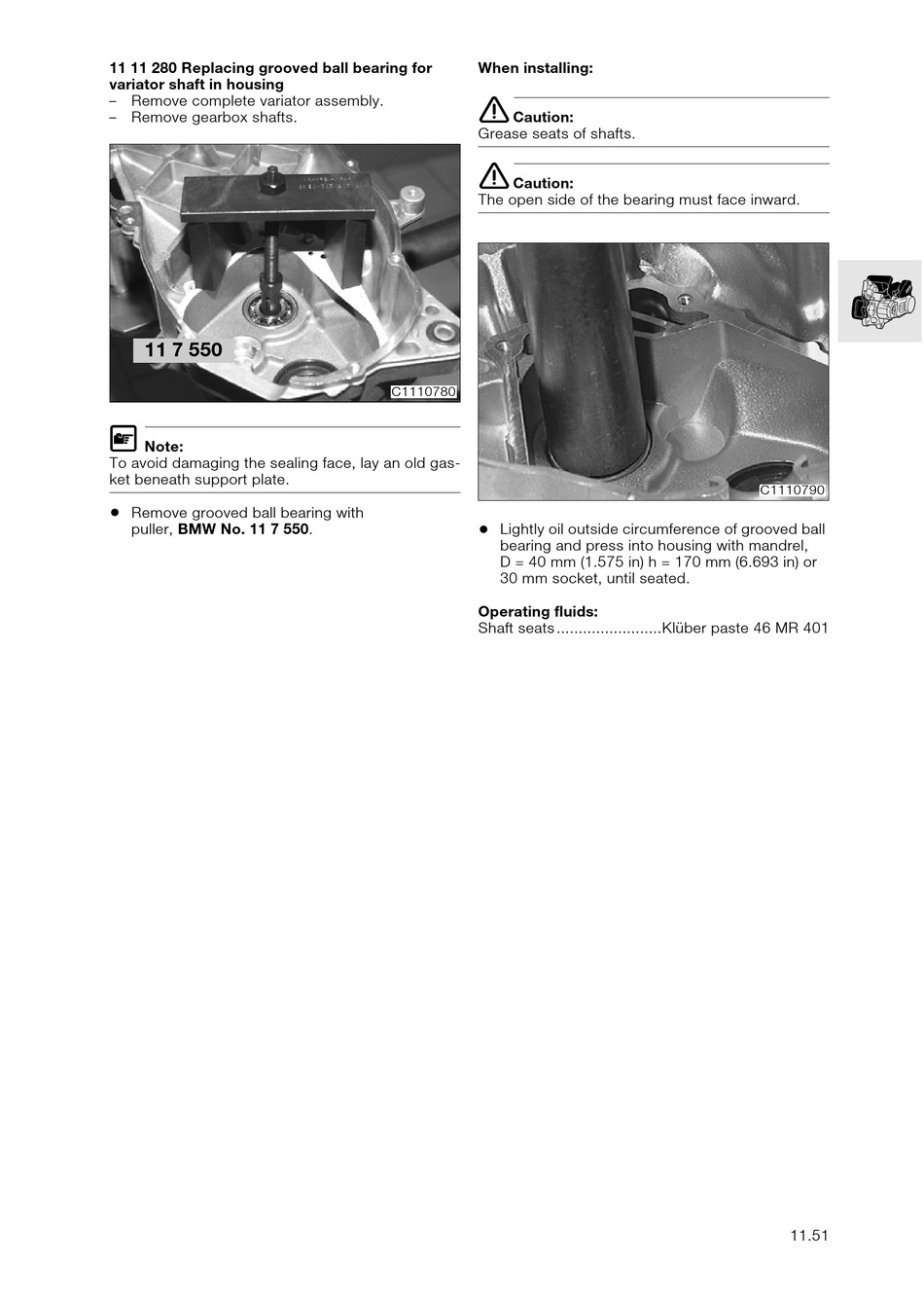

11 11 280 Replacing grooved ball bearing for
variator shaft in housing
– Remove complete variator assembly.
– Remove gearbox shafts.
11 7 550
L
Note:
To avoid damaging the sealing face, lay an old gas-
ket beneath support plate.
•
Remove grooved ball bearing with
puller, BMW No. 11 7 550.
When installing:
e
Caution:
Grease seats of shafts.
e
Caution:
The open side of the bearing must face inward.
C1110780
•
Lightly oil outside circumference of grooved ball
bearing and press into housing with mandrel,
D = 40 mm (1.575 in) h = 170 mm (6.693 in) or
30 mm socket, until seated.
Operating fluids:
Shaft seats ........................Klüber paste 46 MR 401
C1110790
11.51
