11.4 Installation

Intermec EasyCoder 601 XP – Service Manual Ed. 3
• Turn off the main switch and remove the power cord.
• Open the printer's front hatch.
• Hold the printer firmly and press the front hatch sideways to the
left as to disengage the hinges.
• Remove the hatch completely.

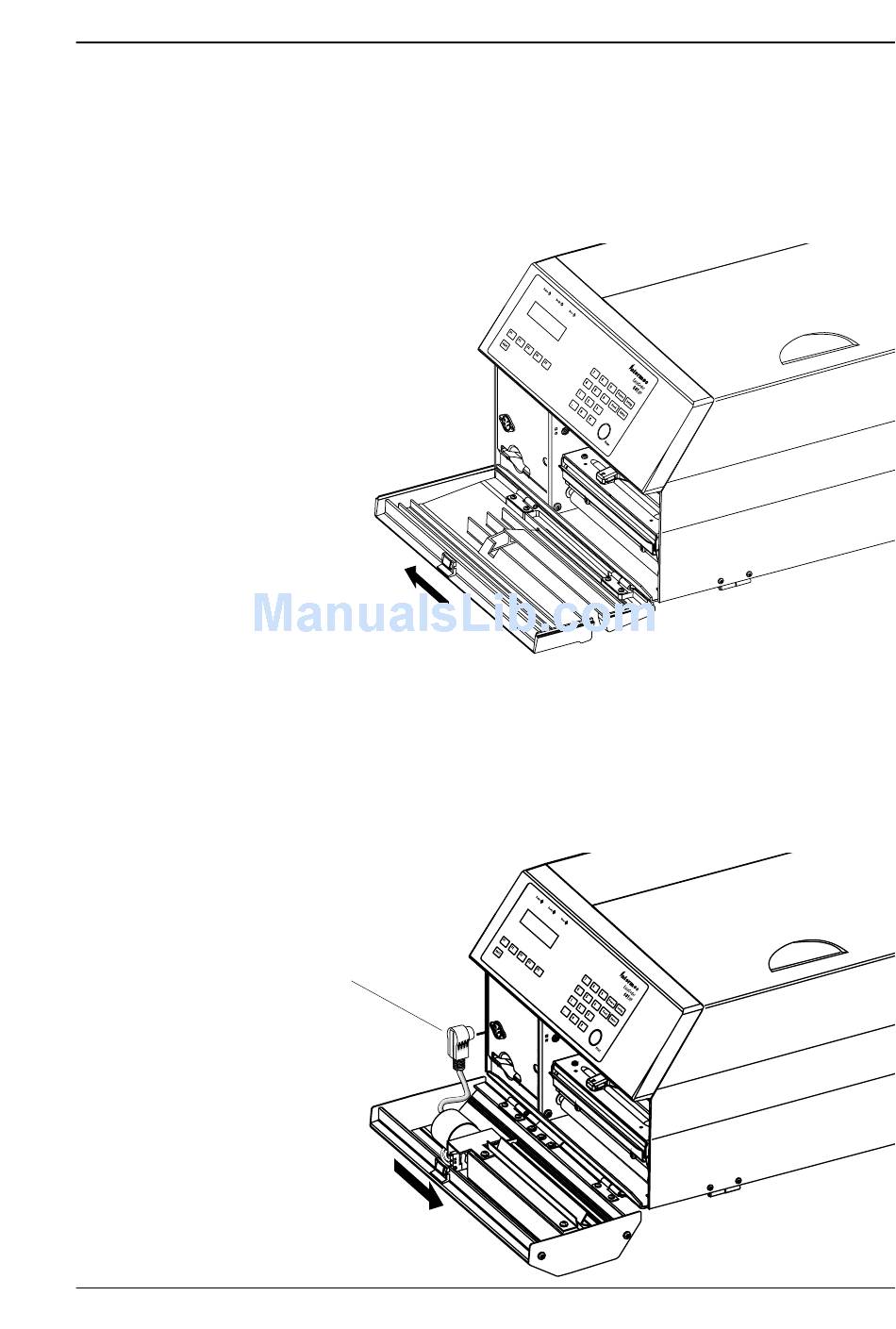

Press Sideways
• If the printer is fitted with a label-taken sensor (LTS), it has to be
removed before the cutter can be fitted, see chapter 10.
• Fit the cutter unit to the vacant hinges. Make sure that the locking
plate snaps into the groove of the right-hand hinge and that the
angled plate at the bottom of the cutter is inserted under the
printer's bottom plate.
• Fit the cable from the cutter unit into the DIN connector on the
printer's front.
DIN Connector
Press Sideways
