Intermec EasyCoder 601 XP Service Manual page 41

Chapter 8 Print Unit
8.1 Description, cont'd.

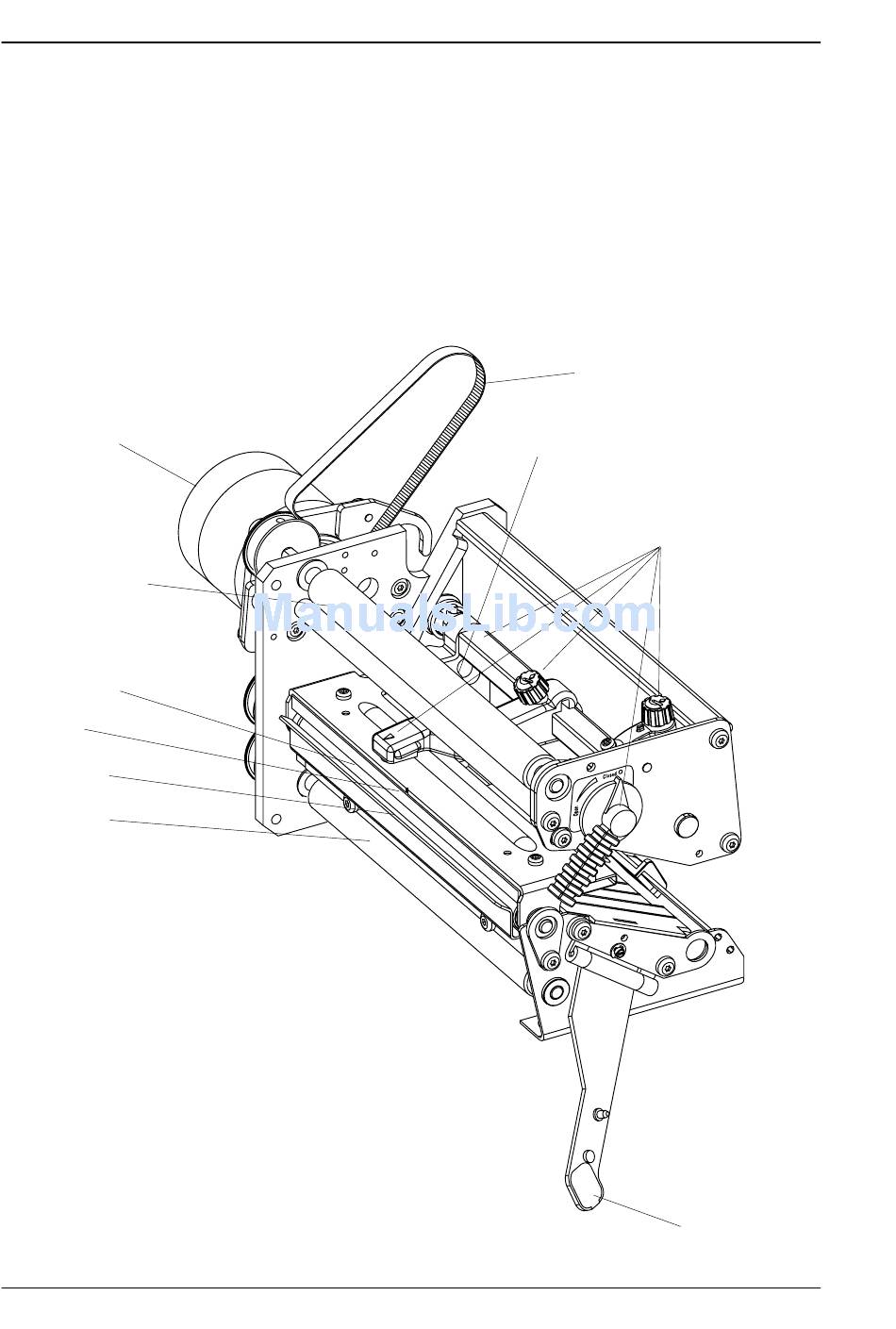

Stepper Motor
Ribbon Return Roller
Pressing Roller
Printhead
Tear-Off Edge
Rewind Roller
40
The print unit is a self-contained module and attached to the printer's
centre-line wall by means of four #T20 Torx screws. There are also
a number of cables running from the print mechanism to the CPU
board (see chapter 15.3), which are not illustrated.
The ribbon rewind unit is driven by a belt from the motor of the print
unit via an idle pulley attached to the inside of the centreline wall.
The rewind roller (fitted underneath the pressing roller) may be
driven by a belt to the optional rewinder's stepper motor, if a backing
paper rewind unit is fitted. These belts have to be removed before
the print unit can be pulled out.
Intermec EasyCoder 601 XP – Service Manual Ed. 3
Belt to Ribbon Rewind Unit
Label Stop Sensor
(hidden)
Headlift Mechanism
Locking Handle
(in open position)
