8.4 Belts, cont'd.
#T20 Torx Screw
Belt
Intermec EasyCoder 601 XP – Service Manual Ed. 3

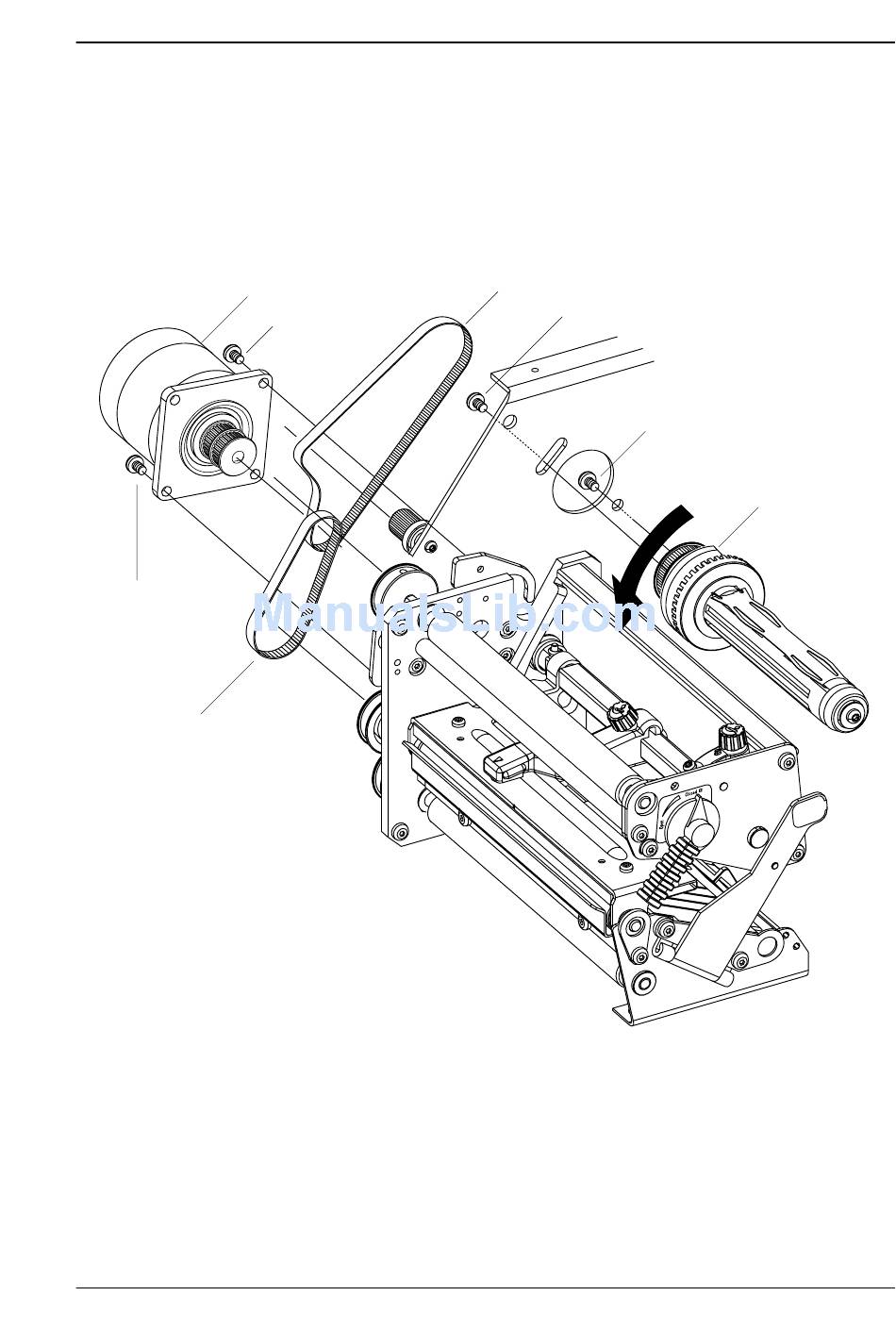

In the illustration below, only part of the centreline wall is shown.
There is no need to completely remove the ribbon rewind unit, only
to rotate it in order to remove the tension to the belt.
Stepper Motor
#T20 Torx Screw
Belt
#T20 Torx Screw
#T20 Torx Screw
Chapter 8 Print Unit
Ribbon Rewind Unit
