Chapter 3 Hatches and Doors

3.2 Front Hatch

20
The front hatch gives access to:
• The front part of the print mechanism
• The paper cutter connector
• The optional label-taken sensor
The front hatch is fitted to the bottom plate by means of two hinges
of the same type as those of the right-hand door. The front hatch is
kept shut by a snap-lock and can be swung down almost to a vertical
position. The hatch can be removed from its hinges by pushing it to
the left until the snap-lock on the right-hand hinge disengages.
The front hatch can be replaced by an optional paper cutter unit, see
chapter 11.
Alignment is performed in the same way as the right-hand door, see
previous page.

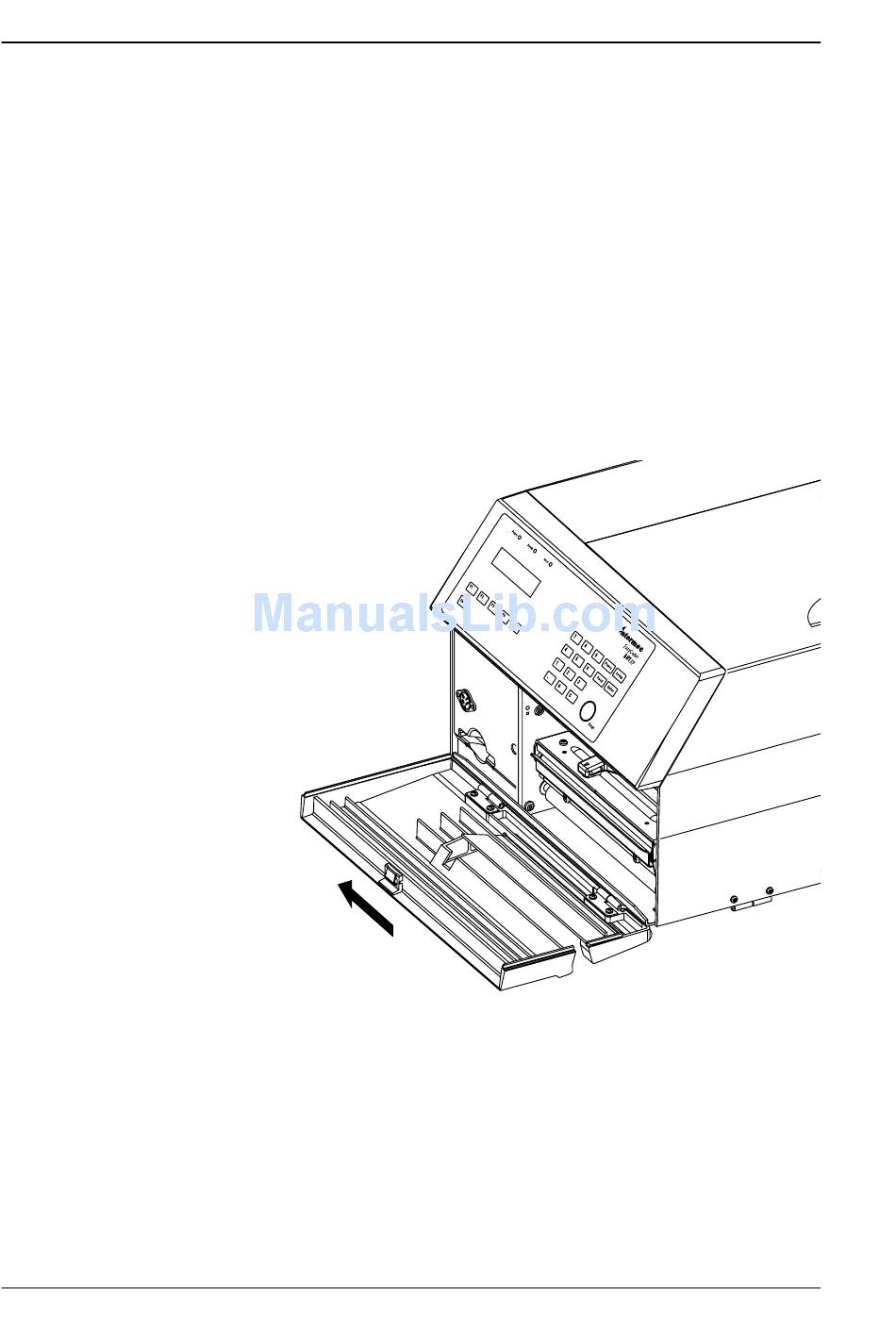

The front hatch can be removed by pushing it to the left when
Intermec EasyCoder 601 XP – Service Manual Ed. 3
open.
