8.6 Label Stop Sensor,
cont'd.
Intermec EasyCoder 601 XP – Service Manual Ed. 3

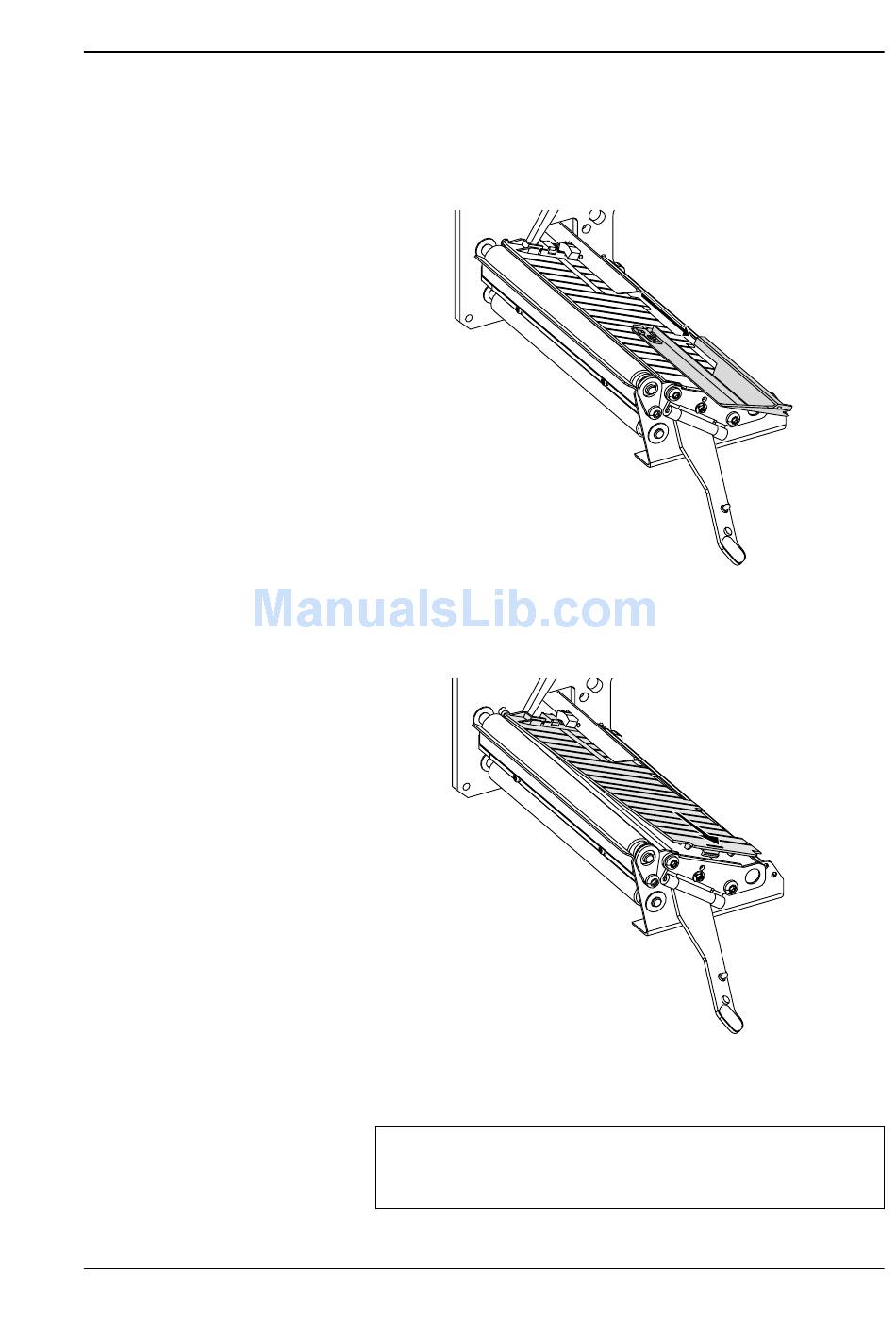

Removing the Guide Plates
The LSS guide plates will need to be removed for occasional
cleaning, replacement and when replacing a defective sensor.
• To remove the upper guide plate, just pull it straight out.
• To remove the lower guide plate, disengage the snap-lock
(accessible through an rectangular slot in the lower gable) using
e.g. a screwdriver and lift the outer end of the guide plate. Then
pull it out.
When cleaning the guide plates, use a soft cloth moistened with
isopropyl alcohol. Do not use any other type of chemicals. Be
careful not to scratch the windows.
Caution!
Isopropyl alcohol [(CH
flammable, moderately toxic and mildly irritating substance.
Chapter 8
) CHOH; CAS 67-63-0] is a highly
3 2
