10.2 Installation, cont'd.
Intermec EasyCoder 601 XP – Service Manual Ed. 3

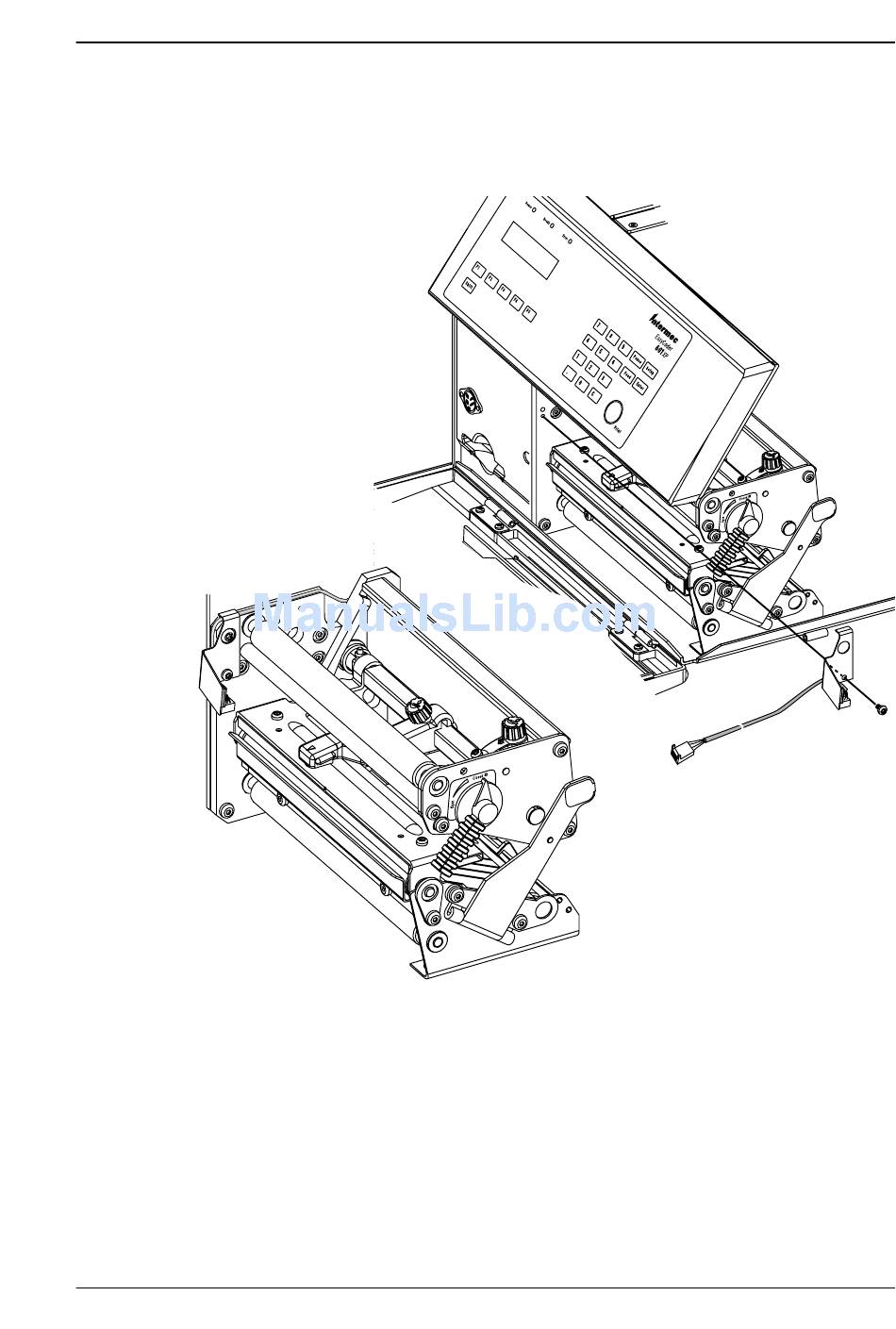

• Using the screw included in the kit, fit the sensor/bracket
assembly to the inner wall of the print unit as shown by the two
illustrations below. Fit the cable underneath the top part of the
bracket, as illustrated in the lowermost picture.
• Slip the cable of the label-taken sensor through the hole in the
centre-line wall of the printer into the electronics compartment.
• Connect the cable to P51 on the CPU board. Be careful so the
cable does not interfere with any moving mechanical parts or the
transfer ribbon.
• Insert the power cord and turn on the power.
CAUTION!
The electronics compartment contains high voltage wires
and components.
Use a non-conductive screwdriver to avoid the risk of causing
a short-circuit!
