16.5 Industrial
Interface Board, cont'd.
Intermec EasyCoder 601 XP – Service Manual Ed. 3
Digital Opto Out
The current to each opto-coupler of the digital OUT ports 221-228
can be turned on and off by means of PORTOUT ON/OFF
statements.
The status of the ports can be read by means of PORTIN functions.
If a current is led through the opto-coupler of the port, PORTIN
returns the value -1 (true), else the value 0 (false).
Signal Description
Vceo Collector-Emitter breakdown voltage
Veco Emitter-Collector breakdown voltage
Collector Current
Vog Output to ground (optocoupler)
Connector Configuration
Pin Signal Name Description
20 Out1c Collector Opto Out Channel 1
5 Out1e Emitter Opto Out Channel 1
35 Out2c Collector Opto Out Channel 2
21 Out2e Emitter Opto Out Channel 2
6 Out3c Collector Opto Out Channel 3
36 Out3e Emitter Opto Out Channel 3
22 Out4c Collector Opto Out Channel 4
7 Out4e Emitter Opto Out Channel 4
37 Out5c Collector Opto Out Channel 5
23 Out5e Emitter Opto Out Channel 5
8 Out6c Collector Opto Out Channel 6
38 Out6e Emitter Opto Out Channel 6
24 Out7c Collector Opto Out Channel 7
9 Out7e Emitter Opto Out Channel 7
39 Out8c Collector Opto Out Channel 8
25 Out8e Emitter Opto Out Channel 8
VCC
1
R34
2

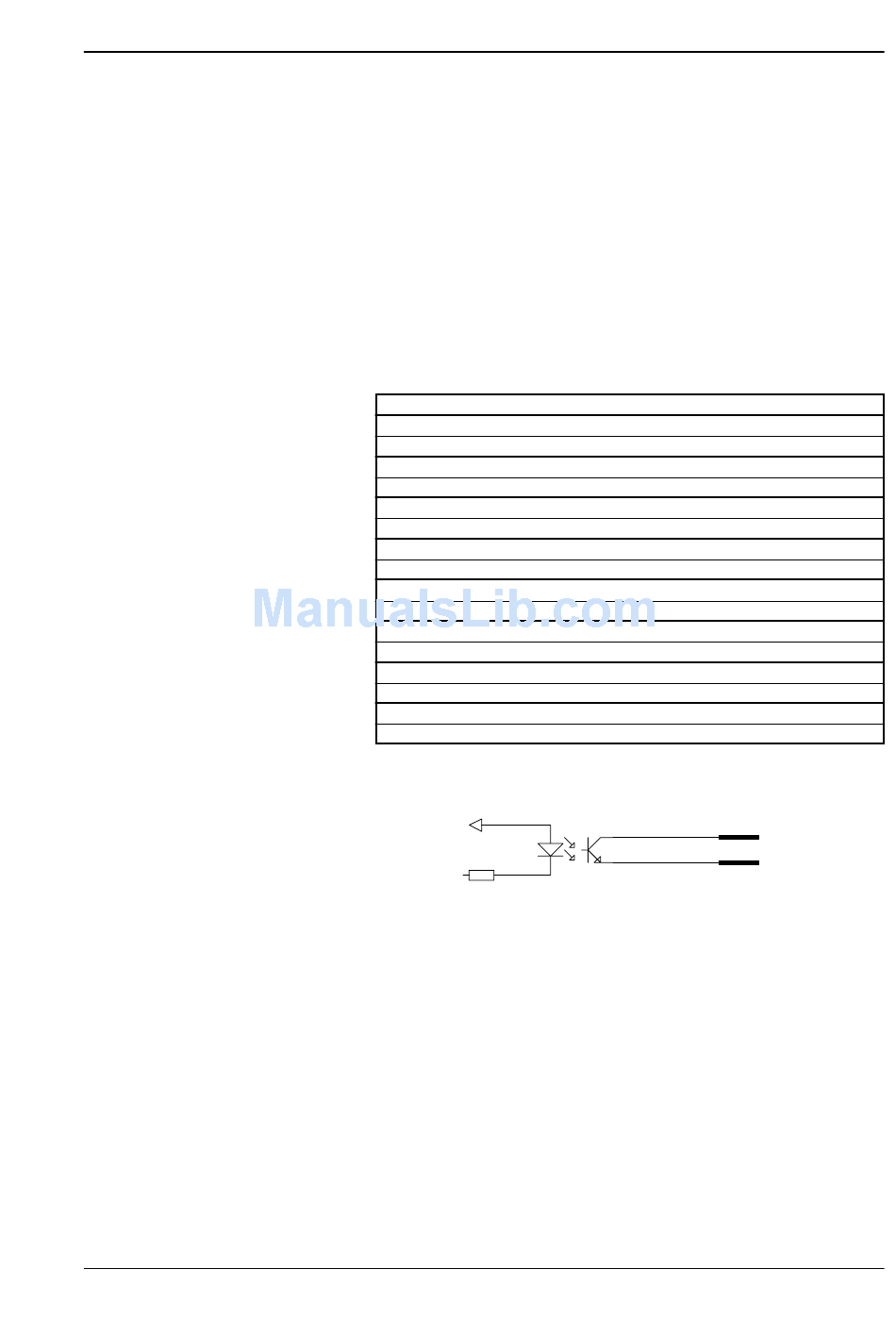

Simplified schematics of a digital OUT port.
Chapter 16
IC13A
16 20
15
5
TIL193B
Interfaces
Max.
35V
7V
15 mA
100V
Fingerprint Ref. No.
221
222
223
224
225
226
227
228
P4
OUT1c
OUT1e
