Chapter 8 Print Unit
8.6 Label Stop Sensor,
cont'd.
52
Adjustment of the Lateral Position
The label stop/black mark sensor (LSS) can be laterally adjusted
within a range of 0 to 50 mm (1.96") from the inner edge of the paper
by means of a screw accessible through the outer lower gable.
Turning the screw clockwise will move the LSS inwards and vice
versa. The position of the LSS in relation to the paper is best checked
by looking head on into the print unit when the printhead is lifted.
Align the centrepoint of the V-shaped upper sensor with the centre
of the slots or marks to be detected.
The linear markings on the lower guide plate can also be used for
positioning of the LSS as they are spaced with an interval of exactly
1 cm (0.39") from the edge that guides the paper. This method is
especially useful for black marks (measure the lateral position of the
black marks with a ruler before loading the paper).
If using irregularly shaped labels, align the LSS with the front tips
of the labels

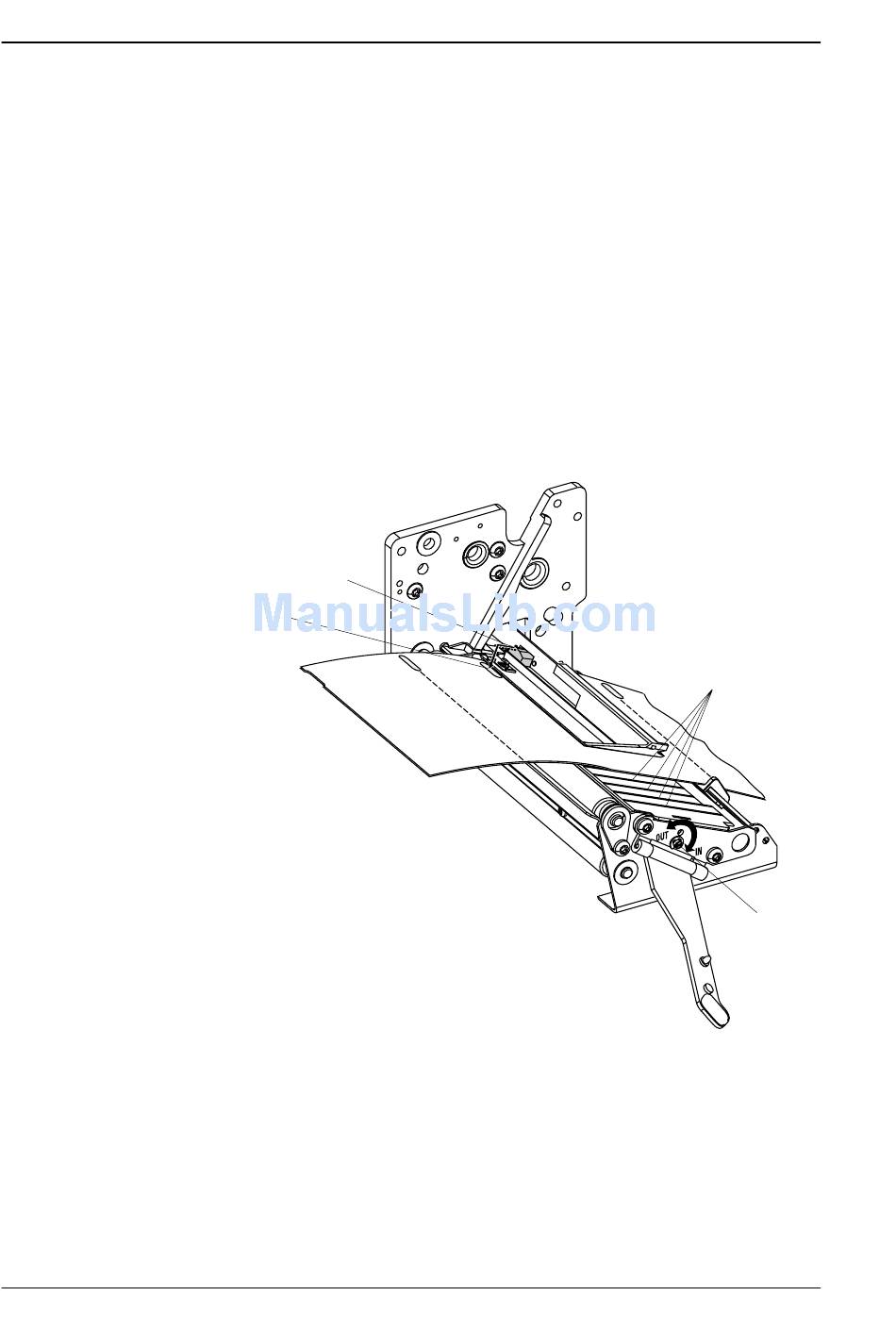

Upper part of LSS
Detection Slot
Upper part of print unit omitted to improve view.
Intermec EasyCoder 601 XP – Service Manual Ed. 3
Linear Markings
Adjustment
Screw
