Intermec EasyCoder 601 XP Service Manual page 121

Chapter 16 Interfaces
16.5 Industrial
Interface Board, cont'd.
120
Industrial Interface Configuration
The Industrial Interface provides:
• 8 digital IN ports with opto-couplers (Opto In)
• 8 digital OUT ports with opto-couplers (Opto Out)
• 4 OUT ports with relays (Relay Out)
The Industrial Interface has no straps or circuits to be fitted or
removed. All signals are available on a female DB44 connector and
the various ports are controlled by the Intermec Fingerprint instruc-
tions PORTIN and PORTOUT ON/OFF (see Intermec Fingerprint
7.xx Reference Manual).
Digital Opto In
The status of the digital IN ports 101–108 can be read by means of
PORTIN functions. If a current is led through the opto-coupler of
the port, PORTIN returns the value -1 (true), else the value 0 (false).
Signal Description
Vin [High] Input Voltage High
Vin [Low] Input Voltage Low
Connector Configuration
Pin Signal Name Description
10 IN1A Anode Opto In Channel 1 +
40 IN1K Cathode Opto In Channel 1 -
26 IN2A Anode Opto In Channel 2 +
11 IN2K Cathode Opto In Channel 2 -
41 IN3A Anode Opto In Channel 3 +
27 IN3K Cathode Opto In Channel 3 -
12 IN4A Anode Opto In Channel 4 +
42 IN4K Cathode Opto In Channel 4 -
28 IN5A Anode Opto In Channel 5 +
13 IN5K Cathode Opto In Channel 5 -
43 IN6A Anode Opto In Channel 6 +
29 IN6K Cathode Opto In Channel 6 -
14 IN7A Anode Opto In Channel 7 +
44 IN7K Cathode Opto In Channel 7 -
30 IN8A Anode Opto In Channel 8 +
15 IN8K Cathode Opto In Channel 8 -
VCC R17
IC8D
8 9
74HC14

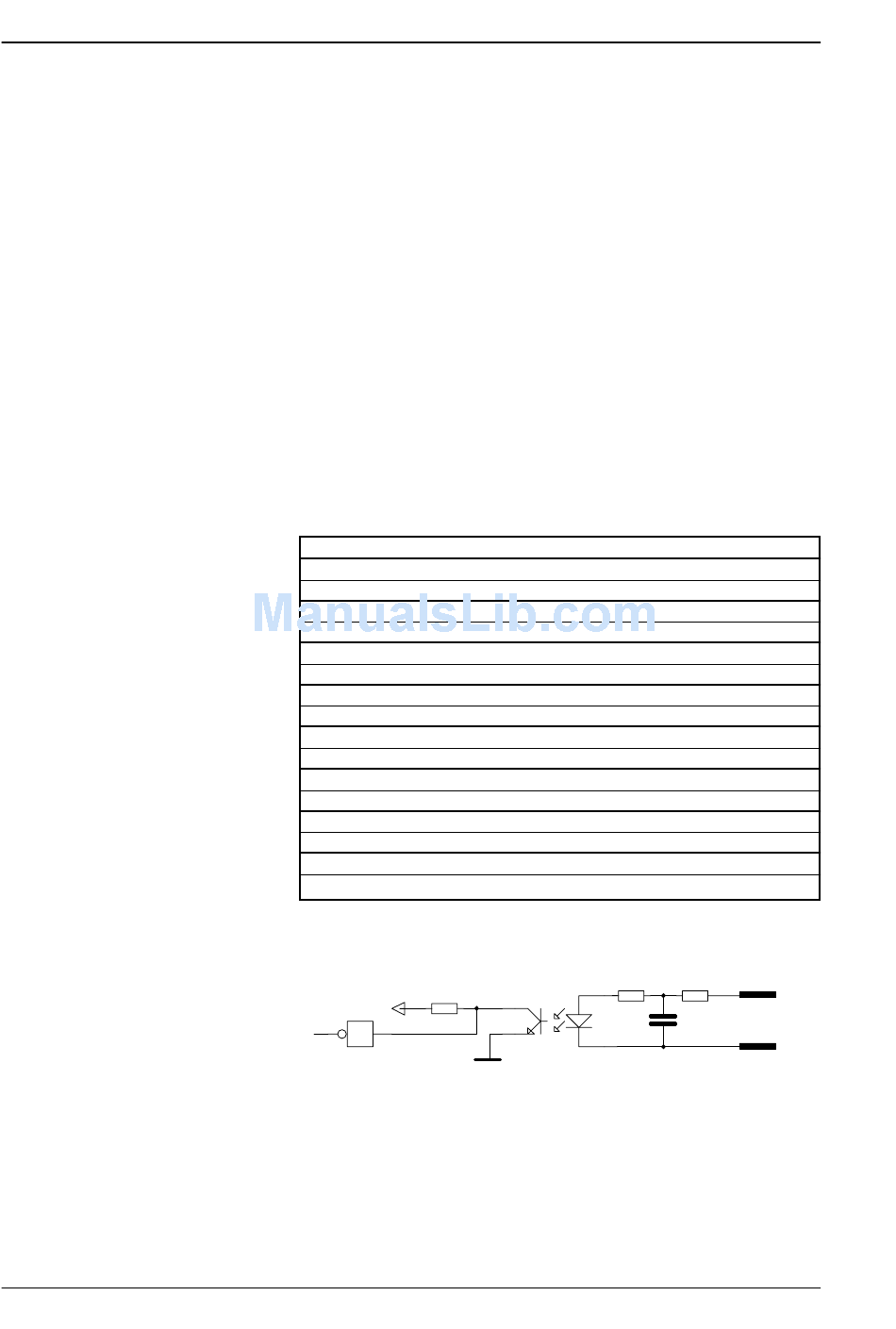

Simplified schematics of a digital IN port.
Intermec EasyCoder 601 XP – Service Manual Ed. 3
Min,
10V
-1V
TIL193B
R25
IC16D 7
10
9
C27
8
GND
Typical Max.
24V 40V
0V 1V
Fingerprint Ref. No.
101
102
103
104
105
106
107
108
P4
R33
10
IN1A
40
IN1K
