Battery Installation and Removal

To charge the battery contained in your Portable Reader, it is
necessary to remove the battery from the handle and place it in
the IP3U Dual Battery Pack Charger. This charging unit
charges the battery in four hours.

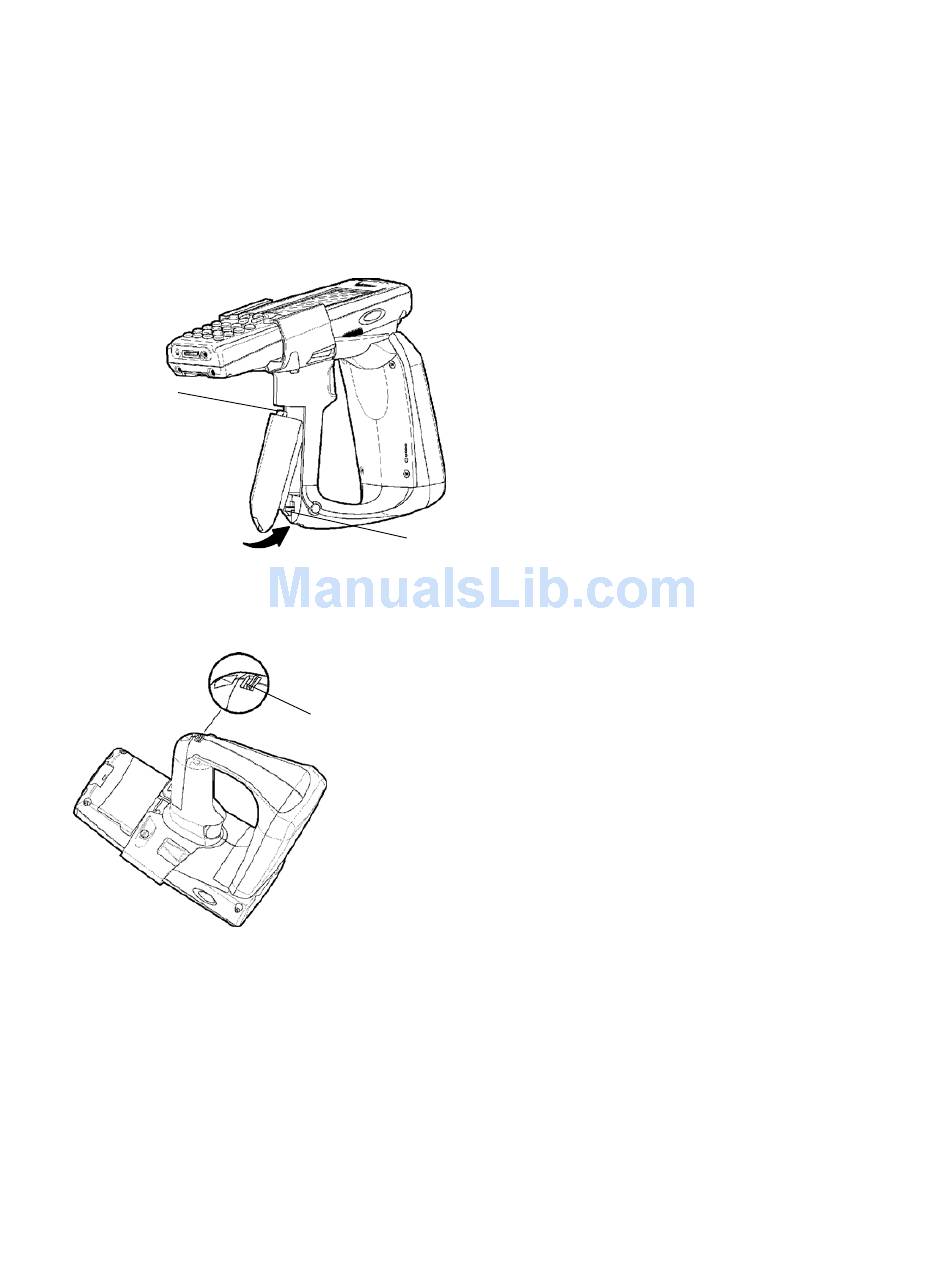

1 To install the battery into the Portable Reader, insert the bat-
tery (tilt to fit into notch) into the compartment opening and
press in until the latch on the bottom of the battery snaps
closed. The battery tab on the top of the battery pack fits into
the notch in the compartment.
Battery tab
2 To remove the battery pack, push the battery release latch
forward and remove the battery pack from the handle.
6 IP3 Intellitag Portable Reader (UHF) Quick Start Guide
Battery latch
Battery release latch
