Chapter 16 Interfaces
16.6 Double Serial
Interface Board
126
Description
The Doubler Serial Interface Board (DUART) is an optional device
for EasyCoder F2, F4,, 501 XP, and 601 XP, that provides these
printers with two extra serial interfaces, "uart2:" and "uart3:".
"uart2:"
This interface can be fitted with straps and circuits for one of the
following alternatives:
• RS 232C
• RS 422 non isolated
• RS 422 isolated
• RS 485
"uart3:"
This interface can be fitted with straps and circuits for one of the
following alternatives:
• RS 232C
• RS 422 non isolated
• 20 mA Current Loop
The Double Serial Interface Kit contains:
• One interface board fitted for RS 232C on both interfaces.
• One flat cable
• One Installation Instruction booklet
Circuits for RS 422 non-isolated, RS 422 isolated, RS 485, and 20
mA current loop can be bought separately from Intermec.
Intermec EasyCoder 601 XP – Service Manual Ed. 3

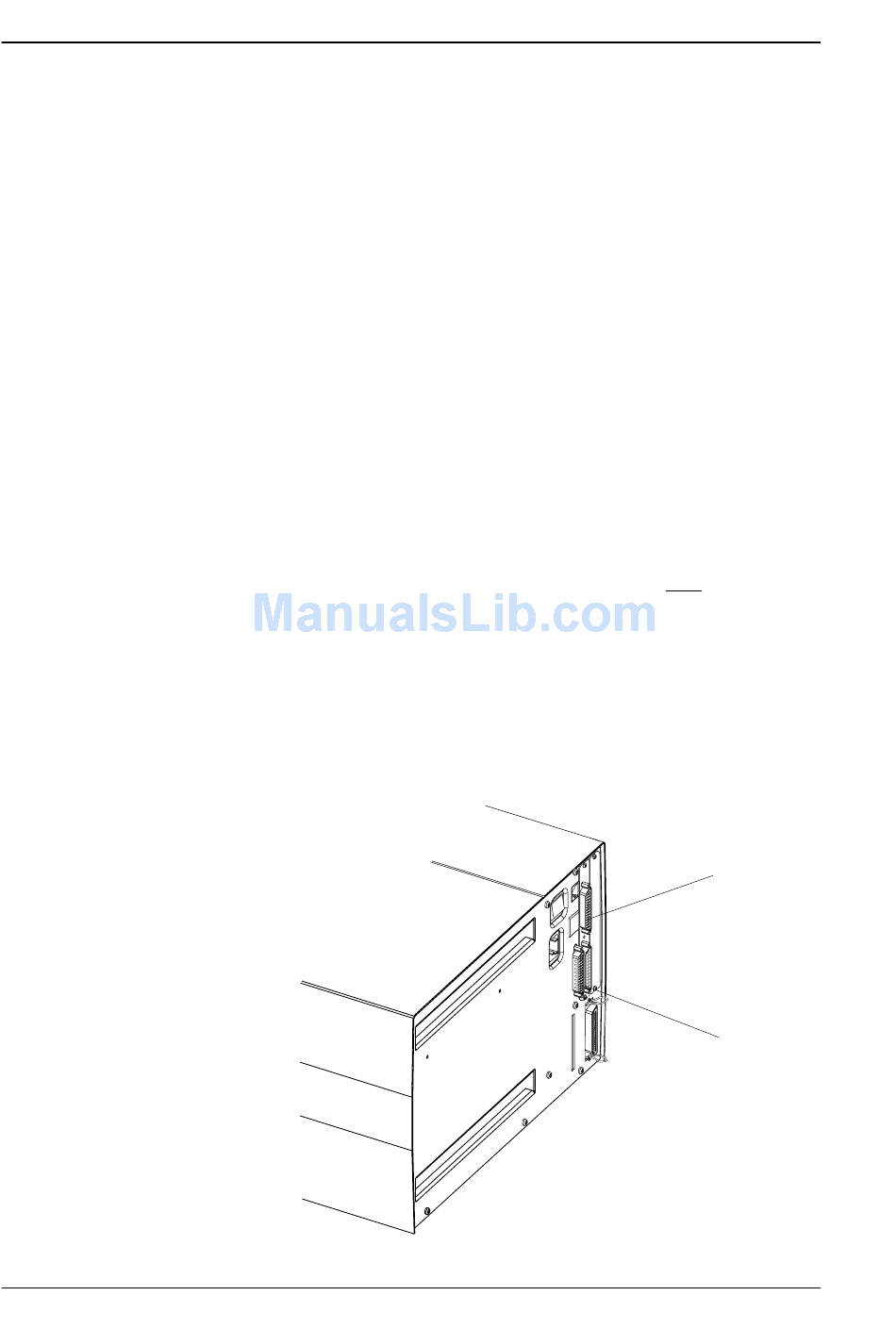

"uart3:"
(DB-25 male)
"uart2:"
(DB-25 female)
