Chapter 5 Paper Supply
5.2 External Supply,
cont'd.
28

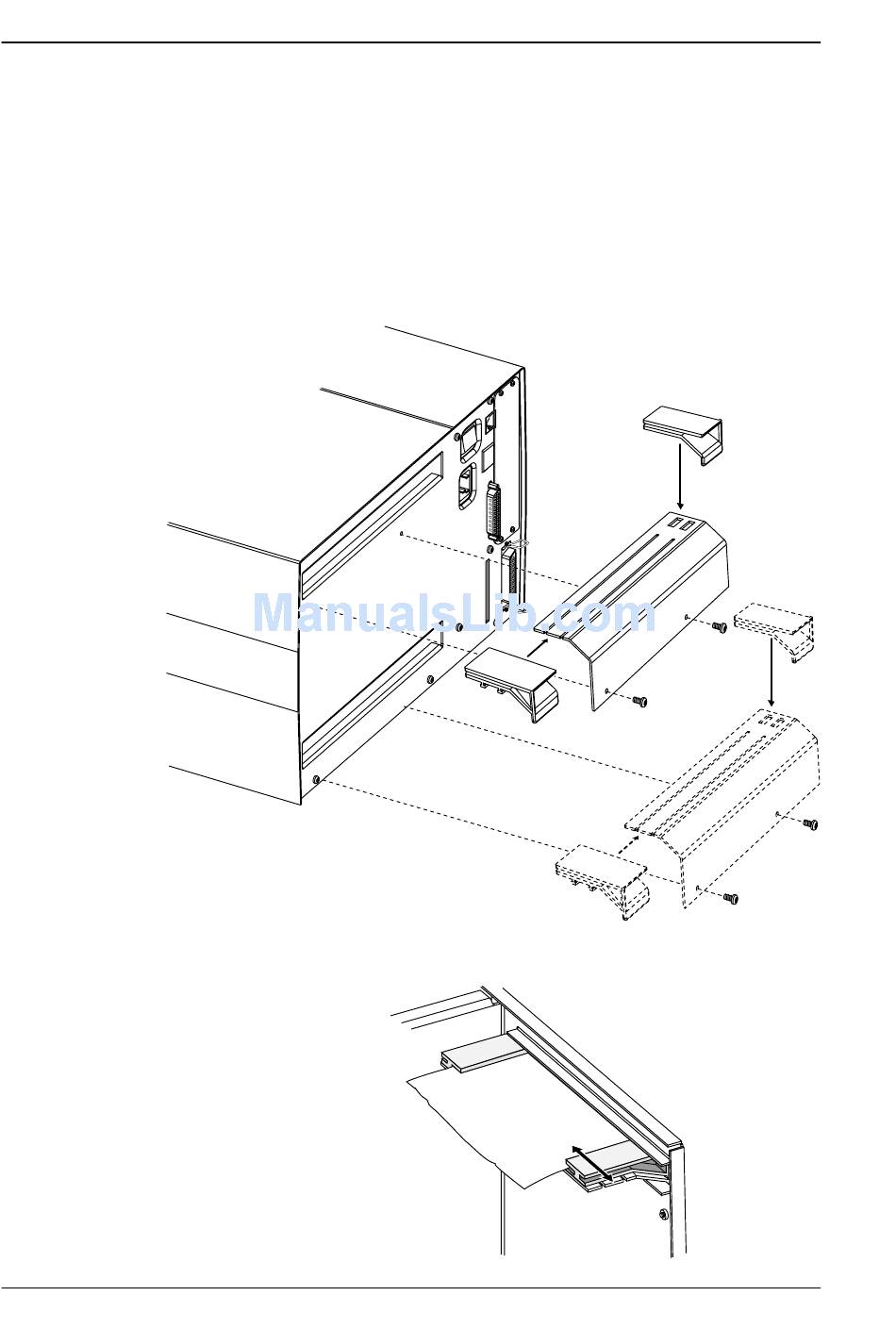

Installation, Fan Fold Guides
The bracket with the two guides can be fitted either at the upper or
lower slot in the rear plate, depending on how the paper supply is
located in relation to the printer.
Insert the complete unit through the slot from the outside and attach
it to the rear plate by means of two #T20 Torx screws. In case of the
upper position, use the screws included in the kit, and in case of the
lower position, use the two existing screws that hold the rear plate
to the bottom plate.
Adjust the position of the outer guide to fit the width of the paper.
