Chapter 16 Interfaces
16.6 Double Serial
Interface Board, cont'd.
132
Connector Configuration
The serial interface for "uart3:" uses a male DB 25 connector.
Pin Signal Name
1
2 TxD
3 RxD
4 RTS
5 CTS
6 DSR
7 GND
8
9 +20M1
10 -20M1
11 +TXD
12 -TXD
13 +20M2
14 -20M2
15 +RS422I
16 +5V
17 -RS422I
18 +RxD
19 +RS422O/+RS 485
20 DTR
21 -RS422O/-RS485
22 RI
23 Shield
24
25 -RxD
1
/. The external 5V is automatically turned off at overload.

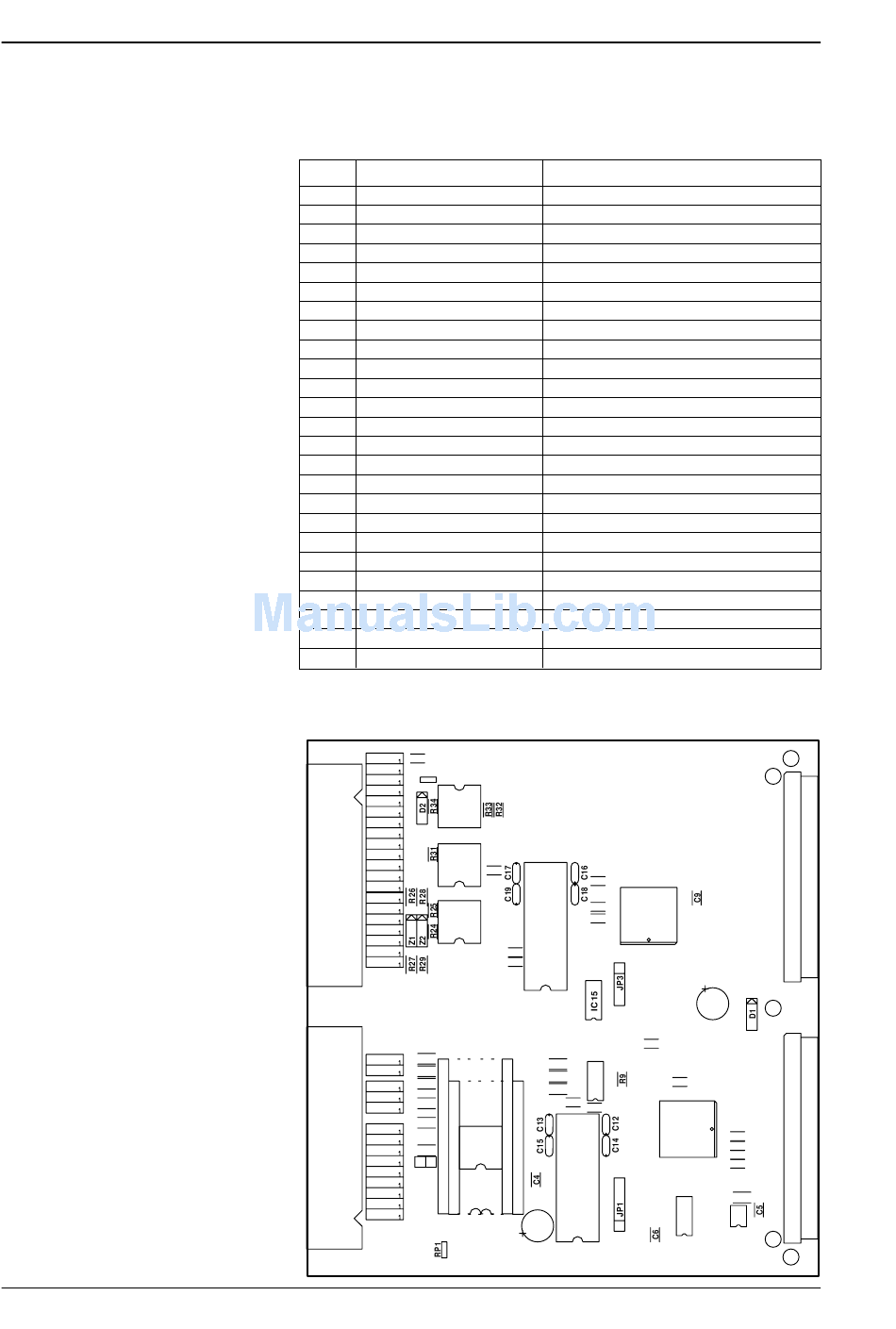

1-971613-25 Double Serial Interface pcb.: Components
UART3
F32 R35
F24
RP2
F20
F23
P4
F31
IC14
F34
F15
F16
F17
F18
F25 IC13
F19
F21
F26
F28
F22
IC12
F27
F29
F33
F30
RS232: IC2
RS485: IC4, S3, S4*
RS422isolated: IC3, S2, S4
UART2
RS422nonisol.: IC18, S1,S4
* Term. if end of cable
R11
F10
F11
R6
R7
F12
F13
R4
F14
R5
F9
F8
F6 R10
F5
JP2
F4 S4
F3
IC4
F7
F2
F1
P3
