9. Backing Paper Rewind Kit

9.1 Description

70
The backing paper rewind kit is an optional factory-installed device
that makes it possible to auto-dispense self-adhesive labels from the
backing paper (peel-off operation). The backing paper rewind unit
consists of three main parts:
• A stepper motor that drives the rewind roller in the print unit and
the rewind unit. The rewind roller is fitted as standard even when
no rewind kit is installed.
• A rewind unit that takes up the spent backing paper to be
manually removed in connection with next paper load.

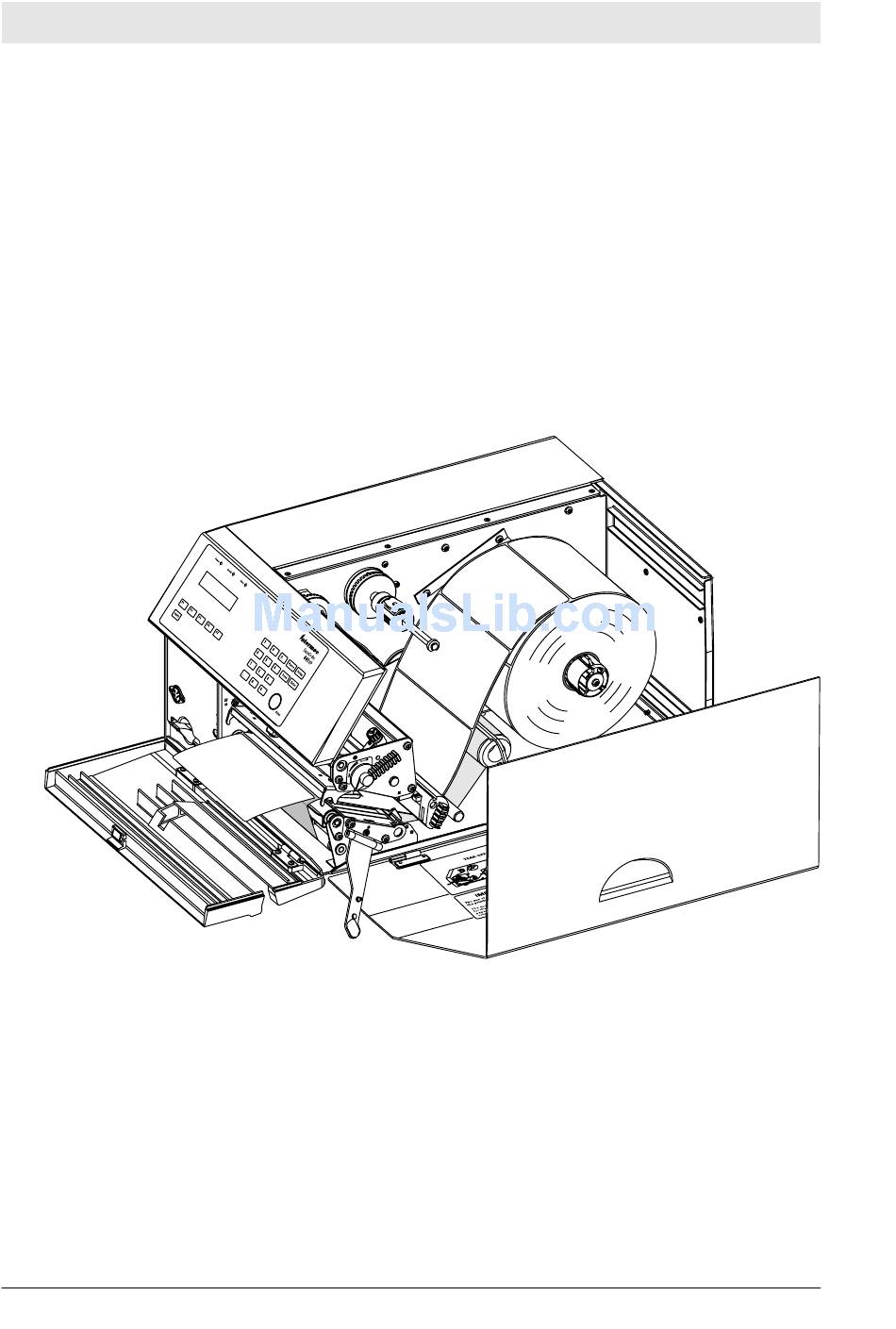

Peel-Off Operation
The rewind unit can accommodate the backing paper from a full roll
of labels.
