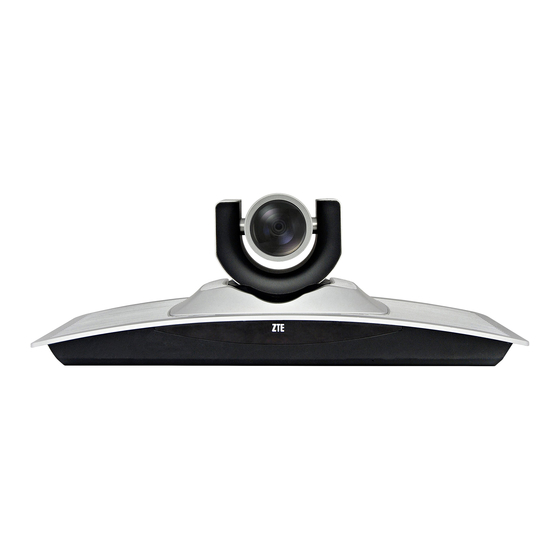

Zte ZXV10 T700 User Manual

Video conference terminal
Hide thumbs Also See for ZXV10 T700:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Product Description
ZXV10 T700
HD Video Conference Terminal
Operation Guide
Version: V1.0
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: (86) 755 26771900
Fax: (86) 755 26770801
URL: http://ensupport.zte.com.cn
E-mail: support@zte.com.cn

Advertisement

Table of Contents
loading

Related Manuals for Zte ZXV10 T700

Summary of Contents for Zte ZXV10 T700

  • Page 1 ZXV10 T700 HD Video Conference Terminal Operation Guide Version: V1.0 ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: (86) 755 26771900 Fax: (86) 755 26770801 URL: http://ensupport.zte.com.cn E-mail: support@zte.com.cn...
  • Page 2 ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners.

  • Page 3: Table Of Contents

    Contents Chapter 1 Overview ..................1-1 1.1 Getting Started....................1-1 1.2 Conference Control Through Remote Control, Web Page, and PC Console ... 1-2 1.3 Configuring Basic Information for a Terminal ............1-3 1.4 Validating Settings....................1-4 1.5 Calling for Conference Quickly ................1-4 1.6 Input Method......................
  • Page 4 Chapter 4 Video Source Settings.............. 4-1 4.1 Setting Video Source in GUI ................4-1 4.2 Presetting Camera ..................... 4-2 4.3 Activating Preset Position ................... 4-2 4.4 Selecting Main Video Source ................4-3 4.5 Selecting Secondary Video Source..............4-3 Chapter 5 Personalized Settings............... 5-1 5.1 Setting Screen Display ..................
  • Page 5 7.6 Controlling Conference ..................7-9 7.6.1 Adding Terminal ..................7-9 7.6.2 Hanging Up Terminal ................7-9 7.6.3 Prolonging Conference ................7-10 7.6.4 Ending Conference..................7-11 Appendix A Technical Specification for Interface ........A-1 Appendix B Technical Specifications............B-1...

  • Page 7: Chapter 1 Overview

    From the perspective of a beginner or a new user, this chapter describes the common conference flow of the ZXV10 T700 terminal. To call for a complex conference, for example, a dual video conference, refer to the ZXV10 T700 HD Video Conference Terminal User Guide.

  • Page 8: Conference Control Through Remote Control, Web Page, And Pc Console

    Daily Configuration and Modification You can perform daily configuration for the ZXV10 T700 terminal through the following two modes: GUI on the remote control and Web page. Use the direction keys on the remote control to enter the configuration page, and then configure and modify the required parameters.

  • Page 9: Configuring Basic Information For A Terminal

    Log in to the PC console of the terminal to perform conference control. Conference Initiation You can initial a conference by using the ZXV10 T700 terminal through the following three modes: GUI on the remote control, Web page, and PC console.

  • Page 10: Validating Settings

    ZXV10 T700 Operation Guide 2. Select the GK type, enter the IP address of the GK, and set the GK port number to 1719 according to the actual administrator configuration. 3. Contact the ZXMS80 system administrator and check the terminal number.

  • Page 11: Input Method

    In the text input mode, press the input method switching button to switch to the ABC (letter) mode, as shown in the figure below. Figure 1-2 Inputting Letters In the interface as shown in the above figure, press the letter buttons to input capital or lower-case letters. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...
  • Page 12 ZXV10 T700 Operation Guide Symbol Input Method The operation procedure for inputting the symbol is described as follows: 1. In the text input mode, press the input method switching button to switch to the “. ;(symbol)” mode, as shown in the figure below.

  • Page 13: Chapter 2 Common Operations

    Only the chairman can control remote cameras. The prerequisites are as follows: For multipoint conferences, the conference template in the network management system supports the function of remote control. For details, refer to the related SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 14: Adjusting Camera Parameters

    ZXV10 T700 Operation Guide descriptions in the ZXMS80 V2.03 Multimedia Service Management System Quick User Guide . For point-to-point conferences, the terminals can remotely control over each other. The terminals to be controlled enable the function of remote control. The detailed setting method is as follows: Choose Management >...

  • Page 15: Operating Screen Display

    2.2.1 Adjusting Display Mode Prerequisites The ZXV10 T700 terminal can switch the display mode after joining a conference. Switching display mode is valid only for video output port 1 (port connected to the main TV). Other output ports do not support this function.

  • Page 16: Learning Various Display Icons

    ZXV10 T700 Operation Guide 2.2.2 Learning Various Display Icons The TV screen displays certain icons. The following table describes the meanings of these icons. Table 2-1 Terminal Display Icon and Description Icon Description Indicates that the local camera is controlled currently.

  • Page 17: Adjusting Input Volume

    This operation helps to implement switching between the main video source and the secondary video source. Through the switching operation, you can view the pictures of the main video source and the secondary video source on a same TV. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 18: Video Input Settings

    ZXV10 T700 Operation Guide Steps 1. In the active video (without GUI), press the Camera key on the remote control. The switching bar for video source is displayed. 2. Select the main video source or the secondary video source as required, and press the OK key on the remote control.
  • Page 19 3. After naming the video source and selecting a port, click Edit next to the video source. The following interface is displayed. Figure 2-2 Input Configuration Interface 1 4. Press OK button or F1 button of the remote control to enter the next page of configuration as shown below. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...
  • Page 20 ZXV10 T700 Operation Guide Figure 2-3 Input Configuration Interface 2 5. Refer to the following table to configure the parameters displayed in the above figure. Note In this Version, Parameters of Input Configuration Interface of inner camera is noneffective. Item...

  • Page 21: Video Output Settings

    Specifies whether to enable the function of remote control. That is, the Remote Control ZXV10 T700 camera can be remotely controlled by other terminals (often the chairman terminal) with the function of remote control The options are Normal and Reverse...
  • Page 22 ZXV10 T700 Operation Guide Caution The first monitor is mandatory. Therefore, the check box next to Display 1 grays out. In the above figure, two monitors are available. The following table lists the display differences when you select the check boxes next to the monitors.

  • Page 23: Operating Address Book

    3. Refer to the following table to configure the parameters displayed in the above figure. Item Description Port Selects the main output port, through which the monitor is connected with the ZXV10 T700 terminal. Working Mode Selects an output working mode. Resolution Selects an output resolution.

  • Page 24: Calling For Conference By Using Address Book

    ZXV10 T700 Operation Guide Item Configuration Method Name Enter the friend name. It can be digits, letters, and Chinese characters. Call Type Select the IP type. Call Rate Set the maximum rate in the case of a point-to-point call. IP Address Enter the IP address of the friend.
  • Page 25 Figure 2-7 Installation Confirmation Dialog Box 3. On the page as shown in the figure above, click Install to start installing the software. The setup program displays a process bar, as shown in the figure below. 2-13 SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 26: Logging In To The Pc Console

    ZXV10 T700 Operation Guide Figure 2-8 Displaying Installation Progress 4. After the installation is complete, the system displays a dialog box, as shown in the figure below. Figure 2-9 Installation Completion Dialog Box 5. In the dialog box as shown in the figure Above, click to complete the installation.
  • Page 27 2. Click PC Console to enter the PC console page. Login through the PC console software 1. Choose Start > All Programs > ZTE T Serial Terminal PCConsole > PCConsole or double-click (shortcut icon of the PC console). The login dialog box is displayed, as shown in the figure below.
  • Page 28 ZXV10 T700 Operation Guide This page intentionally left blank. 2-16 SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 29: Chapter 3 Dual Video Operations

    ZXMS80 multimedia service management system. 3.2 Transmitting Dual Video by Using Remote Control Context This operation helps to transmit dual video by using the remote control. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 30: Transmitting Dual Video Through Web Page And Pc Console

    ZXV10 T700 Operation Guide Steps 1. In a conference, press the key by using the remote control. A confirmation dialog box is displayed. 2. Move the cursor to OK and press the OK key on the remote control to transmit dual video.

  • Page 31: Receiving Dual Video

    Change Display Mode on the Web page. Two TV Sets (Displays) at the Receive End Make one TV display the remote image and the other display the secondary image. For details, refer to the descriptions of output ports and displays. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...
  • Page 32 ZXV10 T700 Operation Guide This page intentionally left blank. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 33: Chapter 4 Video Source Settings

    HDMI option in video input settings, the page is as shown in the following figure. After you save the settings, the system displays the name and icon of the HDMI option. Figure 4-1 Selecting Video Port SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 34: Presetting Camera

    Context After you preset the angle of a camera, the camera can automatically adjust to the preset angle next time. The camera of the ZXV10 T700 terminal has 10 preset positions ranging from 0 to 9. The following describes how to preset a camera by using the remote control. Alternatively, you can log in to the Web page and preset a camera by choosing System Control >...

  • Page 35: Selecting Main Video Source

    Context To activate a preset position, the TV screen displays all the video sources already configured with preset positions of the ZXV10 T700 terminal. The following describes how to activate a preset position by using the remote control. Alternatively, you can log in to the Web page and preset a camera by choosing Management Control >...
  • Page 36 ZXV10 T700 Operation Guide Context A secondary video source refers to a video source except the main video. It can be displayed on the secondary TV screen and can also be displayed on the main TV screen by means of transmitting dual video. You can use the switching operation below to enable the videos input from different interfaces to be the secondary video source.

  • Page 37: Chapter 5 Personalized Settings

    Close: The name of the conference site and the picture are not combined. In this case, you can view only the picture. – End of Steps – SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 38: Setting Volume Display Mode

    ZXV10 T700 Operation Guide 5.1.2 Setting Volume Display Mode Context According to requirements, you can determine whether to display the volume bar on the TV screen. Steps 1. Choose Management > General > Display by using the remote control or after logging in to the Web page.

  • Page 39: Adjusting Location Of Picture-In-Picture Display

    1. Choose Management > General > Call Option by using the remote control or after logging in to the P2P AnswerWeb page. The Call Option page is displayed. 2. Select the required mode from the P2P Answer drop-down list. The following table describes the available modes: SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 40: Enabling Remote End To Control Local Camera

    When a call is received, the ZXV10 T700 terminal automatically answers Auto the call and connects to the conference. When a call is received, the ZXV10 T700 terminal displays a call prompt Manual asking you whether to accept the call.

  • Page 41: Adjusting Display Mode Of Conference List On Pc Console

    2. Choose any icon in to switch the display mode. For detailed icon meaning, refer to the descriptions related to the PC console in the ZXV10 T700 HD Video Conference Terminal User Guide . – End of Steps – SJ-20100910163147-001|2010-11-23(R1.1)
  • Page 42 ZXV10 T700 Operation Guide This page intentionally left blank. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 43: Chapter 6 Other Operations

    1. Choose Management > Services > Convene a conference. The Convene a conference interface is displayed. 2. Click Address book to display the interface for selecting terminals. All the terminals that are registered in the GK are displayed on the interface. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 44: Viewing Current System Version

    ZXV10 T700 Operation Guide 3. Select a terminal (after it is selected, the check box next to its name is selected), and the click OK. The selected terminal is displayed in the Meeting list box. 4. Refer to the following table to configure the parameters , such as conference rate, number of pictures, service number, password, and duration.

  • Page 45: Performing Ping Test

    The ZXV10 T700 terminal is already connected to the network and the network status is normal. Context The ping test aims to test whether the IP network between the ZXV10 T700 terminal and other devices including MCUs, PCs, and videoconferencing terminals. Steps 1.
  • Page 46 ZXV10 T700 Operation Guide Icon Description GK status icon indicates that the GK registration is normal. indicates that the GK registration is abnormal. Speaker status icon indicates that the local audio output is enabled. indicates that the local audio output is disabled.

  • Page 47: Configuring A Shortcut Number

    Figure 6-1 Configuring a Shortcut Number 2. Right-click a blank area in the above interface, and then select Add from the shortcut menu. The serial number 1 is automatically generated, as shown in the figure below. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...
  • Page 48 ZXV10 T700 Operation Guide Figure 6-2 Generating a Serial Number 3. Double-click the Terminal name column behind 1 to edit this column. Enter a terminal name, for example, Shanghai130. 4. Double-click the Shortcut number column behind 1 to edit this column. Set a shortcut number for this terminal, for example, 3.
  • Page 49 Chapter 6 Other Operations Figure 6-3 Example SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...
  • Page 50 ZXV10 T700 Operation Guide This page intentionally left blank. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 51: Chapter 7 Common Conference Control Operations

    2. Choose Terminal List. The system displays all the in-conference terminals in a list. – End of Steps – 7.2 Applying for Chairman Prerequisites Only non-chairman conference sites can apply for chairman and the application is successfully only when no chairman in a conference. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 52: Overview Of Specific Functions For Chairman

    ZXV10 T700 Operation Guide Context If a conference is started without a chairman, all the conference sites can apply for chairman. A conference can only have one chairman. If a terminal already has the chairman token, other terminals cannot apply for the chairman token.
  • Page 53 The following table lists the site status after the chairman performs the corresponding operations of conference control. Table 7-2 Site Status After the Chairman Performs Operations Broad- cast Operation Item Microphone speaker Viewed Site Source or Not Broadcast Chairman Operated terminal Site terminal SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...
  • Page 54 ZXV10 T700 Operation Guide Broad- cast Operation Item Microphone speaker Viewed Site Source or Not Local terminal, Operated chairman terminal, terminal or previous broadcast source Other terminals Operated terminal Chairman Operated terminal terminal Local terminal, Specify Operated chairman terminal, Speech...

  • Page 55: Common Conference Control Operations

    The following describes how to browse the pictures of other conference sites by using the remote control. Alternatively, you can log in to the PC console and click Chairman Browse. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 56: Performing Chairman View Operation

    ZXV10 T700 Operation Guide Steps 1. Press the Conference key on the remote control. On the page that is displayed, choose Chairman Browse to display the corresponding page. 2. Select the required terminals by selecting the check boxes next to them. You can select a terminal, multiple terminals, or all terminals.

  • Page 57: Forbidding Speech

    Then, choose Allow All To Speak. 2. Select the required terminal with the microphone disabled and press the OK key on the remote control. In this way, the microphone of the terminal is enabled and the SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 58: Controlling Speakers And Microphones Of Other Conference Sites Through Pc Console

    ZXV10 T700 Operation Guide terminal can make a speech. Click Allow All To Speak to enable the microphones of all the terminals in the list. – End of Steps – 7.5.4 Controlling Speakers and Microphones of Other Conference Sites Through PC Console Prerequisites Only the chairman terminal can perform this operation.

  • Page 59: Controlling Conference

    After a conference is started, the chairman can hang up one or more terminals in the conference. The terminals that are hanged up are displayed in the not-in-conference terminal list. The chairman terminal can call these terminals to add them to the conference again. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 60: Prolonging Conference

    ZXV10 T700 Operation Guide Steps • Do as follows to hang up a terminal by using the remote control: 1. In a conference, press the Conference key on the remote control. Then, choose Conference Management > Hangup Terminal to display the in-conference terminal list.

  • Page 61: Ending Conference

    1. In a conference, press the Conference key by using the remote control. Conference page is displayed. 2. Choose Conference Management > End Conference and then press the OK key on the remote control. – End of Steps – 7-11 SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...
  • Page 62 ZXV10 T700 Operation Guide This page intentionally left blank. 7-12 SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 63: Appendix A Technical Specification For Interface

    CVBS x 1 PAL/NTSC 1 x mic Audio Input Interface 1 x PC line interface 1 x LAN IEEE 802.3 1 x PC line interface Audio Output Interface HDMI OUT USB Interface 2 x USB USB 2.0 SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...
  • Page 64 ZXV10 T700 Operation Guide This page intentionally left blank. SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...

  • Page 65: Appendix B Technical Specifications

    30fps, 4CIF 25fps, CIF 25fps 640 x 480 (VGA) 800 x 600 (SVGA) 1024 x 768 (XGA) 1280 x 1024 (SXGA) Data Content Res- olution 1280 x 800 (WXGA) 1366 x 768 (WXGA) 1440 x 900 (WXGA+) 720p SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...
  • Page 66 ZXV10 T700 Operation Guide Item Subitem Detailed Specifications Media Encryption Protocol Encryption Stan- H.235 dard Working Voltage 100 VAC to 240 VAC, 50 Hz to 60 Hz Electric Character- Power Consump- istic Maximum consumption: < 50 W tion Working Status 0 ℃...
  • Page 67 Appendix B Technical Specifications Item Subitem Detailed Specifications Authentication CCC, CE, FCC, UL, ROHS SJ-20100910163147-001|2010-11-23(R1.1) ZTE Proprietary and Confidential...
