Page 1: Product Description
ZXV10 ET501 Product Description Version: V2.0.1 ZTE CORPORATION No. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26771900 Fax: +86-755-26770801 URL: http://support.zte.com.cn E-mail: 800@zte.com.cn... - Page 2 ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners.
- Page 3 Chapter 4 Product Functions ..............4-1 Chapter 5 Network Deployment ..............5-1 5.1 Networking Modes....................5-1 5.2 Default Ports ..................... 5-2 Chapter 6 Interfaces and Protocols ............6-1 Chapter 7 Technical Specifications ............7-1 Glossary ......................I SJ-20161028111501-001|2017-04-10 (R1.0) ZTE Proprietary and Confidential...
- Page 4 This page intentionally left blank. SJ-20161028111501-001|2017-04-10 (R1.0) ZTE Proprietary and Confidential...
-
Page 5: About This Manual
ZXV10 ET501 provides high-definition videoconference services. This manual is applicable to the ZXV10 ET501 high-definition video call terminal. It describes the product positioning and features, structure, functions, networking application, interfaces and protocols, and technical specifications of the ZXV10 ET501 terminal. - Page 6 Manual Description ZXV10 ET501 Quick Start Guide Describes how to perform quick connection between terminals and the other equipment, and create a conference. ZXV10 ET501 Operation Guide Describes how to configure the terminal, create a conference, (Through the Remote Control &...
-
Page 7: Chapter 1 Safety Precautions
When transporting, storing, or using device, keep it dry and avoid hard collision. Do not disassemble the device or open the enclosure. In case of any device failure, contact ZTE technical support. Without authorization, no unit or individual is allowed to modify the device structure, security, or performance design. - Page 8 1. Check whether the ZXV10 ET501 terminal is stable. If the product shakes during operation, conferences are affected. 2. Ensure that power and voltage are in the ranges required by the ZXV10 ET501. For the operating voltage range, refer to Table 7-1.
- Page 9 Do not throw abandoned devices into a trash can. You should comply with the local regulations on equipment packaging materials, exhausted batteries, and replaced devices and support material collection. Router Usage Instructions You should comply with the following regulations: Use enterprise-class switches and routers. Never use hubs. SJ-20161028111501-001|2017-04-10 (R1.0) ZTE Proprietary and Confidential...
- Page 10 ZXV10 ET501 Product Description The router software must support the QoS protocol and algorithm. Otherwise, you should upgrade the router software. Configure QoS for video and ordinary services on routers to ensure that video packets are not discarded in case of network congestion.
- Page 11 Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. SJ-20161028111501-001|2017-04-10 (R1.0) ZTE Proprietary and Confidential...
- Page 12 ZXV10 ET501 Product Description This page intentionally left blank. SJ-20161028111501-001|2017-04-10 (R1.0) ZTE Proprietary and Confidential...
-
Page 13: Chapter 2 Product Positioning And Features
Features Product Positioning The ZXV10 ET501 is a compact and delicate videoconference terminal based on the new generation ET smart platform. It provides an HD camera, two omni microphones, a wireless Wi-Fi module, and high-speed interfaces to provide users with 1080p HD video and broadband audio experience. - Page 14 ZXV10 ET501 Product Description Various control modes: The ZXV10 ET501 can be controlled through the à touchscreen TV, remote control, and Web page. Using the touchscreen TV to control the ZXV10 ET501 makes the configurations and videoconferences easy. The operation menus and videos are separately displayed, and the videos can à...
-
Page 15: Chapter 3 Product Structure
3.1 System Components The system is composed of the terminal and infrared remote control. For a description of the ZXV10 ET501 system components, refer to Table 3-1. Table 3-1 Components of the ZXV10 ET501 System Compo- Figure Function Description nent Terminal It is the core part of the system. -
Page 16: Produce Overview

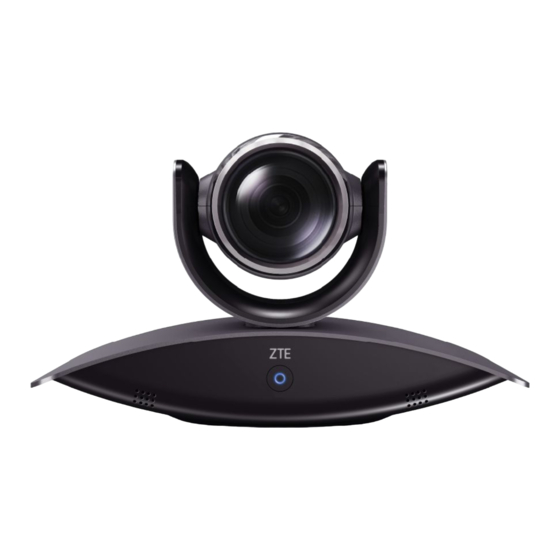

Figure 3-1. Figure 3-1 Front Panel of the ZXV10 ET501 There is a status indicator on the front panel of the ZXV10 ET501. If the ZXV10 ET501 is operating properly, the indicator is solid blue. Note: In shut-down status, press the power switch to turn the terminal on. -
Page 17: Chapter 4 Product Functions
Supports the customized calling and answering mode: manual mode, automatic mode, or automatic refusal mode. The ZXV10 ET501 can be interconnected to the clients of Microsoft Lync 2010 and Microsoft Lync 2013. The ZXV10 ET501 can be interconnected to VT100 series video conference software terminals developed by ZTE. - Page 18 Security mechanism Uses a built-in operating system with a carrier-class reliable design to greatly improve the processing rate and anti-attack capability of the ZXV10 ET501 and realize 24 x 7 hours of reliable and stable operation. Supports various security mechanisms, including ITU-T H.235 encryption, terminal registration, and password authentication.
-
Page 19: Chapter 5 Network Deployment
In area B, the ZXV10 ET501 terminal and the MCU server are in the same private network, which is applicable to an interdepartmental conference in a company. -
Page 20: Default Ports
ZXV10 ET501 Product Description Figure 5-1 Networking Mode for Holding a Conference Through an External MCU 5.2 Default Ports For the default ports of the ZXV10 ET501, refer to Table 5-1. Table 5-1 Default Ports Default Port Connection Function Open Suggestion... - Page 21 ZXV10 ET501 web pages. Clock (Optional) This port must be open when the synchronization ZXV10 ET501 needs to be connected to an server port external NTP server. Log server port This port must be open when the log server needs to be enabled.
- Page 22 ZXV10 ET501 Product Description This page intentionally left blank. SJ-20161028111501-001|2017-04-10 (R1.0) ZTE Proprietary and Confidential...
-
Page 23: Chapter 6 Interfaces And Protocols
Chapter 6 Interfaces and Protocols Physical Interfaces The rear panel of the ZXV10 ET501 provides various physical interfaces, including the video interfaces, network interface, power supply interface, and USB interface. For the physical interfaces of the ZXV10 ET501, see Figure 6-1. - Page 24 Connected to a USB drive so you can browse and operate the files in the USB drive through the ZXV10 ET501. Note: If use the switch hub of USB interfaces, the ZXV10 ET501 can connect to 8 USB devices at most.
- Page 25 Architecture 2×USB USB2.0 interface Power Connected to the interface power adapter. Power Tact switch with Two-color indicator The indicator is switch an indicator that can specify the located on the front standby status. panel. SJ-20161028111501-001|2017-04-10 (R1.0) ZTE Proprietary and Confidential...
- Page 26 ZXV10 ET501 Product Description This page intentionally left blank. SJ-20161028111501-001|2017-04-10 (R1.0) ZTE Proprietary and Confidential...
-
Page 27: Chapter 7 Technical Specifications
Chapter 7 Technical Specifications For the technical specifications of the ZXV10 ET501, refer to Table 7-1. Table 7-1 Technical Specifications of the ZXV10 ET501 Item Sub-item Detailed Specifications Compliant Standards Multimedia Framework Protocol ITU-T H.323, IETF SIP Video Encoding/Decoding H.264HP, H.264BP... - Page 28 ZXV10 ET501 Product Description Item Sub-item Detailed Specifications Environment Working Status Requirements Altitude <5000 m Temperature 0 °C to 40 °C (32 °F to 104 °F) Relative Humidity 10% to 90% Noise < 46 dBA SPL Minimum Illuminance 15 lux Recommended Illuminance >...
- Page 29 Glossary - Forward Error Correction - Internet Protocol - Multipoint Control Unit - Network Address Translation - Quality of Service SNTP - Simple Network Time Protocol SJ-20161028111501-001|2017-04-10 (R1.0) ZTE Proprietary and Confidential...
