58 Maintaining and Troubleshooting the Gateway ALR 8200 Server
Hard Disk Drive Setup screen
The hard disk drive setup screen appears whenever the
Primary Slave, Secondary Master,
main menu screen.

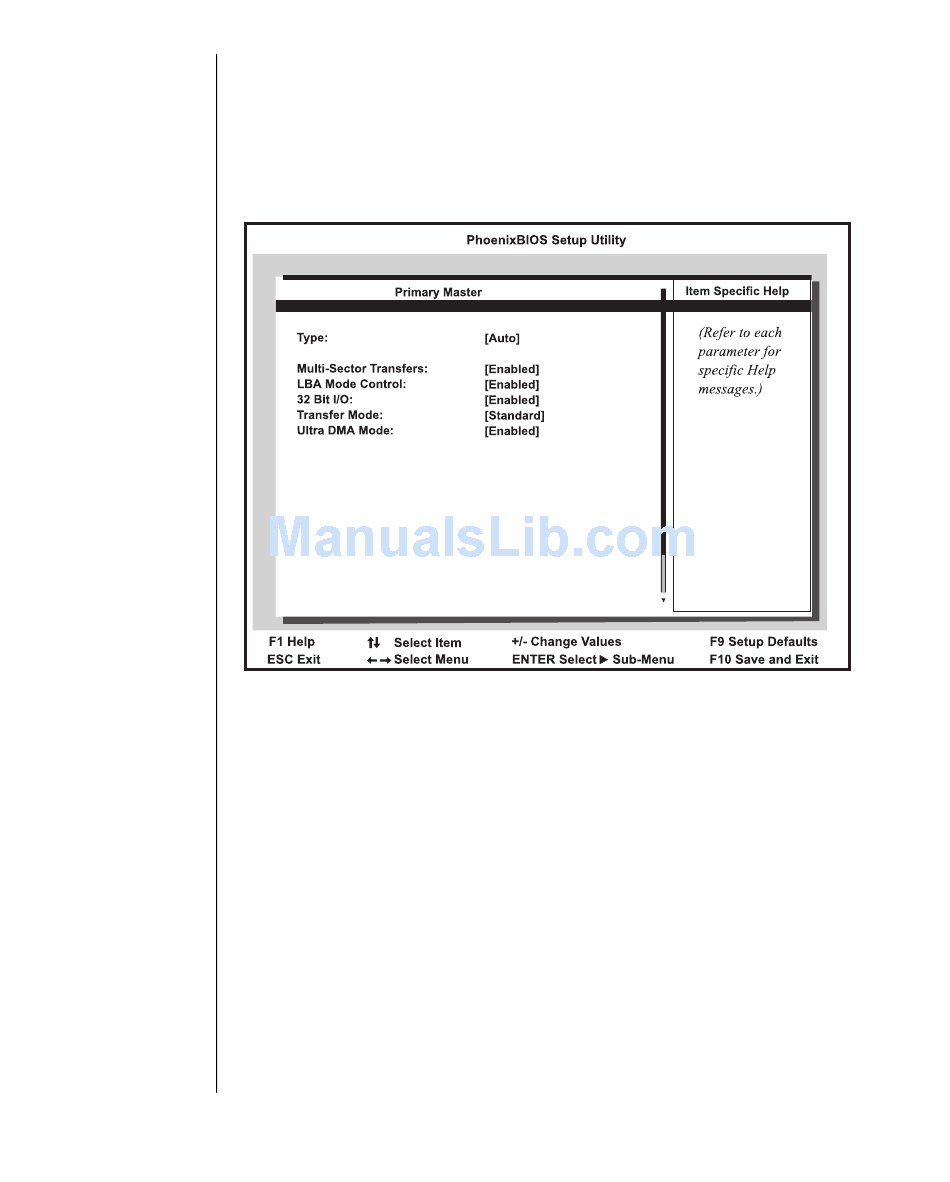

Figure 27: Example Hard Disk Drive Setup Screen
•
Type offers the following options:
• 1 to 39 - Selecting this options brings up one of a set of
previously defined drive types and sizes. These values only
apply to older drives, generally less than 200-MB in size.
• User - Selecting this option brings up a sub-menu where you
can enter the
CAPACITY
generally available from the documentation for the drive or the
drive label itself.
• Auto - Selecting this option automatically configures the drive
based on information from the drive itself.
• CD-ROM - Select this option if the drive is a CD-ROM.
or
Secondary Slave
CYLINDERS, HEADS, SECTORS
of the drive you are configuring. These values are
Primary Master,
fields are selected from the
and
MAXIMUM
