Gateway ALR 8200 Maintaining And Troubleshooting page 40

Important!
After you install a new
processor, you may see the
following message at start
up: Update table not found
for CPU xx , Stepping xxx . If
you see this message, run
the MULOADER utility,
which is on the diskette
supplied with your
processor.
28 Maintaining and Troubleshooting the Gateway ALR 8200 Server
5. Align the new Pentium II SEC cartridge in the Slot 1 supports and
press it firmly into place until fully seated. See Figure 12.

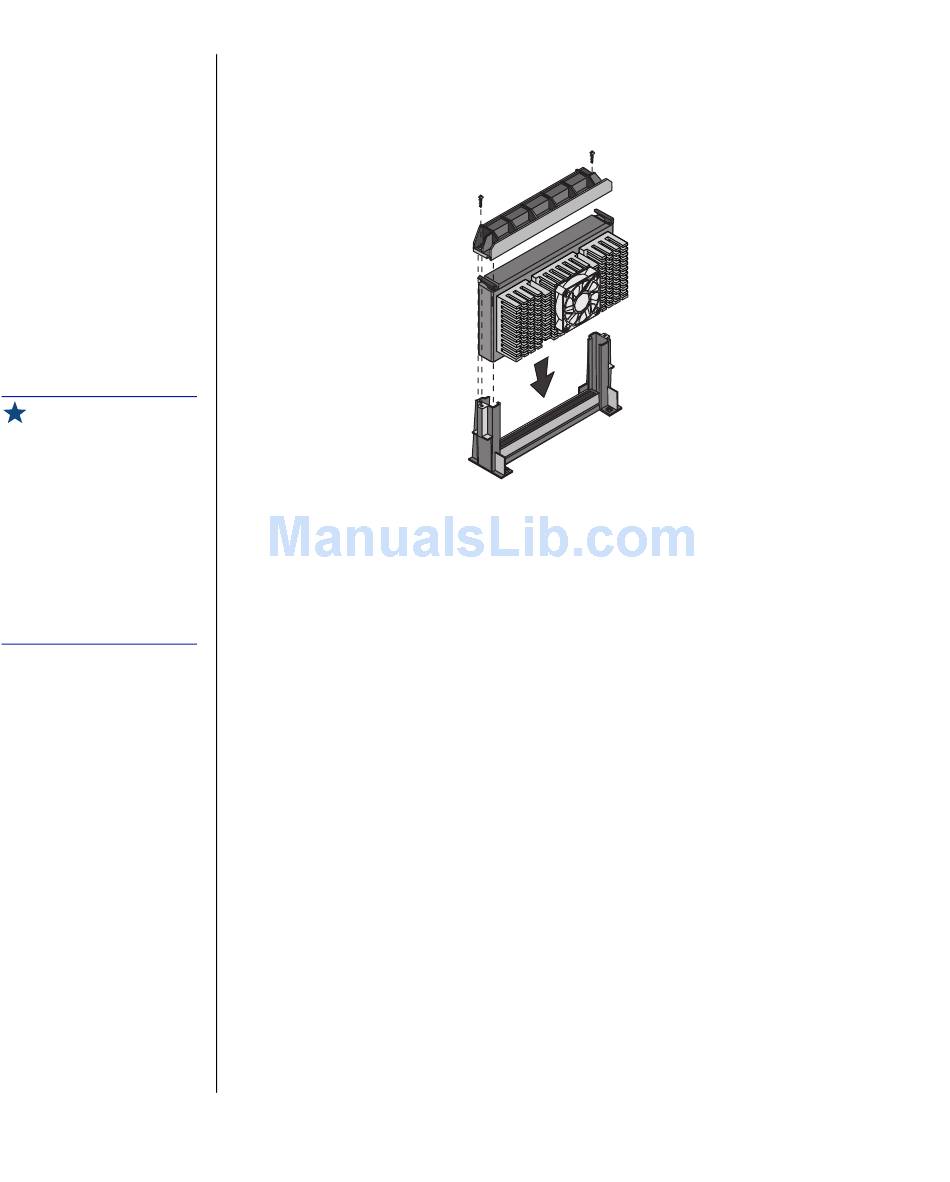

Figure 12: Installing the New Processor
Place the lock bar over the top of the processor cartridge and secure it
6.
in place with the two screws provided.
7. Set the jumpers correctly for the new processor configuration.
Insert the new VRM into the connector provided until the release
8.
latches click into place.
Close the case, as described in chapter 1.
9.
10. Reconnect the power cord and turn on the system.
