Installing a second processor

The system is compatible with Intel Pentium
You can either upgrade the existing Pentium II processor or install a second
processor of the same speed as the original. When adding a processor, order
a Pentium II processor upgrade kit. The kit includes the Pentium II
processor, a heat sink, and a disposable electrostatic discharge (ESD) wrist
strap. For the latest details on the availability of upgrade kits, contact one of
the sources listed in the Assistance Resources document.
It is critical that a heat sink be installed on each Pentium II processor. The
Pentium II processor overheats and fails if it is not cooled sufficiently. The
heat sink provided with the Pentium II processor on the system provides all
necessary cooling for the processor.
To install a second processor
1. Turn off the system and disconnect the power cord.
Open the case (see page 3 for instructions), observing the static
2.
electricity precautions on page 2.
3. Wearing an anti-static wrist strap grounded to the system chassis,
install the support bar on the system board. Note that the holes for the
lugs are different sizes and that one lug corresponds to each hole,
ensuring proper installation.
Remove the terminator card from the system board. See Figure 11.
4.

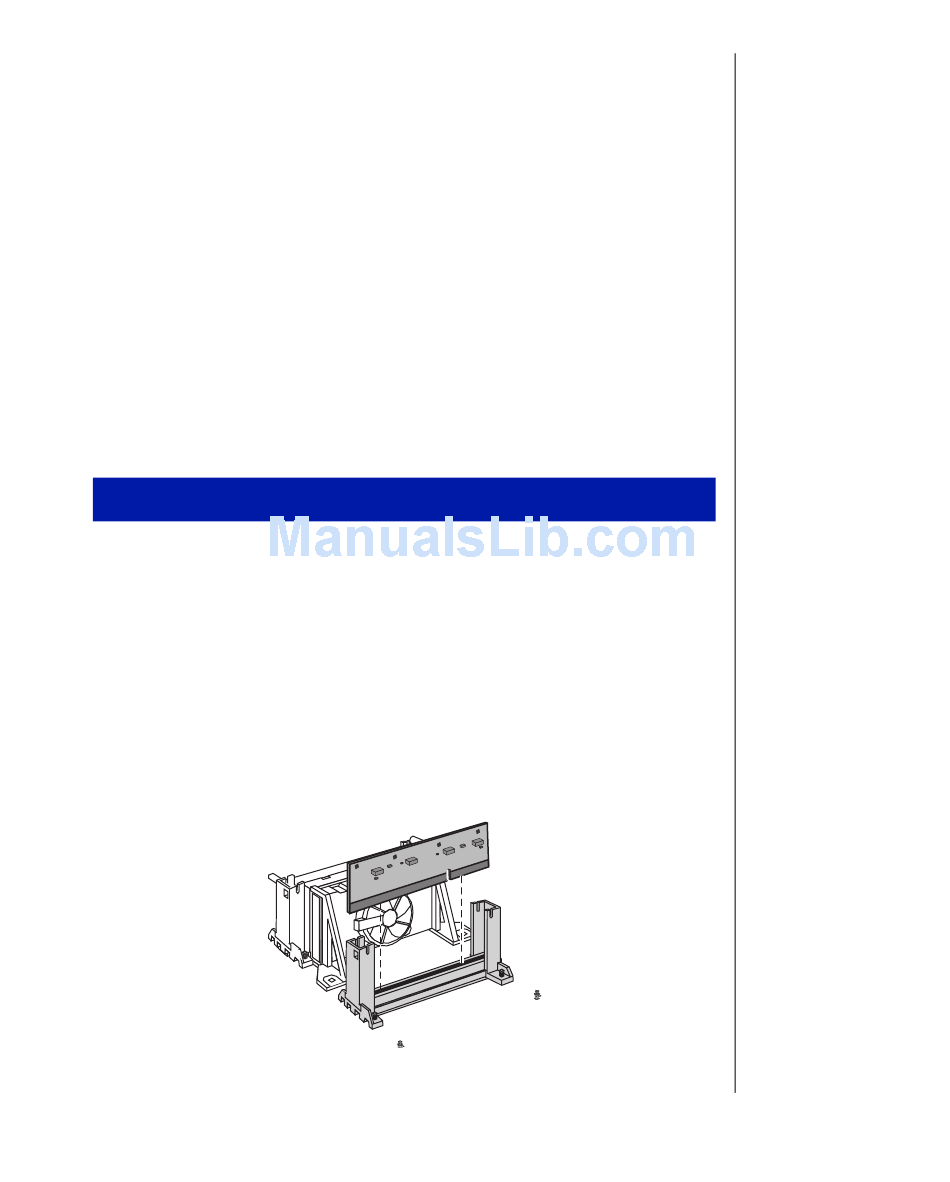

Figure 11: Removing the Terminator Card
®
II processors.
Installing Components 27
