Removing the front bezel

Disconnect the power cords. Unlock the bezel keylock if necessary.
1.
Remove both side and wrap-around panels, as described in
2.
"Removing the side panel" on page 3 and "Removing the
wrap-around panel" on page 4.
Disconnect the two ribbon cables that link the bezel LED indicators to
3.
the interior of the system.
Remove the six screws that secure the bezel to the chassis, as shown in
4.
Figure 3. Set the screws aside.
5. Gently pull the bezel off of the chassis and set it aside.

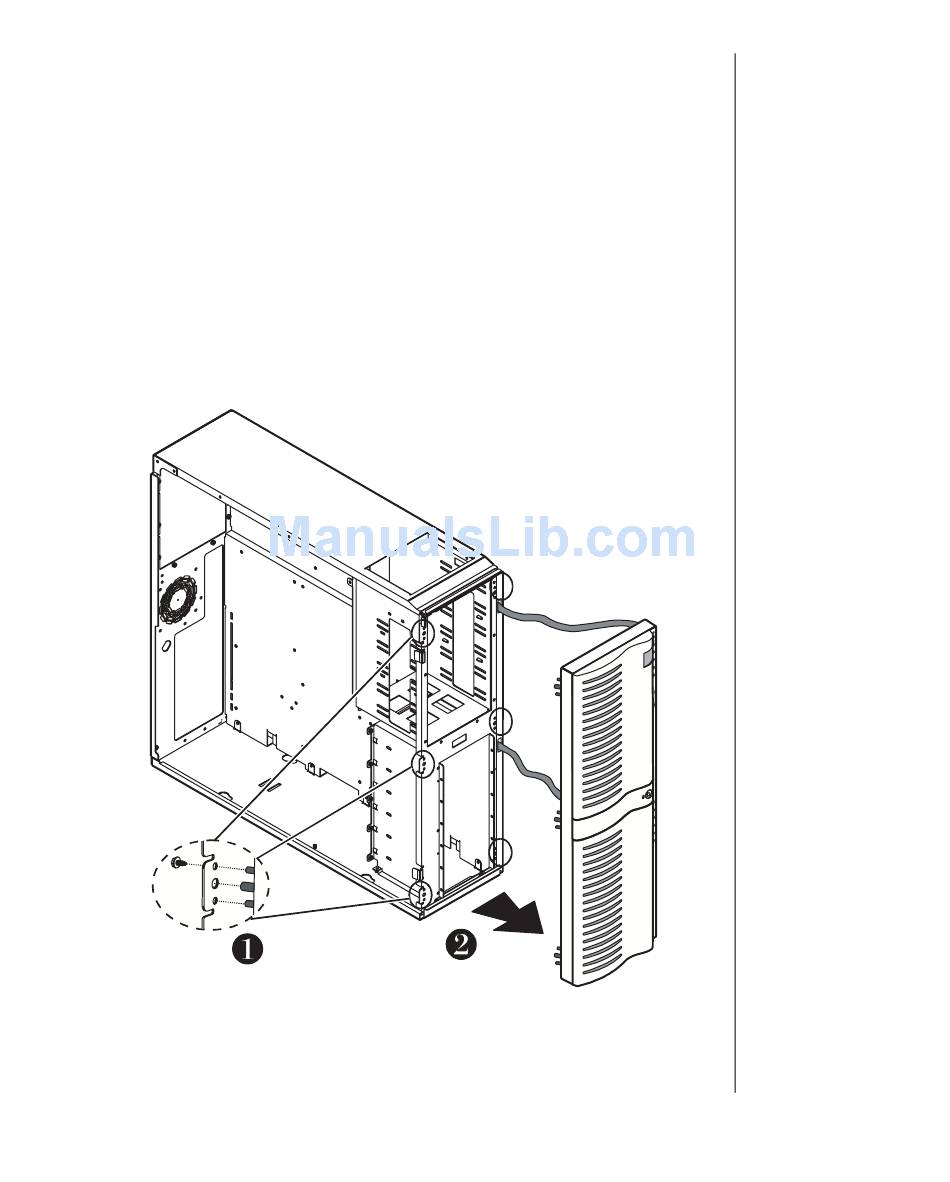

Figure 3: Removing the Bezel
System Access 5
