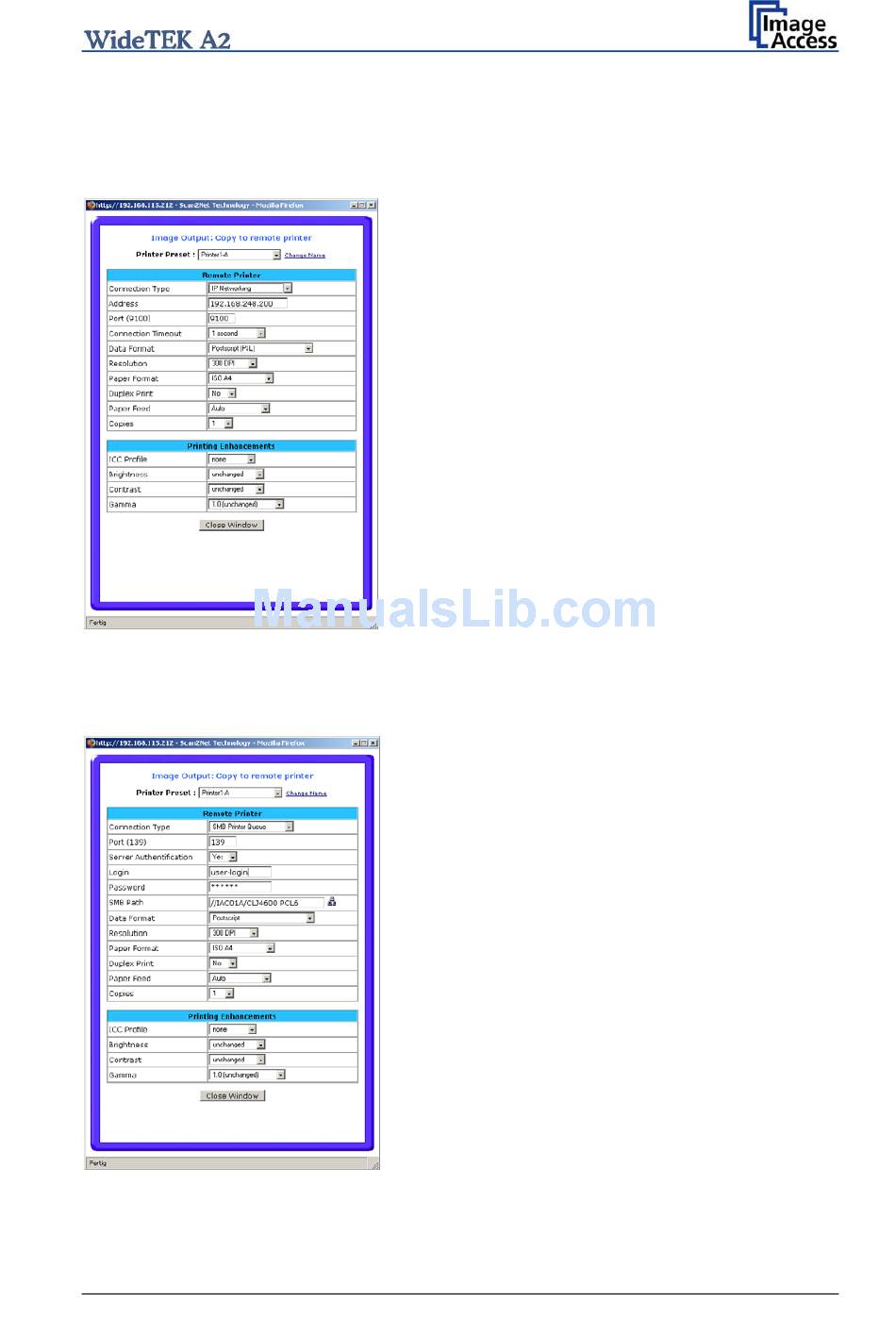

B.4.6.4.2 Printer Parameters
The printer must be identified by its IP address or can be selected from the SMB printer
queue (list). Depending on the selected Connection Type the parameters to be set differ.
Connection Type IP Networking

Picture 65: Connection Type IP Networking

Connection Type SMB Printer Queue
Picture 66: SMB Printer Queue Parameters
Operation Manual
The address and the port must be set
corresponding to the network where the
printer is installed. The recommended port
is named in brackets.
The connection timeout can be selected
from the list.
The following parameters, starting with
Data Format are identically for both
Connection Types.
The Printing Enhancements parameters
depend on the selected Data Format and
will be described in chapter B.4.6.4.3 ff.
Page 61
