Select at first the unit of measurement (Unit) in which the values shall be displayed.

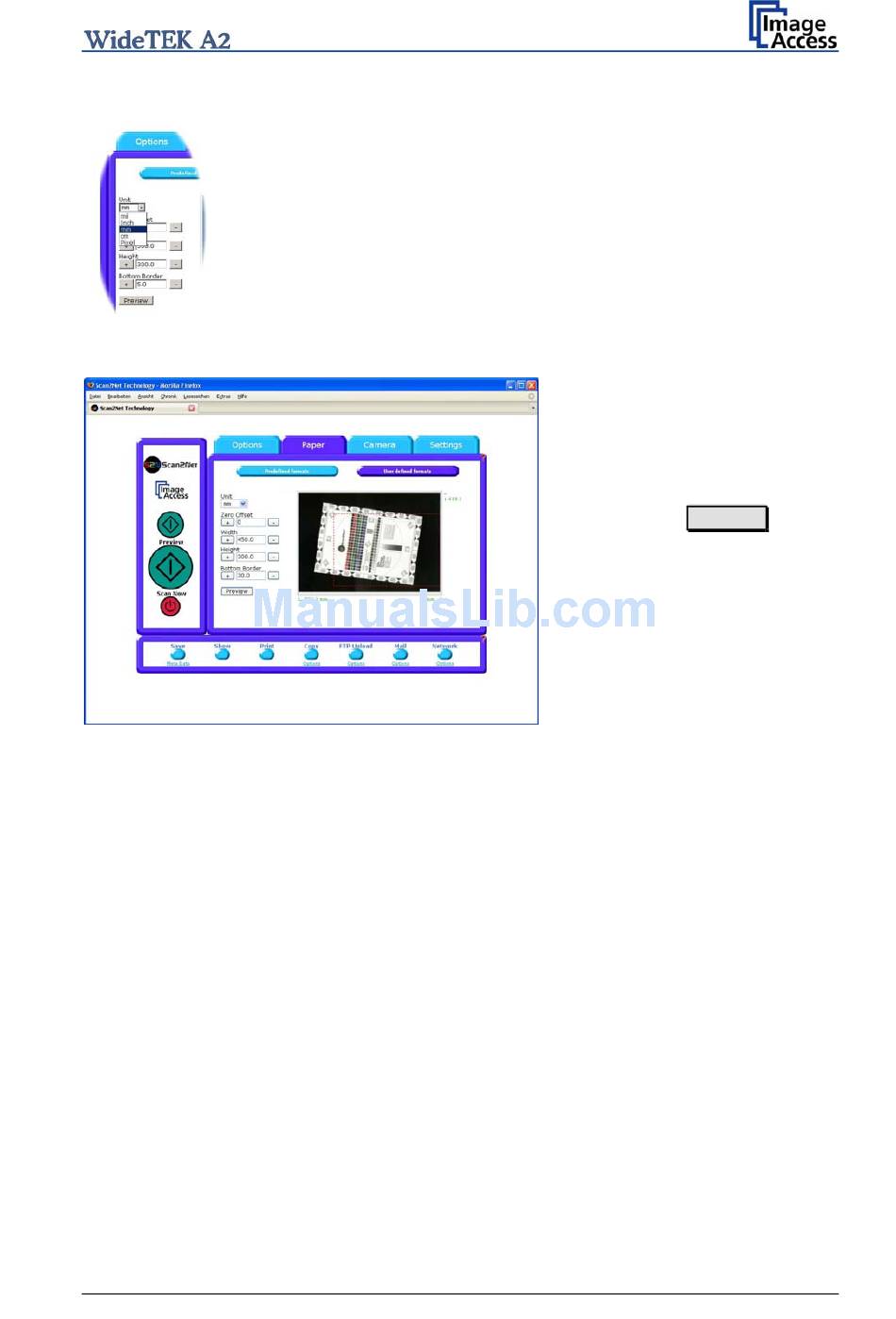

Picture 43: Rectangle shows size of user defined
The size of the user defined format is defined by four parameters.
Zero Offset: Defines the shifting to the right starting from the left side.
—
Width: Defines the size of the scan area in horizontal direction
—
Height: Defines the size of the scan area in vertical direction.
—
Bottom Border: Defines the distance to the lower border of the glass plate, where some
—
paper formats are marked.
Operation Manual
Valid choices are:
mil (1/1000 inch)
—
inch
—
mm
—
cm
—
pixel
—
format
Pressing the
Preview
will replace the template.
The
red
dashed
visualizes
the
selected
area.
button
rectangle
scan
Page 47
