B.4.3 Paper, User defined formats
The size of the user defined formats (UDF) can be specified in two ways.
1. If no JAVA Plug-In is installed or if the JAVA Plug-In is not activated, the size and the
position of the scan area can be defined via numerical values.
2. If the option Use Java UDF in the menu item Settings is activated (see chapter
B.4.5.4), the size and position of the scan area are defined via a rectangle drawn with
the mouse.
B.4.3.1 User defined format, JAVA not activated
The complete scan area is represented in a sketch.
The position marked with "0" corresponds to the lower left corner of the glass plate, seen
from the user's normal position.
Page 46

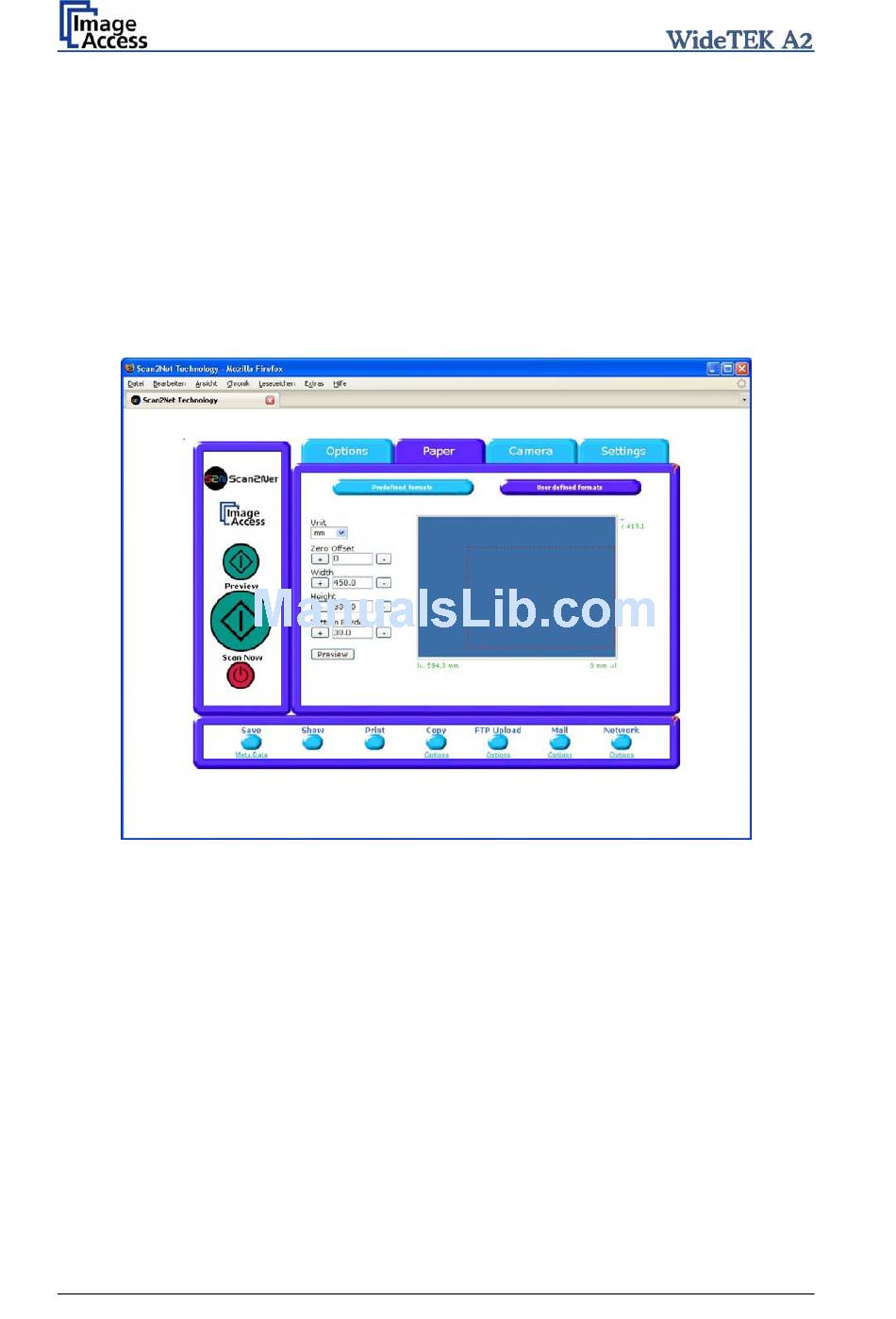

Picture 42: Setting the user defined format
