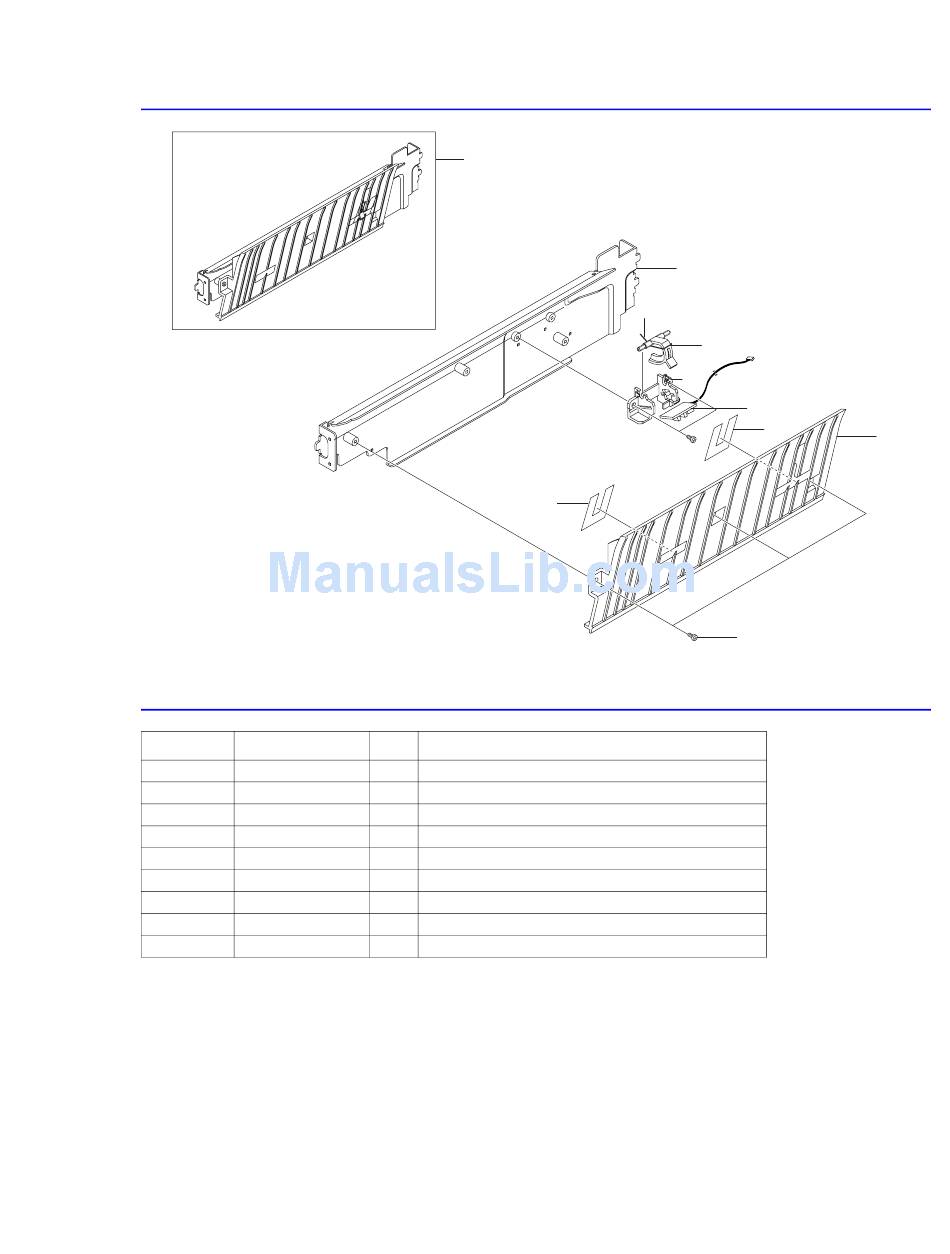

9.20 Paper Guide Assembly

Paper Guide Assembly 9.20
No. Part number
0
1 116-1901-00
2 116-1902-00
3 116-1903-00
4
5 116-1952-00
6 116-1953-00
7
S9 P/O Screw Kit
0
5
Qty Part Name and (part description)
1 Paper Guide
1 Feed Sensor Cover
1 Feed Sensor
1 Feed Sensor Actuator
1 Paper Guide Bracket
2 Sheet - Paper Guide
1 Guide Paper Path
1 Actuator Spring
5 Screw-Taptite
4
7
3
1
2
5
S9
Service Manual 9-41
Parts List
