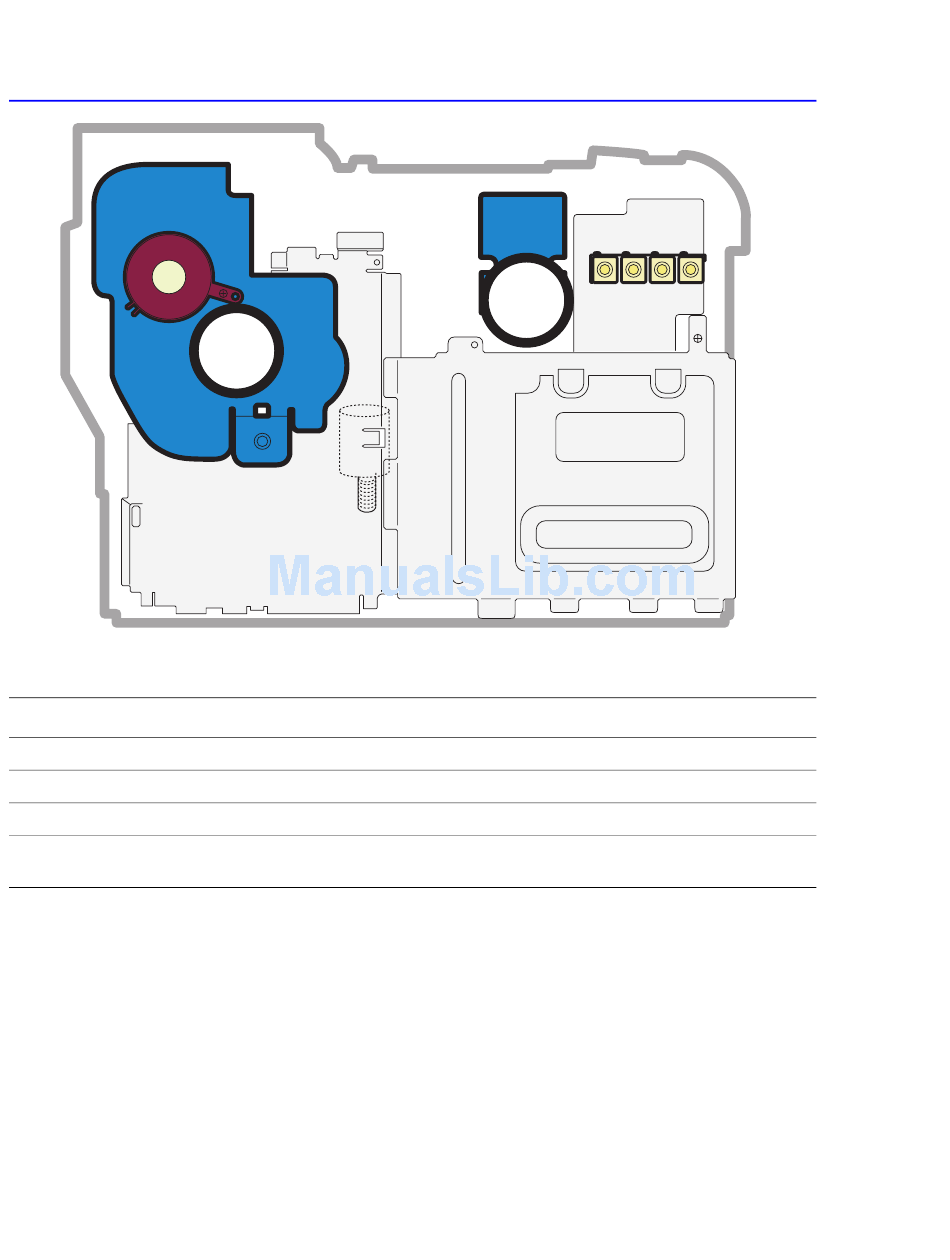

4.1.2 Motor and Fan Layout

1. Main Motor 1. Main Motor 1. Main Motor
3. Fuser Fan 3. Fuser Fan 3. Fuser Fan
No. Name
1. Main Motor
2. DEVE Motor
3. Fuser Fan
4. Waste Toner Motor
4-6
2. DEVE Motor 2. DEVE Motor 2. DEVE Motor
4. Waste Toner Motor 4. Waste Toner Motor 4. Waste Toner Motor
Drives the imaging unit, transfer belt, feed, fuser, exit and duplex unit.
Drives the toner cartridges and transfer belt cleaning cam.
Cools the fuser.
Transfer collected waste toner from the imaging unit and transfer belt
to the waste toner cartridge.
Description
