Erase Lamp (Pl 9.13.12) - Xerox Phaser 6100 Service Manual

Disassembly

6.4.14 Erase Lamp (PL 9.13.12)

1. Remove all the consumables (6.3.3)
2. Remove the front cover and top cover (6.4.1)
3. Remove the waster toner cartridge (o 6.4.18)
4.
Open the DEVE cover (Door A) and the exit cover (Door B).
5.
Remove 2 screws (4*10 silver) from the laser unit cover and 2 clips located next to the DEVE cover hinge.
6. Remove the laser unit cover.
Screw
7. Remove the waste auger tube.

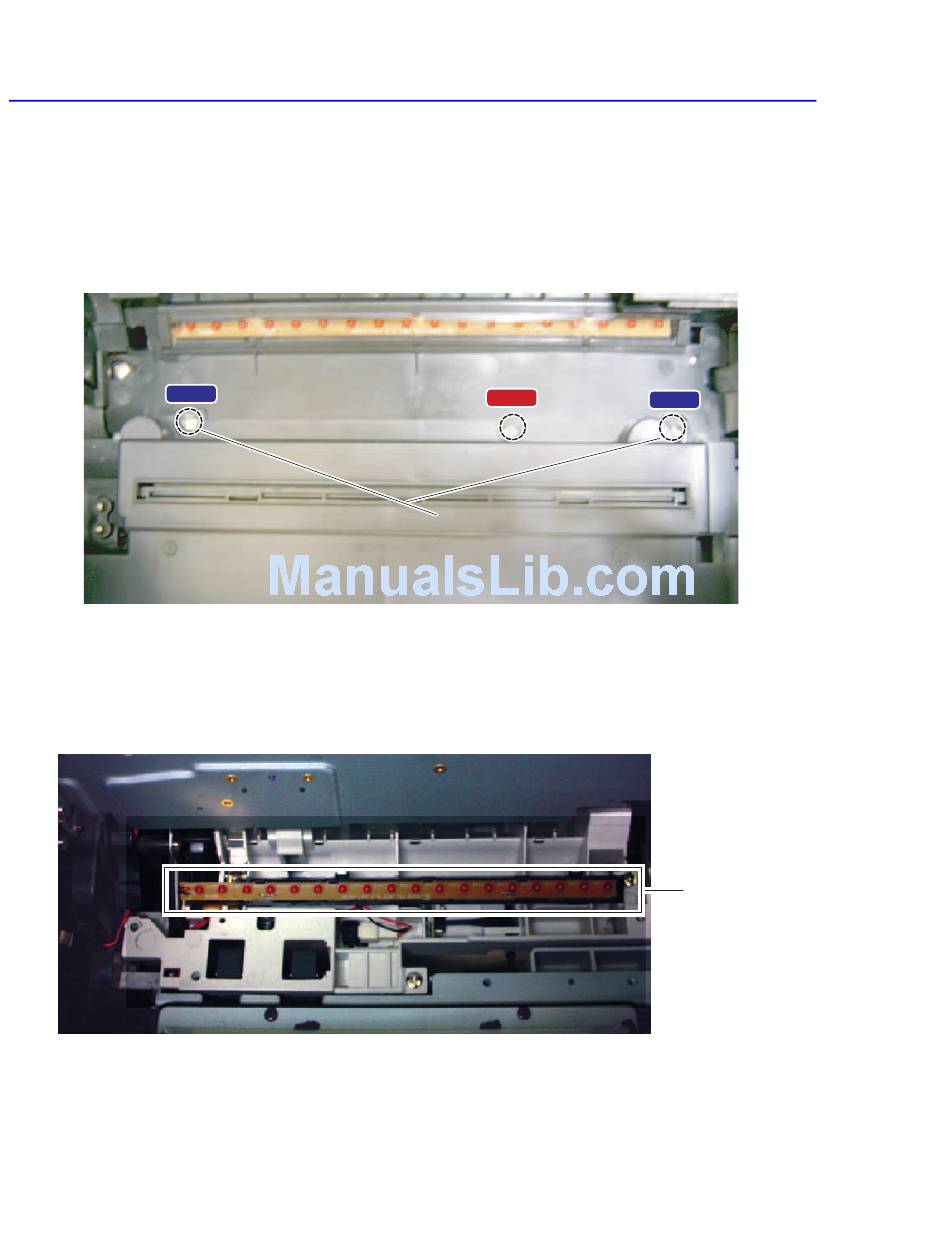

8. Remove 1 screw (4*10 silver) and then remove the lamp cover.
9.
Remove the 2 clips and lift the eraser lamp assembly, and disconnect the harness and then remove the erase lamp.
6-34
Screw
B B
A A
(B)
(A)
Screw
Erase Lamp
