6.4.27 Feed Sensor (PL 9.20.2)

1. Remove the Waste Toner Assembly. (6.4.18)
2. Open Door C and protect the transfer roller.
3. Unscrew the links from the door and lay the door down flat for more clearance.

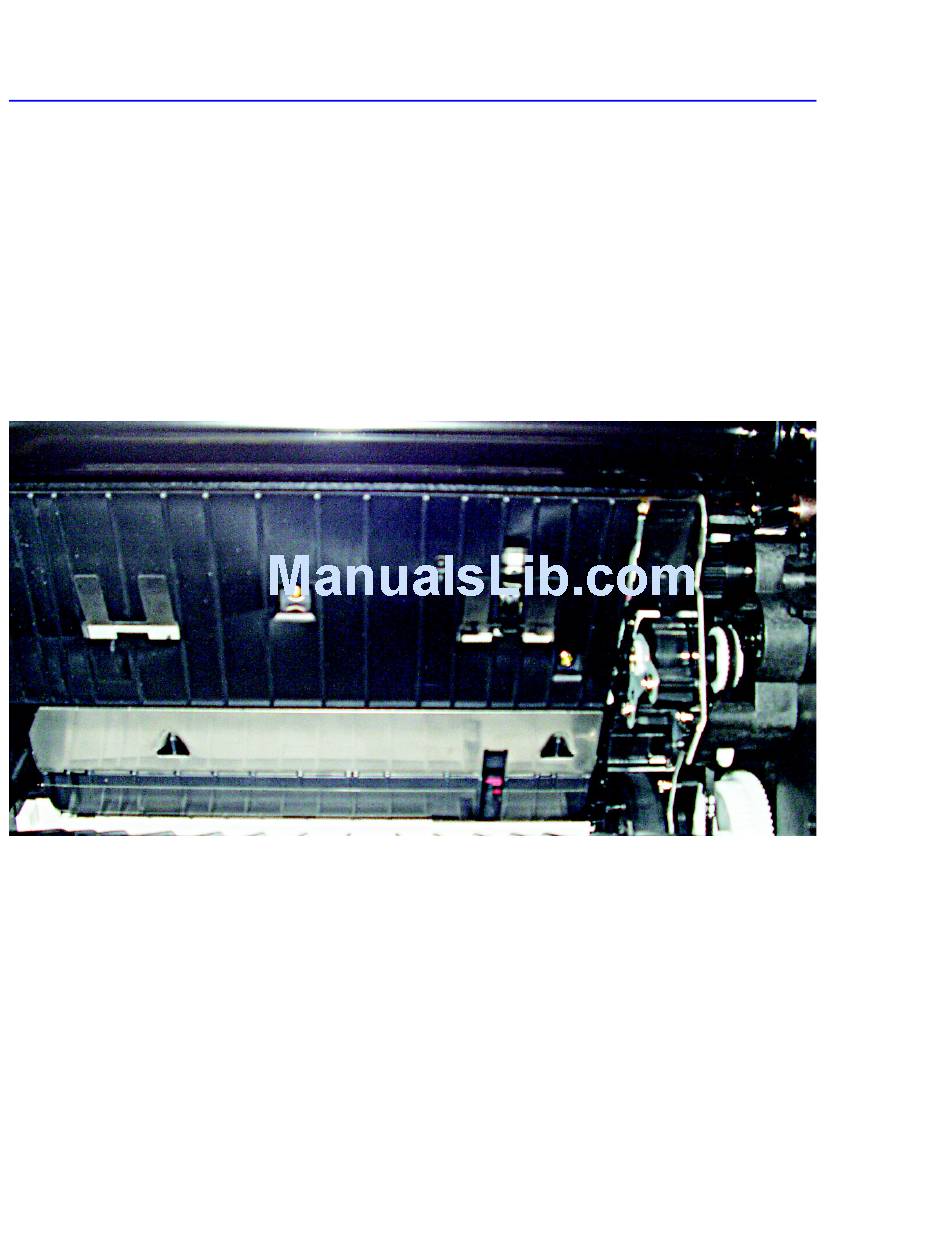

4. Remove 3 screws (type) from the inner paper path cover and remove it.
5.
Remove the 2 screws (type) securing the sensor housing to the printer and remoe the housing.
6.
Remove the 2 screws (type) securing the laser cover and slide it out of the way.
7. Remove the single screw and the erase lamp cover.
8. Disconnect CN33 wiring harness from the main board and free the harness.
9. Remove the tape securing the wiring to the metal chassis frame.
10. Free the wiring through the middle of the printer.
11. Remove the sensor.
>> On re-assembly:
Caution
Pay attention to the wire routing. Be careful not to damage the wire, and be sure to tape the wiring
back in place so that it cannot get damaged by the feed rollers. Make sure the plastic paper guide
is behind the metal plate during reassembly.
