Disassembly
4.

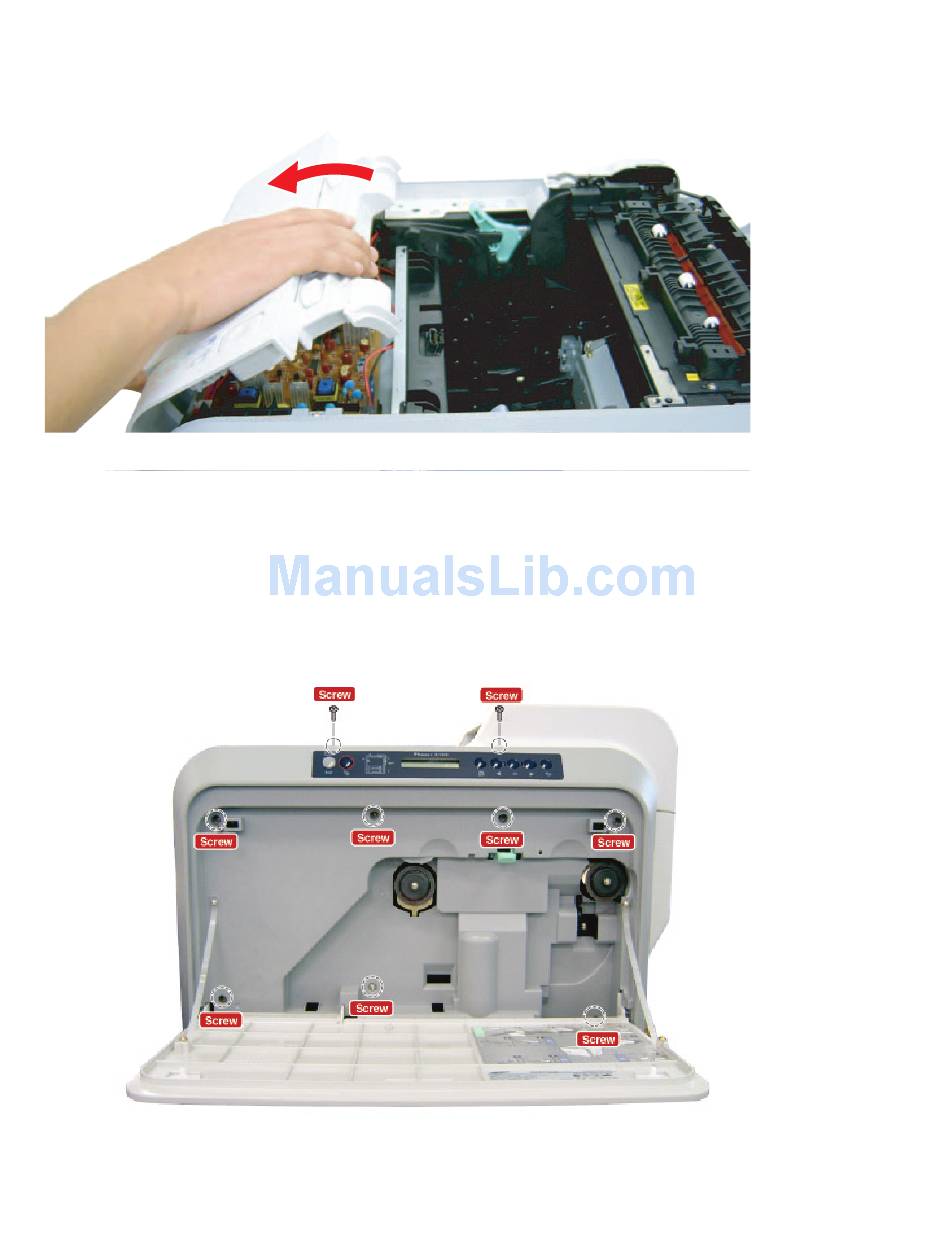

Rotate the top cover, towards Door A, to release it from the two tabs at the base of the cover and remove as
shown.
5.
Open the front cover.
6.
Remove 7 screws (3-10 silver) located inside the front cover.
Note
To access the bottom, right front screw, tray 1 needs to be removed from the printer.
7.
Remove 2 screws (3-10 silver) located on the top of the front cover.
6-12
