6.4.7a Low-Voltage Power Supply - LVPS/SMPS (PL 9.1.19)
1.
Remove the rear cover (6.4.3)
2.

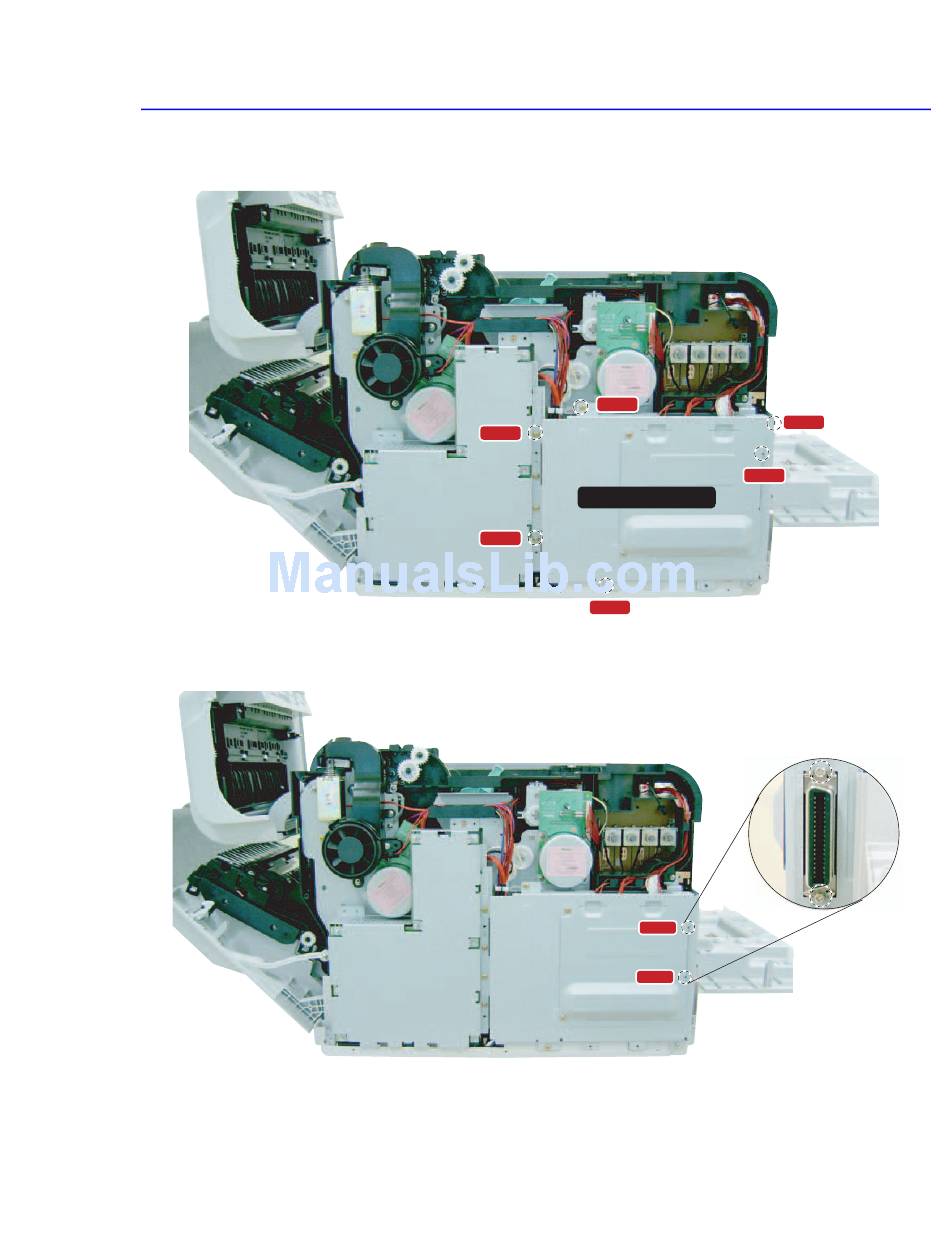

Remove 5 screws (3-6 machine, gold) from the main board shield.
3.
Remove 2 screws (3-10 machine, silver) connected to the parallel port and then remove the main board shield.
Screw
Screw
Main PBA Bracket
Screw
Screw
Screw
Screw
Disassembly
Screw
Screw
Service Manual 6-21
