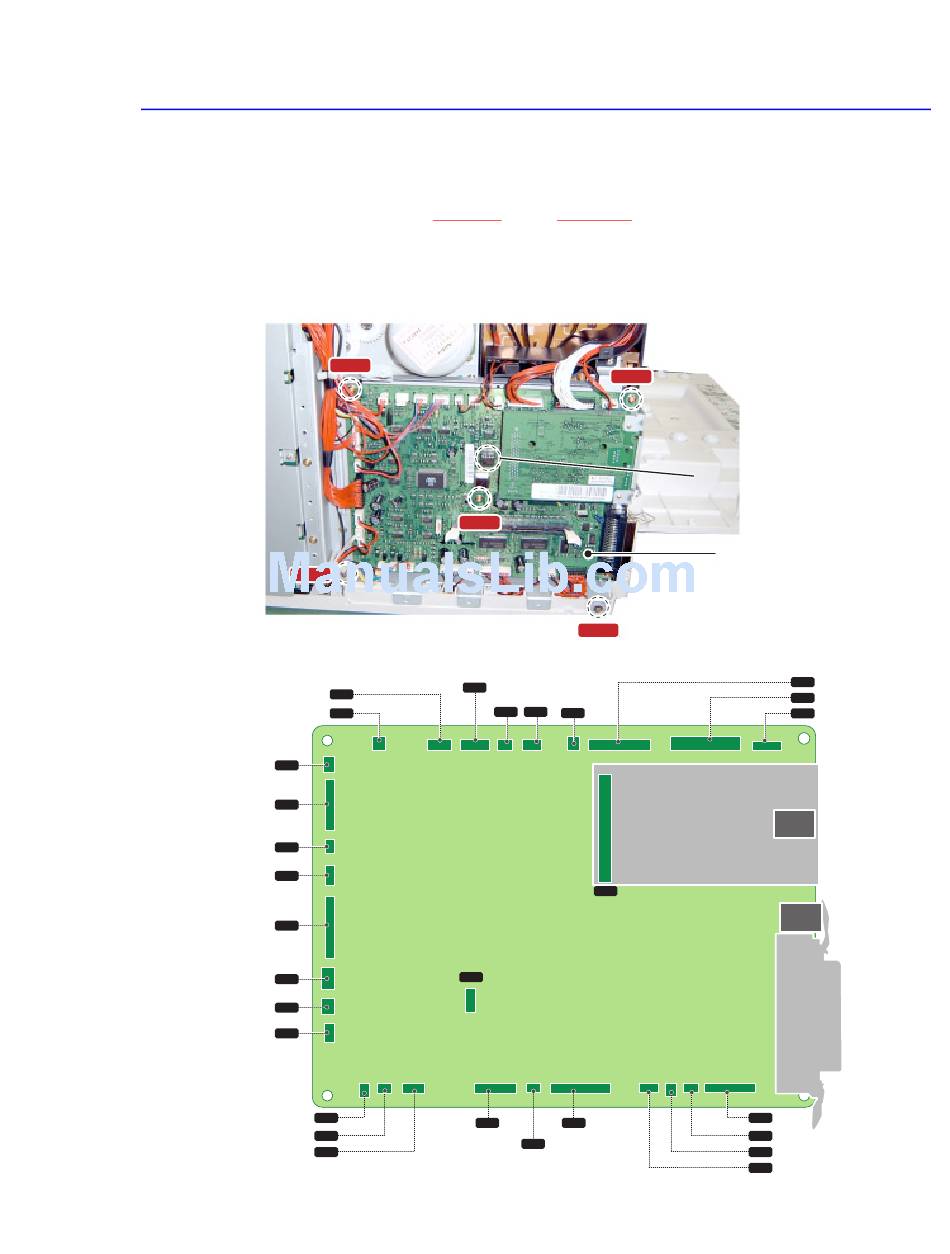

6.4.7b Main Controller Board (PL 9.1.10)
1.
Perform steps 1 and 2 from procedure 6.4.7a.
Warning
Move the NVRAM Chip from the old board TO the new board. Failure to perform this step will result in
the loss of important customer information, like page count and consumable life usage information.
2.
Disconnect all harness connected to the main board.
3.
Remove 5 screws (3*6 machine screw, gold) and then remove the main board.
Screw
EXIT
DUPLEX
T2 HOME
CN26
BLDC1
CN27
FSR_ROLL
CN28
FUSER_FAN
CN29
SMPS
CN30
MP EMPT
CN30
MP SOL
CN32
FEED
CN33
PICK_UP
CN25
CLT_FEED
CN23
EMPT
CN21
Screw
Screw
CN17
WASTE TONER
CN19
TH3
CN15
CN24
CN1
For Test
CN16
SCF
Screw
NVRam Chip
Screw
TH4
PTL
CN13
CN11
NIC
CN9
CN12
LSU
CN6
OPC KEY
Disassembly
Main
Board
CN10
ITB
CN7
HVPS
CN4
PANEL
NPC
USB
Parallel Port
CN5
DEVE_DRIVER
DEVE_DRIVER
LSU SW
CN14
ERASER
CN8
LSU_FAN
CN35
Service Manual 6-23
