6.4.18a Waste Toner Cartridge Full Sensor (PL 9.14.1)
1. Remove the Front Cover and the Top Cover. (6.4.1)
2.
Remove the Rear Cover. (6.4.3)
3. Remove the Fuser and Fuser Cover Base. (6.4.5 and 6.4.5.1)
4.
Remove the LVPS. (6.4.7)
5. Remove the Main Drive Assembly. (6.4.9)
6. Disconnect the harness CN17 from the main board.
7.

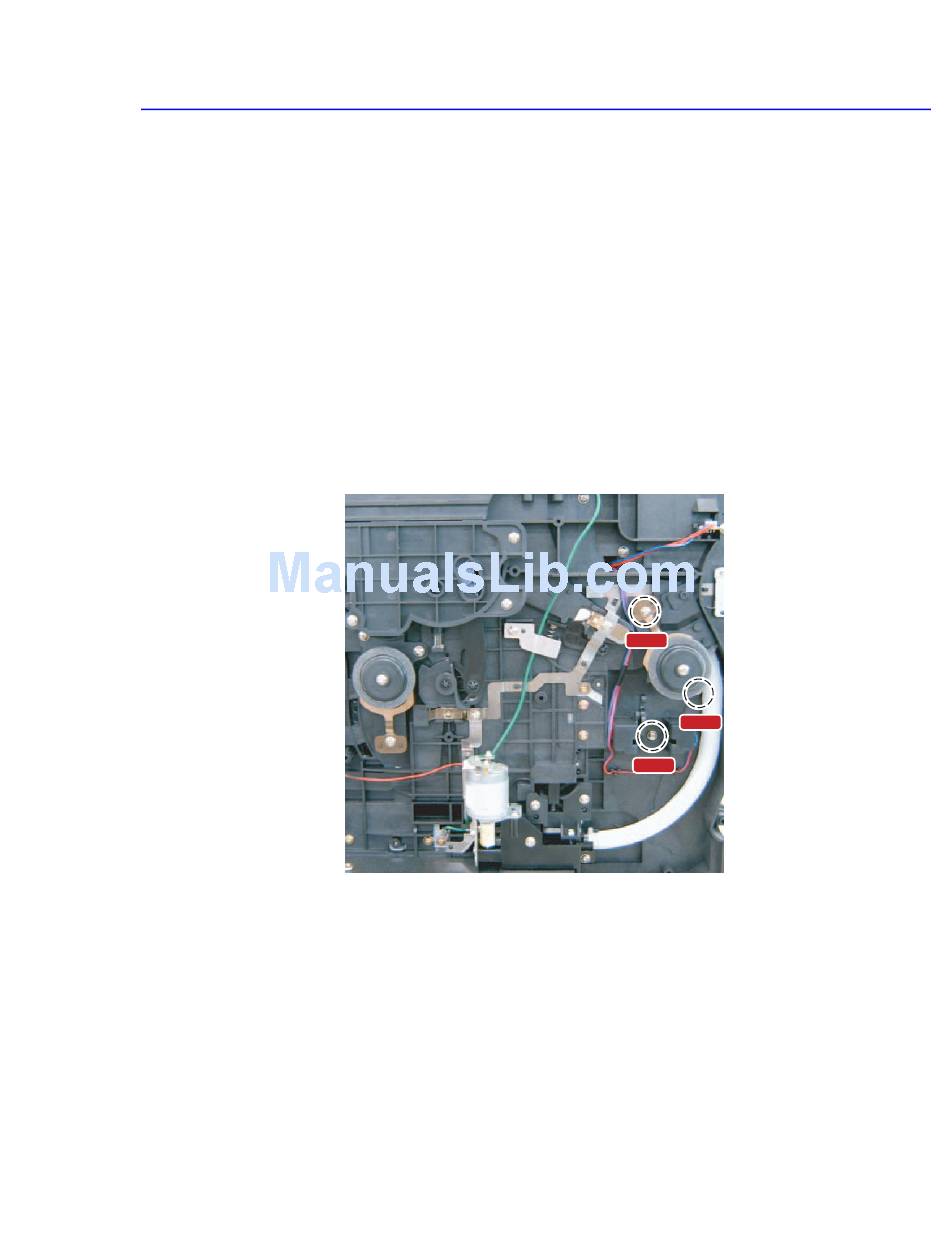

Remove 2 screws (3*10 silver) from the waste toner assembly and rotate the waste auger tube away from the
printer (towards you), but do not disconnect it.
Caution
Be careful not to spill waste toner. Pay attention to the position of the foam gasket, as it can be
easily damaged.
8. Route the wiring harness through the channel to free it from the chassis.
9. Remove 1 screw (3*10 Silver) from the toner waste cartridge full sensor.
Note
Note the orientation of the sensor for reassembly.
10.
Release the sensor assembly from the tabs to remove the sensor.
>> On re-assembly:
1. When re-securing the waste auger, ensure proper alignment of the foam gasket.
Caution
Be careful no to pinch or damage the wiring when reinstalling the main drive assembly.
Screw
Screw
Screw
