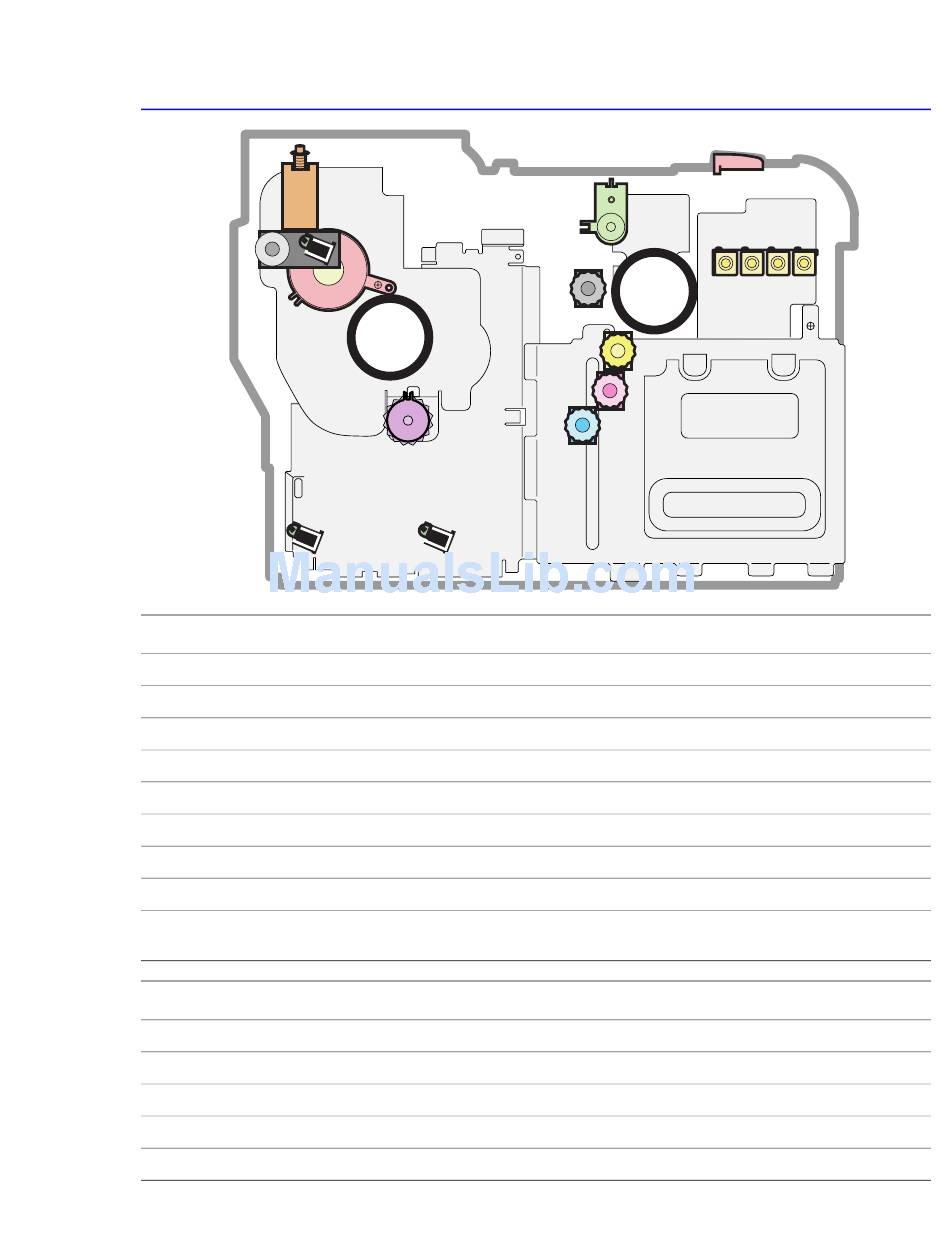

4.1.3 Clutch and Solenoid Layout

Duplex Solenoid
Transfer Belt Transfer Belt
Home Solenoid Home Solenoid
MPT Pick_up MP Pick_up
Solenoid Solenoid
No. Solenoid Name
1. Y DEVE solenoid
2. M DEVE solenoid
3. C DEVE solenoid
4. K DEVE solenoid
5. Pickup solenoid
6. MPT pick solenoid
7. Duplex solenoid
8. Transfer belt home solenoid
9. Transfer belt cleaning solenoid
(cam)
No. Clutch Name
1. Y DEVE clutch
2. M DEVE clutch
3. C DEVE clutch
4. K DEVE clutch
5. Feed Clutch
Transfer Belt
Cleaning
Solenoid
Black Deve Black Deve
Clutch Clutch
Feed Regi
Clutch
Pick_up Solenoid
Controls high voltage to the yellow toner cartridge.
Controls high voltage to the magenta toner cartridge.
Controls high voltage to the cyan toner cartridge.
Controls high voltage to the black toner cartridge.
Controls drive to the pickup roller.
Controls drive to the MPT pick roller.
Reverses rotation of the main motor during duplexing
Engages and disengages the transfer roller from the transfer belt.
Operates the transfer belt cleaning blade.
Controls the yellow toner cartridge drive.
Controls the magenta toner cartridge drive.
Controls the cyan toner cartridge drive.
Controls the black toner cartridge drive.
Controls registration of the paper pick.
Summary of Product
Cartridge Solenoid(C, K, Y, M) Cartridge Solenoid(C, M, Y, K)
Yellow Deve Clutch Yellow Deve Clutch
Magenta Deve Clutch Magenta Deve Clutch
Cyan Deve Clutch Cyan Deve Clutch
Description
Description
Service Manual 4-7
