UV Effect Mode Options

These Object and Global effects map the media file to an YUV color space. This makes it easier to
isolate a specific feature in an image such as an individual flower in a landscape.

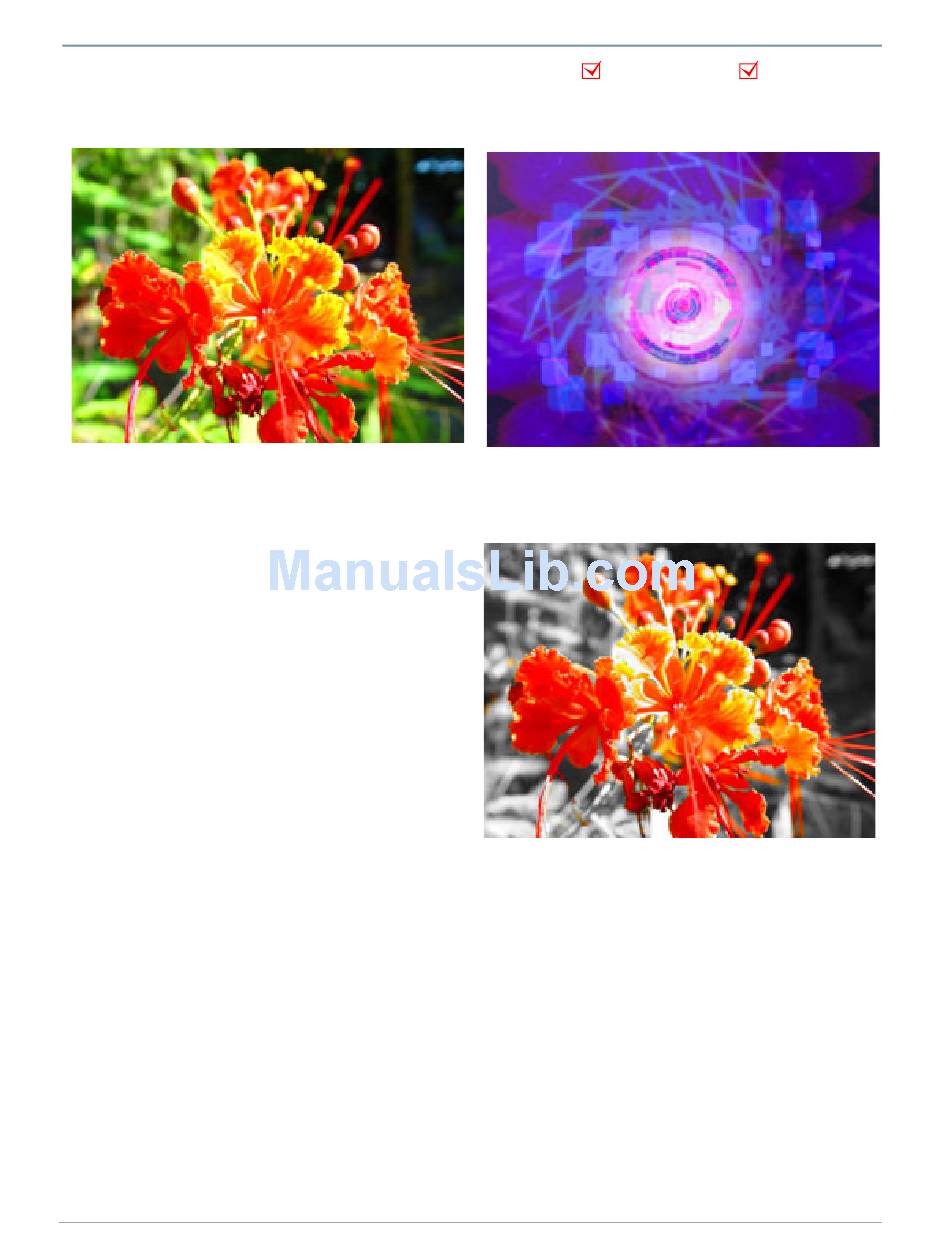

Graphic Object 1 Content

UV to Gray

Effect Mode parameter DMX value = 84
Maps a selected color coordinate to a YUV color
space and turns everything else gray.
Modifier 1: Adjusts the U color component from
0 = no adjustment to 255 (100%) = maximum.
Modifier 2: Adjusts the V color component from
0 = no adjustment to 255 (100%) = maximum.
Modifier 3: Adjusts the color tolerance from 0 =
minimum to 255 (100%) = maximum.
152
Object Effect
Graphic Object 2 Background Content
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 229
Modifier 3 parameter DMX = 101
