CHAPTER 13
Effect Mode Options Descriptions

HS Effect Mode Options

These Object and Global effects map the media file to an HSI color space. This makes it easier to
isolate a specific feature in an image such as an individual flower in a landscape.
Object 1 Content

HS to Gray

Effect Mode parameter DMX value = 87
This effect Maps a selected color coordinate to an
HSI color space and turns everything else gray.
Modifier 1: Adjusts the Hue color component
from 0 = no adjustment to 255 (100%) =
maximum hue.
Modifier 2: Adjusts the Saturation color
component from 0 = no adjustment to 255
(100%) = maximum saturation.
Modifier 3: Adjusts the color tolerance from 0 =
minimum to 255 (100%) = maximum.
128

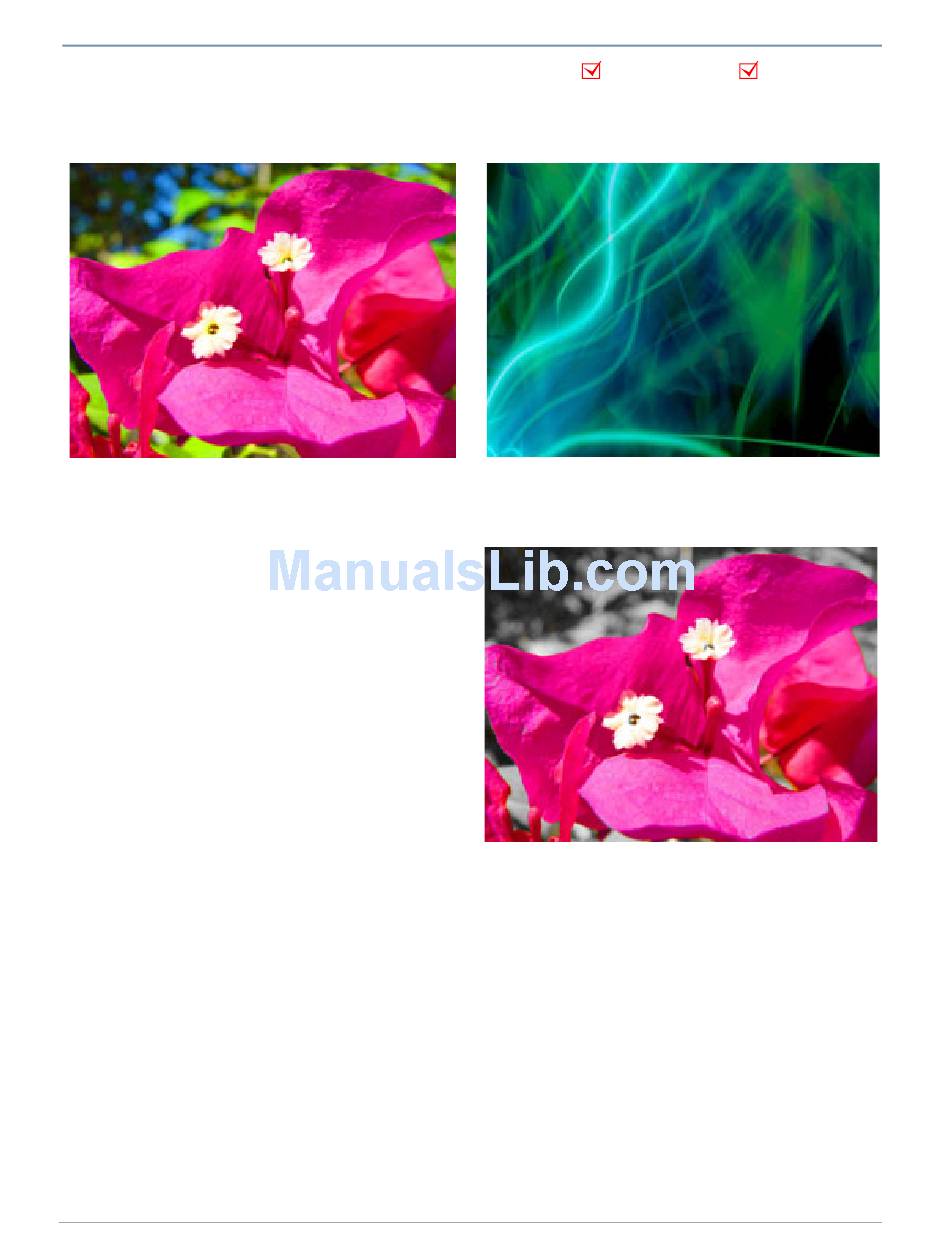

Object Effect
Object 2 Background Content
Effect Mode parameter = 87
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 0
Modifier 3 parameter DMX = 222
DLHD Digital Light User Manual
Global Effect
