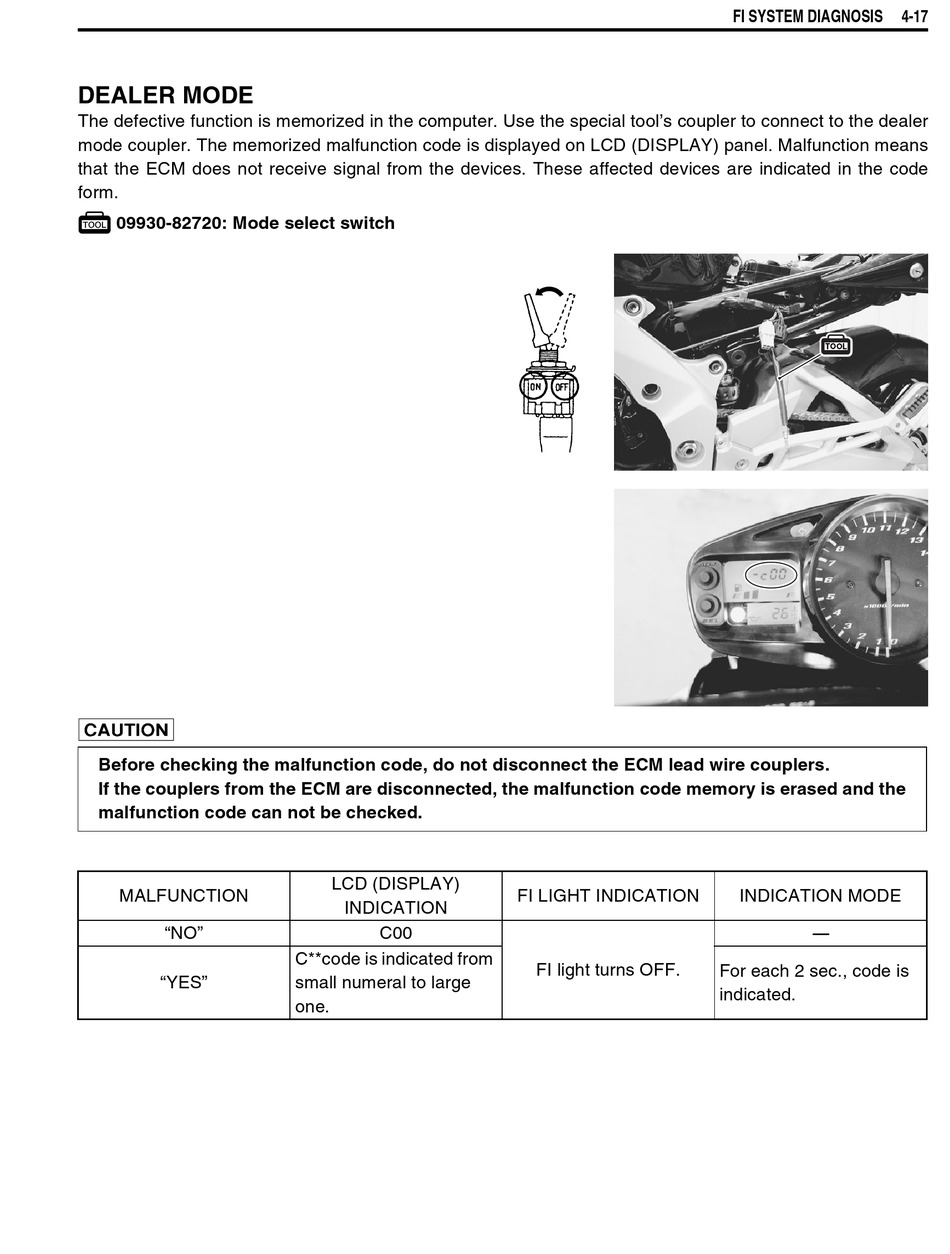

DEALER MODE

The defective function is memorized in the computer. Use the special tool's coupler to connect to the dealer
mode coupler. The memorized malfunction code is displayed on LCD (DISPLAY) panel. Malfunction means
that the ECM does not receive signal from the devices. These affected devices are indicated in the code
form.
 09930-82720: Mode select switch

Before checking the malfunction code, do not disconnect the ECM lead wire couplers.
If the couplers from the ECM are disconnected, the malfunction code memory is erased and the
malfunction code can not be checked.
MALFUNCTION
"NO"
"YES"
LCD (DISPLAY)
INDICATION
C00
C**code is indicated from
small numeral to large
one.
FI LIGHT INDICATION
FI light turns OFF.
FI SYSTEM DIAGNOSIS
INDICATION MODE
----
For each 2 sec., code is
indicated.
4-17
