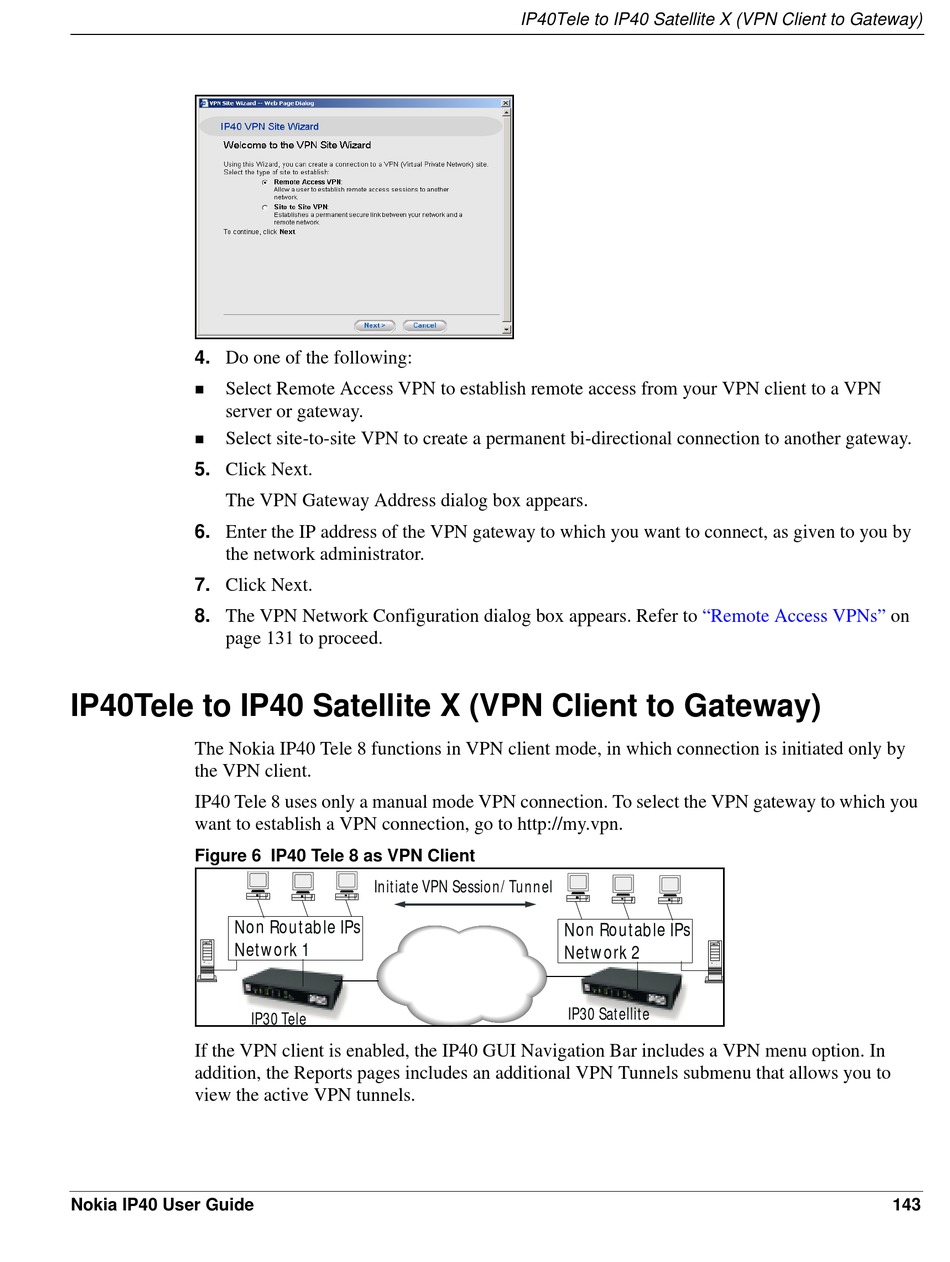

Ip40Tele To Ip40 Satellite X (Vpn Client To Gateway) - Nokia IP40 User Manual

4. Do one of the following:
Select Remote Access VPN to establish remote access from your VPN client to a VPN
!
server or gateway.
Select site-to-site VPN to create a permanent bi-directional connection to another gateway.
!
5. Click Next.
The VPN Gateway Address dialog box appears.
6. Enter the IP address of the VPN gateway to which you want to connect, as given to you by
the network administrator.
7. Click Next.
8. The VPN Network Configuration dialog box appears. Refer to
page 131 to proceed.

IP40Tele to IP40 Satellite X (VPN Client to Gateway)

The Nokia IP40 Tele 8 functions in VPN client mode, in which connection is initiated only by
the VPN client.
IP40 Tele 8 uses only a manual mode VPN connection. To select the VPN gateway to which you
want to establish a VPN connection, go to http://my.vpn.
Figure 6 IP40 Tele 8 as VPN Client
Non Routable IPs
Network 1
If the VPN client is enabled, the IP40 GUI Navigation Bar includes a VPN menu option. In
addition, the Reports pages includes an additional VPN Tunnels submenu that allows you to
view the active VPN tunnels.
Nokia IP40 User Guide
Initiate VPN Session/ Tunnel
IP30 Tele
IP40Tele to IP40 Satellite X (VPN Client to Gateway)
Non Routable IPs
Network 2
IP30 Satellite
"Remote Access VPNs" on
143
