Chapter 2 Menu Configuration
With Match Code enabled, a master label can be entered in three ways:
1. With New Master Pin enabled (see
ground (pin 7) enables the next good read to be the master label.
2. Sending serial command <G> enables the next good read to be the
master label.
3. Sending serial command <)XXXX)> downloads data as master
label. (Master label data is entered in place of the Xs.)
Figure 2-4 shows the sequence of operation (and reference) for setting
up and entering master labels.
Enable Match Code:
1. by menu selection,
2. by operational command
<E>, or
3. by serial configuration
command <Kn1>.
2-20
MS-3000 Single Head Decoder User's Manual
page 2-31), toggling pin 25 to
* See the option/outputs available in the relay
driver you have selected.
Enable New Master Pin:
1. by menu selection, or
2. by serial configuration
command <Kz1>.
Enter the next label scanned
as the master label:
1. by operational command <G>.
Download a new master
label directly into memory:
1. by operational command
<)XXXX)>.

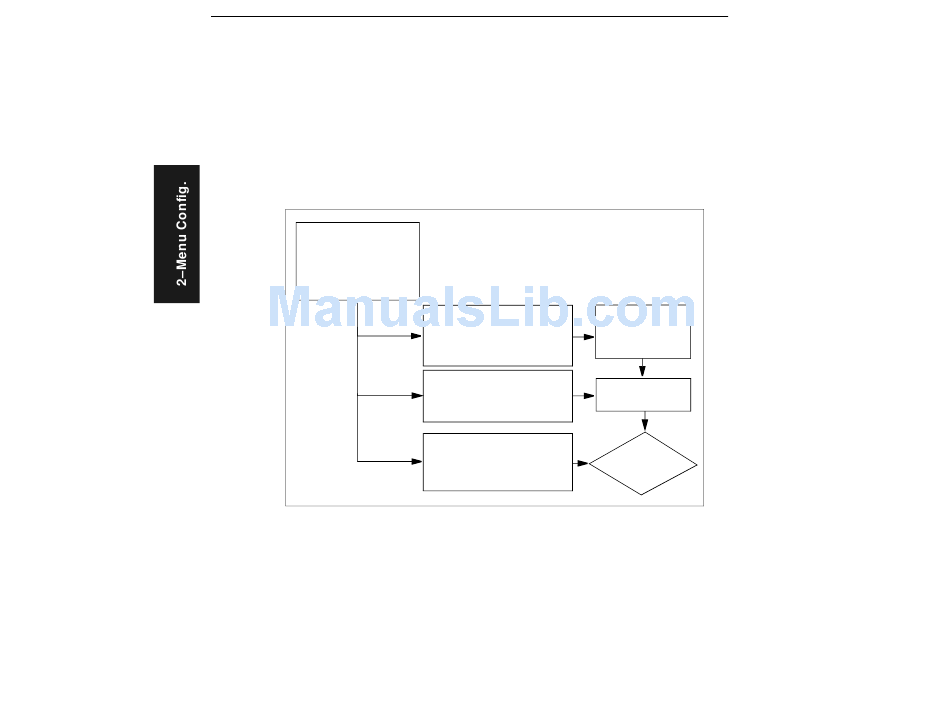

Figure 2-4 Match Code Logic Diagram
Toggle internal pin 25
to GND (pin 7) to
enter next label
scanned as the
Read in the
master label.
Compare the
master label with
subsequent labels*
