1
H O ST
25

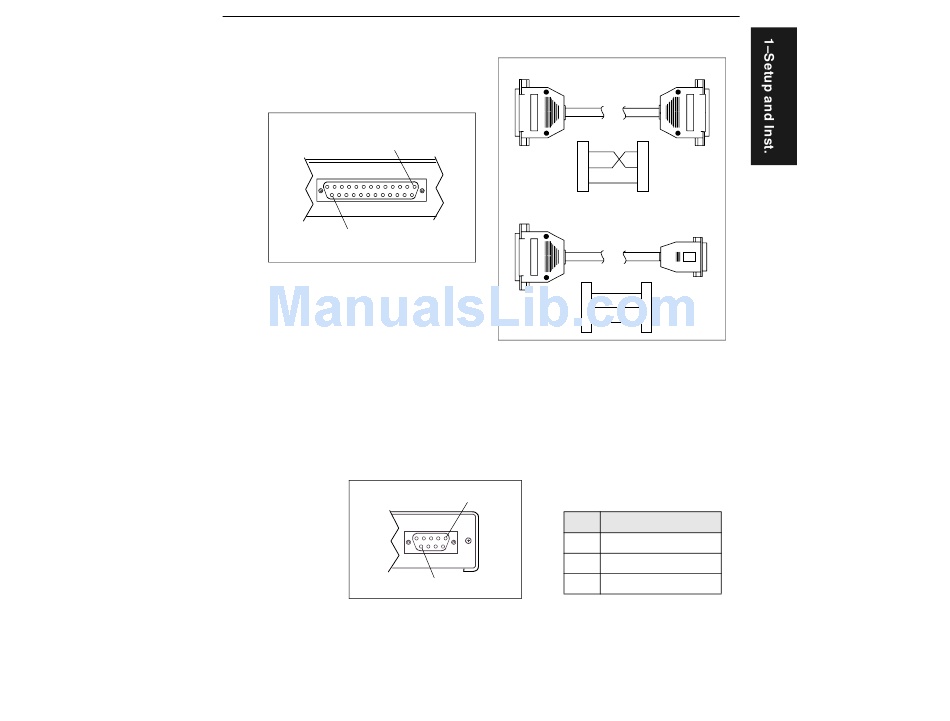

Figure 1-9 Host Connector

Monitor Connector
The monitor connector (auxiliary terminal) connects the decoder to an auxil-
iary monitor via a 9-pin D-subminiature socket and cable.
auxiliary terminal pin assignments. Communication at this connector is
RS-232 only.
1
M O N ITO R
9

Figure 1-11 Monitor Connector

MS-3000 Single Head Decoder User's Manual
Attach Cabling
DB-25 DTE to DB-25 DTE Con nection
Decoder Host
Transmit 2
2 Transmit
Receive
3 3 Receive
Signal Grnd 7 7 Signal Grnd
DB-25 DTE to DE-9 DCE Connection
Decoder Host
Transmit
2 2 Receive
Receive
3 3 Transmit
Signal Grnd 7 5 Signal Grnd
Figure 1-10 DTE and DCE Host
Connections
Table 1-6 shows
Table 1-6 Monitor Connector
Pin Assignments
Pin Function
2 Receive Data (in)
3 Transmit Data (out)
5 Signal Ground
1-9
