Figure 1-13 Mounting Diagram (Without Housing, Not Full Size) - Microscan MS-3000 User Manual

If the unit does not have housing, use the measurements provided in
figure 1-13 to locate the centers of the mounting holes.
M e a s u r e m e n t s i n i n c h e s ( m i l l i m e t e r s )
Front
4.5" (114.30)
0.160" (4.06)
Dia. (4 places)
5.2" (132.08)
5.8" (147.32)

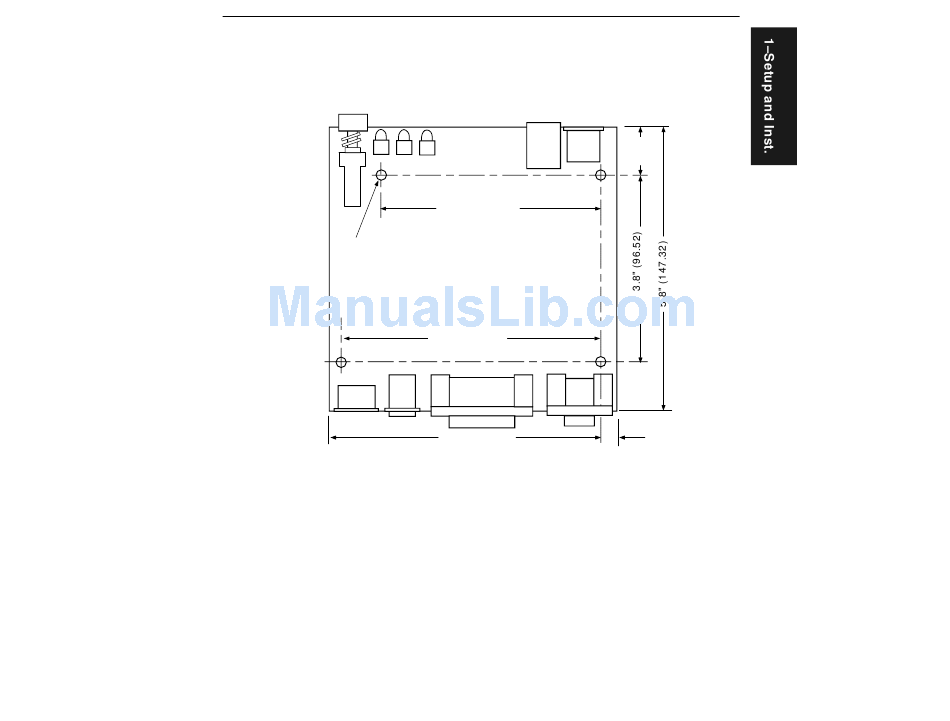

Figure 1-13 Mounting Diagram (without housing, not full size)

MS-3000 Single Head Decoder User's Manual
Install Decoder
1.0"
(25.4)
0.030" (7.62)
1-13
