Chapter 1
Setup and Installation
6
Install Decoder
The MS-3000 decoder can be mounted temporarily using the four rubber
pads, or permanently, as follows:
a. Position the decoder in a dry place.
b. Before mounting, ensure that there is at least a 3 inch (76.2 mm) clear-
ance at the rear and front of the decoder for the connectors and cables
being used.
c. Use the measurements provided in
mounting holes and drill four 5/32 inch or four 4 mm holes.
d. Secure decoder with four 6-32 screws of the appropriate length.
Caution: Make certain that mounting screws do not penetrate into the
decoder case more than .175 in. (4.4 mm) or damage to the decoder could
result.
Measurements in inches (millimeters)
6.2"
(157.48)
0.5"
(12.7)
1-12
MS-3000 Single Head Decoder User's Manual
figure 1-12
Fro nt
Optional foot pads
1.85"
(4 places)
(46.99)
2.5"
(63.5)
6/32 threads
(4 places)
5.6"
(142.24)

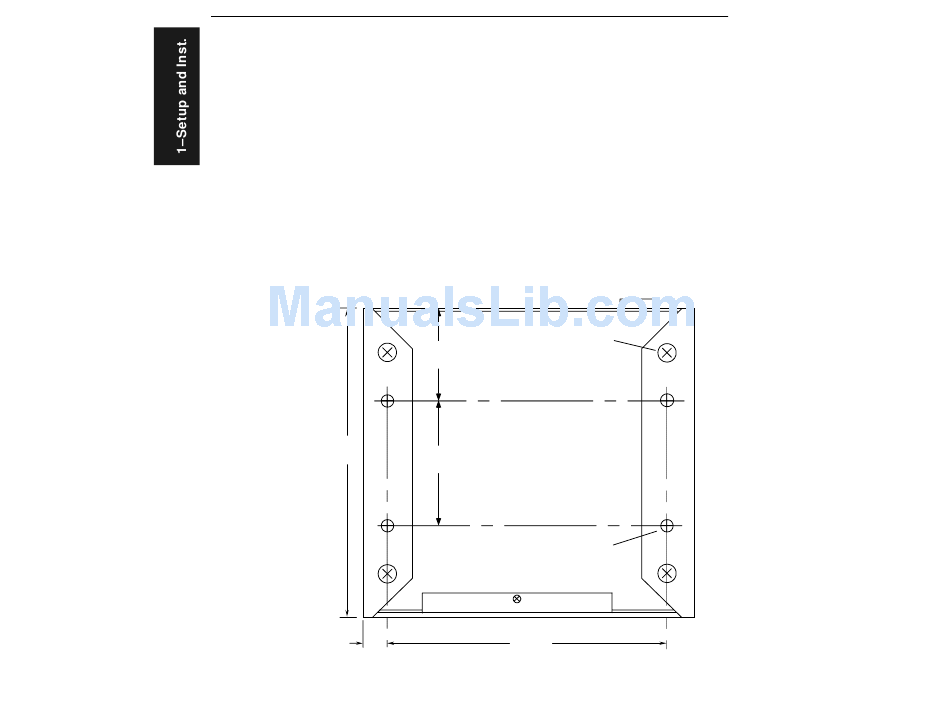

Figure 1-12 Bottom Mounting Diagram (not full size)

to locate centers of
