Microscan MS-3000 User Manual page 30

Chapter 2 Menu Configuration
Saving Menu Changes

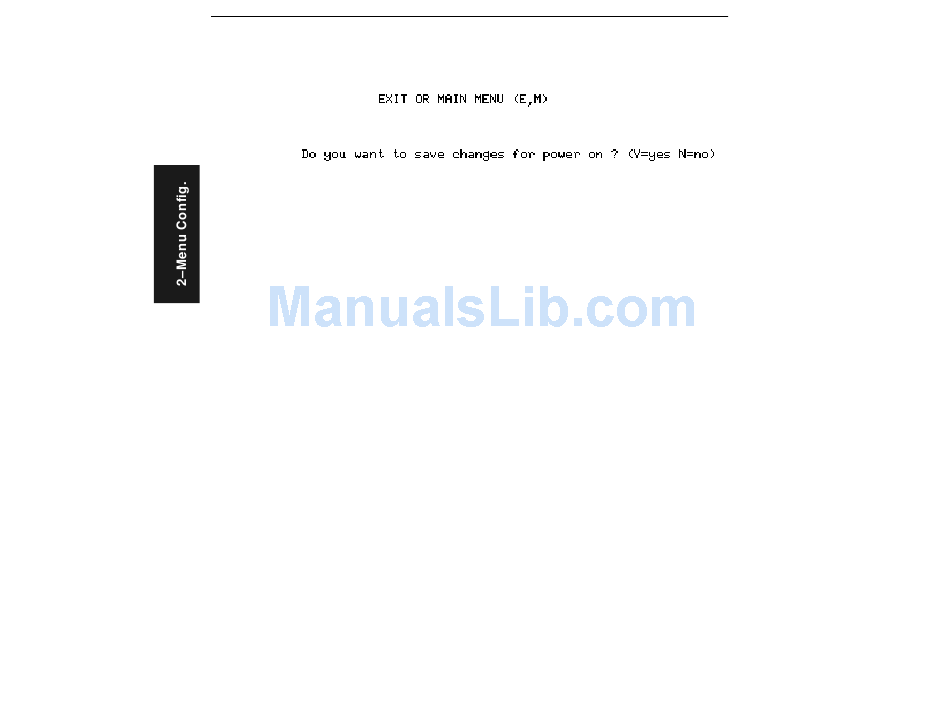

Press ESC (escape key) to see the following on the command line:
Press M to return to the Main menu, or press E to exit the Menu Configura-
tion program. If E is pressed, the following question will appear:
Press N to exit without saving changes, or press Y to retain the current set-
tings to non-volatile RAM for power up. If Y is selected, a beep will indicate
the save has been carried out.
Loss of Communications
Defaulting might be necessary if communications between the decoder and
another device are interrupted or if using incompatible equipment (for
example, a terminal is set to communicate at 9600 baud, but the decoder is
configured at 38.4K baud). Communication can also be lost if an address
has been assigned to the decoder.
To reset parameters to default values, see
Decoder," on page
Defining Special Characters
To define any control character from the ASCII table: Press SP once, then
enter the control character by holding down the control key and simulta-
neously pressing the desired character. For example to define a line feed,
press SP, then Control and J simultaneously. It is displayed as ^J on the
command line and as <LF> in the menu when the screen is refreshed.
To define CR as a character: Press SP, then CR. It is displayed as ^M on
the command line and as <CR> in the menu when the screen is refreshed.
To define a space as a character: Press SP twice. It is displayed as a blank
space in the menu when the screen is refreshed. While it appears that noth-
ing has been assigned, the hex value 20 will be sent during data transmis-
sion.
To select NUL as the character: Press SP, then a 0 (zero). It is displayed as
<NUL> in the menu when the screen is refreshed.
2-4
MS-3000 Single Head Decoder User's Manual
Appendix C, "Defaulting the
A-4.
